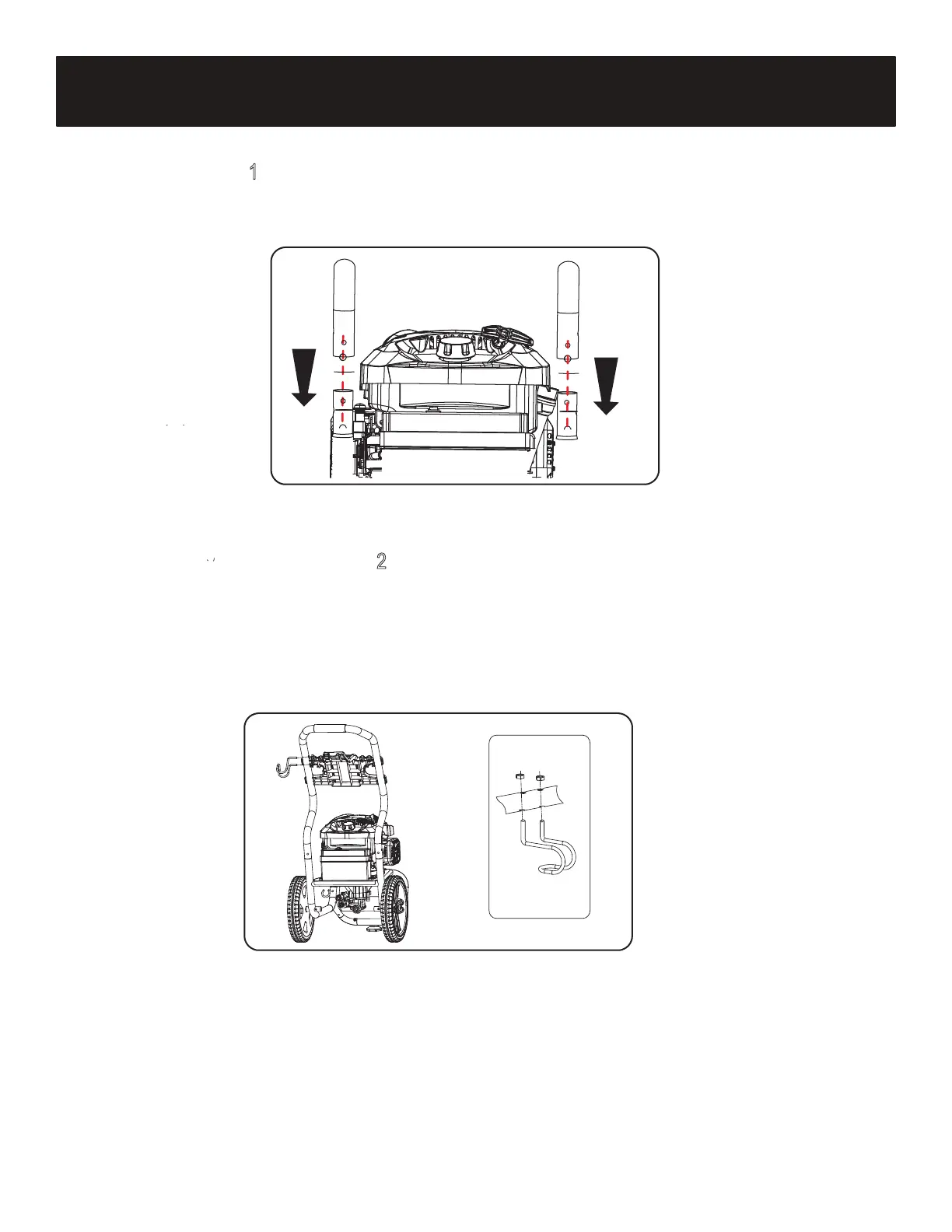

Install Handle (See fig 1)
•
Install upper frame (handle) onto the lower frame by sliding the handle over the two upright tubes on the lower frame
and pressing down firmly until the handle is seated and the two detent pins snap in place.
FIG 1
Attaching Upper Gun Hooks (See fig 2)
•
Attach the upper gun hook. Align the upper gun hook with the holes, install two plastic rivets, until the plastic rivets are
snug, press hard with your finger to lock the rivet，then install the M6 screw & lock nut, tighten until the nut is
snug, do not over tighten.
FIG 2
