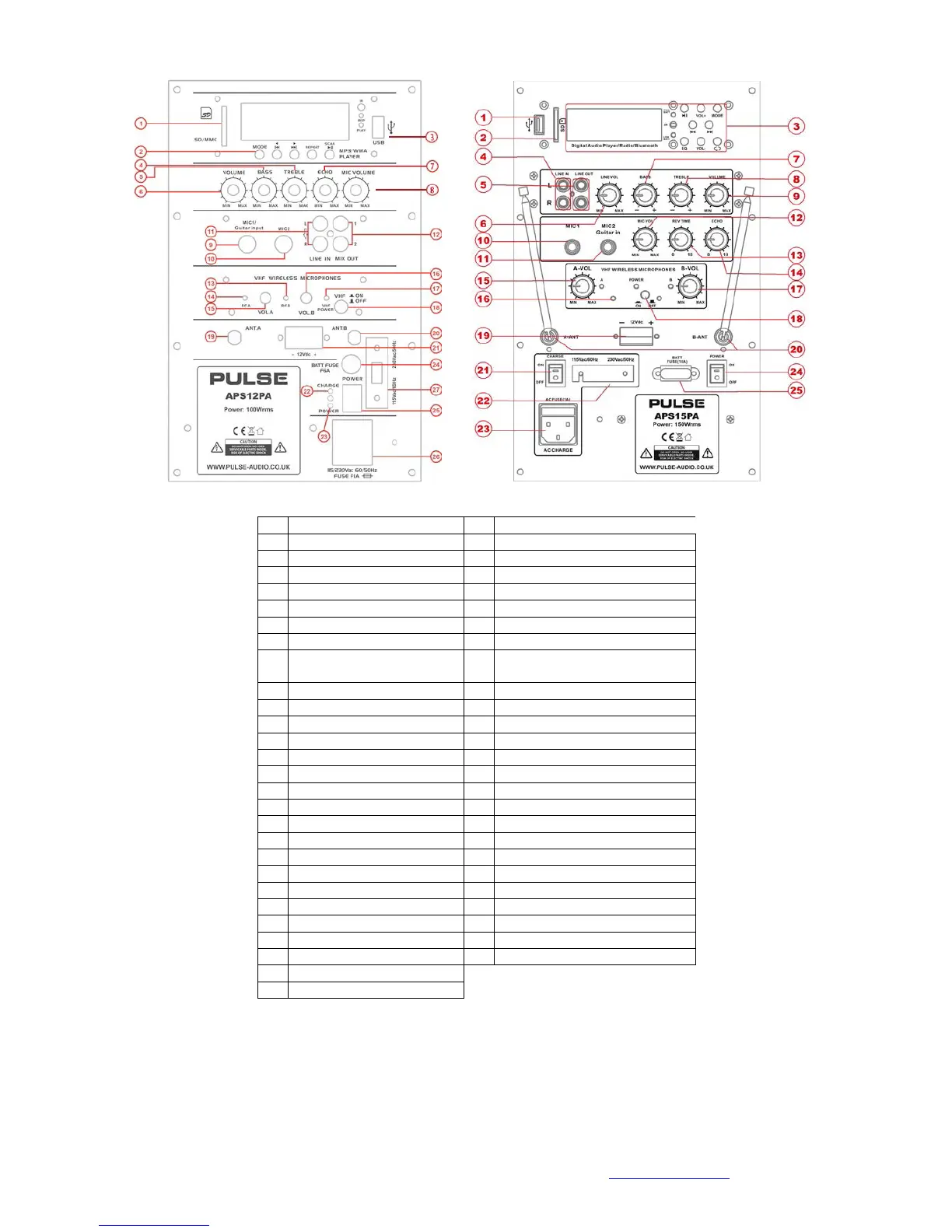

Controls
APS12PA APS15PA
1 SD/MMC card slot 1 USB port
2 USB/SD/FM player 2 SD card slot
3 USB port 3 USB/SD/FM player
4 Treble EQ control 4 Line input (RCA
5 Bass EQ control 5 Line output (RCA)
6 Master volume control 6 Line control
7 Echo EQ control 7 Bass EQ control
8
Wireless mic volume
control
8 Treble EQ control
9 Mic 1 input (jack) 9 Master Volume
10 Mic 2 input (jack) 10 Mic 1 Input (Jack)
11 Line input (RCA) 11 Mic 2 Input (Jack)
12 Line output (RCA) 12 Mic In Volume
13 VHF RF indicator 13 Delay time control
14 VHF RF indicator 14 Echo level control
15 VHF A volume control 15 Wireless mic volume
16 VHF B volume control 16 VHF RF indicators
17 VHF power indicator 17 Wireless mic volume
18 VHF power switch 18 VHF on/off
19 Antenna socket 19 DC power input
20 Antenna socket 20 Antenna socket
21 DC power input 21 Battery charge switch
22 Battery charge indicator 22 Mains voltage selector
23 Power indicator 23 Mains inlet and fuse
24 Battery fuse socket 24 Power switch
25 Power switch 25 Battery fuse socket
26 Mains inlet and fuse
27 Mains voltage selector
