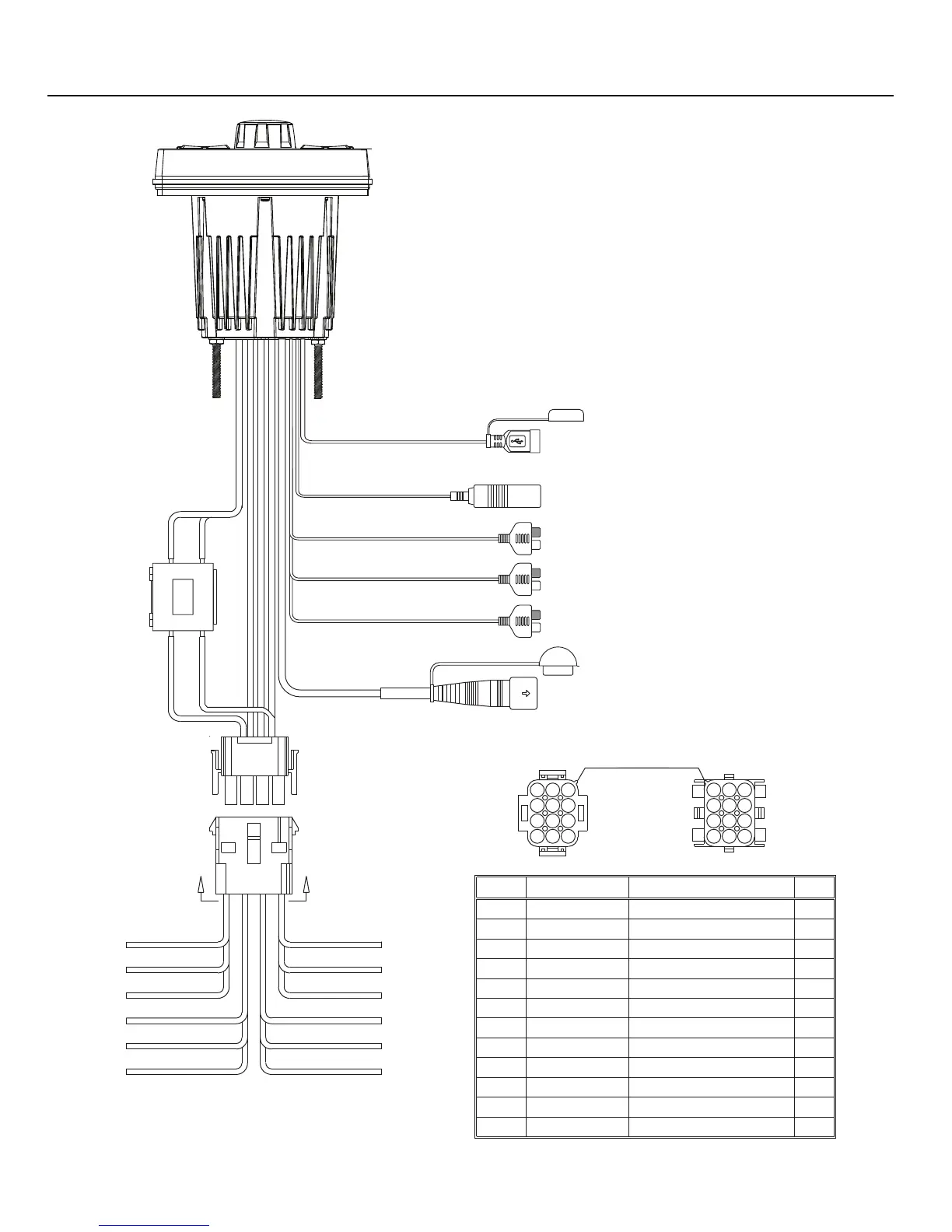

Wiring Diagram
USB
RADIO ANTENNA
WIRED REMOTE
BLACK
BLACK
BLACK
GREY
RED
BLACK
RED (REAR LINE OUT RIGHT OR SUB-W OUT)
WHITE (REAR LINE OUT LEFT OR SUB-W OUT)
RED (FRONT LINE OUT RIGHT)
WHITE (FRONT LINE OUT LEFT)
RED (AUX IN RIGHT)
WHITE (AUX IN LEFT)
13DIN FEMALE
1
4
7
10
2
5
8
11
3
6
9
12
SECTION A-A
1
4
7
10
2
5
8
11
3
6
9
12
SECTION B-B
SPEAKER REAR LEFT (+)
REMOTE (+)
ACC (+12V)
1
RED
7
12
11
10
9
8
4
5
6
3
2
BLACK GROUND (-)
PURPLE/BLACK
BLUE/WHITE
PURPLE
GREEN/BLACK
GREEN
ORANGE
GREY/BLACK
GREY
WHITE/BLACK
WHITE
PIN NO.
WIRE COLOR WIRE DEFINITION
ILLUMINATION
ORIENTATION
SPEAKER REAR LEFT (-)
SPEAKER FRONT LEFT (+)
SPEAKER FRONT LEFT (-)
SPEAKER FRONT RIGHT (+)
SPEAKER FRONT RIGHT (-)
SPEAKER REAR RIGHT (+)
SPEAKER REAR RIGHT (-)
AWG
20
16
16
20
20
20
20
20
20
20
20
20
WHITE
WHITE/BLACK
GREEN/BLACK
ORANGE
RED
GREEN
B
GRAY
GRAY/BLACK
PURPLE/BLACK
BLUE/WHITE
BLACK
PURPLE
IN
OUT
20A FUSE
B
FILTER &
FUSE BOX
