Pure Humidifier EC Series User Manual

TM

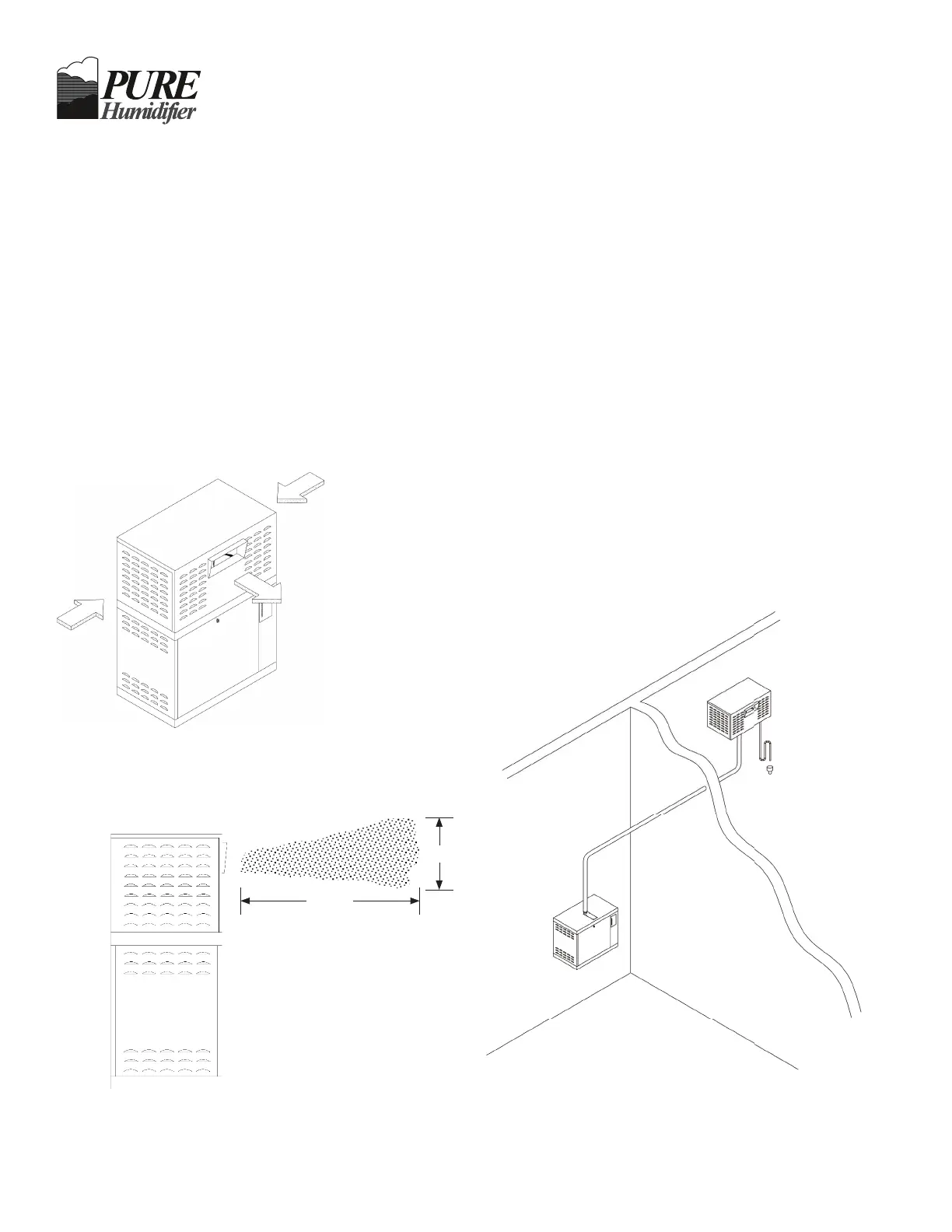

Optional Blower Pack
In applications where a ducted air system is not available,
PURE off ers the optional Blower Pack. The Blower Pack
contains a two-speed adjustable blower that moves the air
over the steam discharge outlet and disperses the steam
directly into the space (see Fig. 1). The Blower Pack mounts
directly on top of the EC humidifi er or can be remote mounted
(see Fig. 2).
Blower Pack
Locating Blower Pack
The distance that visible steam will travel after leaving the
Blower Pack is dependent upon the relative humidity in
the room and the capacity of the humidifi er. If this visible
steam comes in contact with any solid object (walls, beams,
machinery, etc.), it may form condensate and drip. Refer to
Fig. 3 and Table 4 (Table 4 is located on page 12) for data on
visible steam travel. This will aid you in planning the location
of the Blower Pack.
Remote Mounting
The Blower Pack may be remote-mounted up to ten feet
away from the EC wall mount humidifi er (see Fig. 2).
Blower Pack
Air is drawn into
the Blower Pack
Steam is discharged
directly into space
EC Wall Mount Humidifi er
Remote Blower Pack
6” Water Seal
EC Humidifi er
Throw
Rise
EC w/Optional Blower Pack
Fig. 1
Visible Rise and Throw
Fig. 3
Remote-Mounted Blower Pack
Fig. 2
11
