Pure Humidifier ES Series User Manual

15
Recommended Maintenance Tool List
7/16” Wrench
3/4” Wrench
11/32” Nut Driver or Socket
3/8” Nut Driver or Socket
5/32” Allen head
Flat head screwdriver
Wire stripper
Wire crimper
Tool Requirements
Torque List
Cover Bolts 18 inch/pounds MAX
Hose Cuff Screws 35-40 inch/pounds MAX when hot
Side Entry Exchanger Bolts 80 inch/pounds MAX
Heater Nut
18-20 foot/pounds
*
Heater Electrical Terminal 35 inch/pounds
* Use a pliers to hold heater sheath from twisting.
Heater Plate
Heater Fiber Gasket
Heater Nut
Electrical Terminal Nuts
Metal Washer
Heating Element Sheath
Isolator

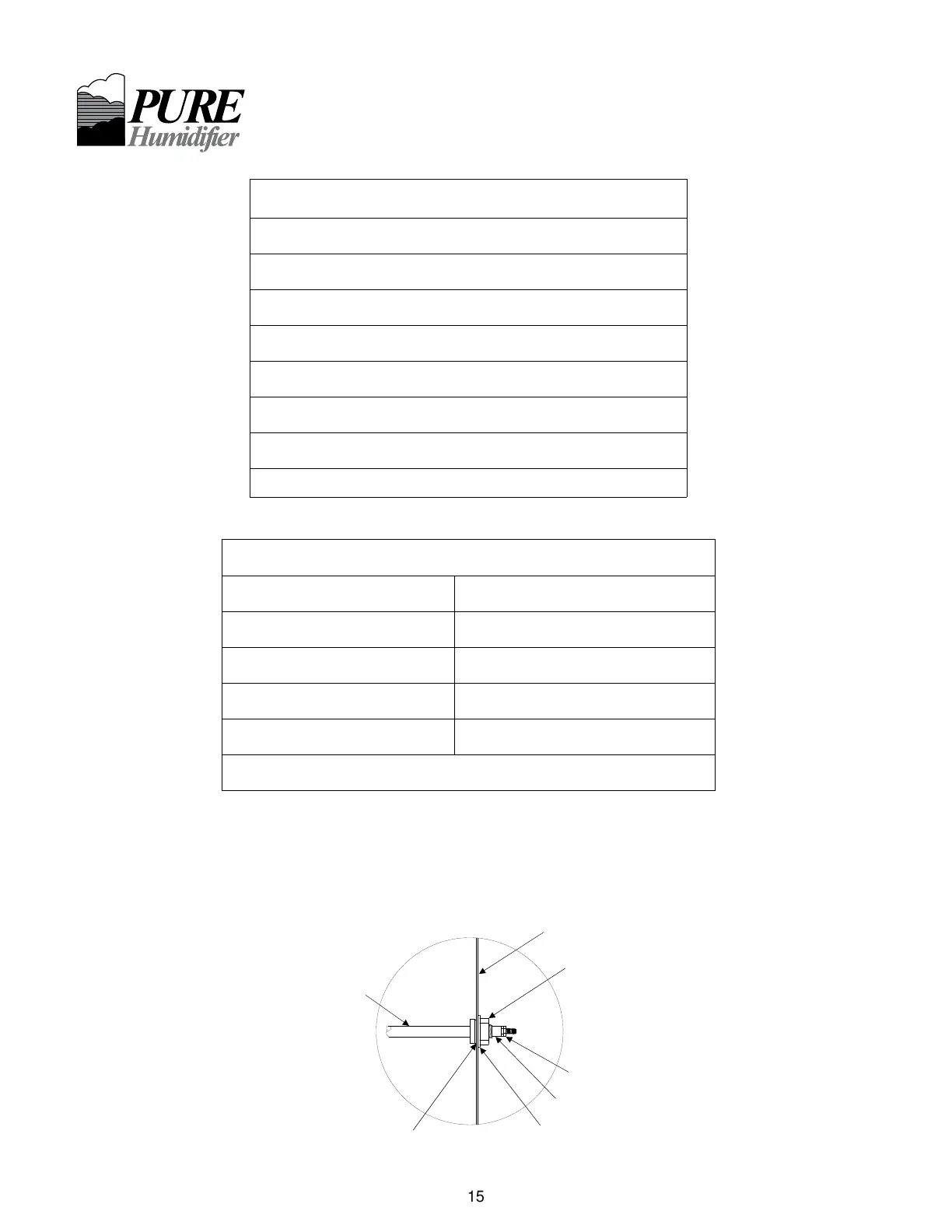

Heater Assembly Sectional Detail
14

Pure Humidifier ES Series Specifications

General

Type	Evaporative
Coverage Area	500 sq ft
Water Tank Capacity	1.5 gallons
Run Time	Up to 24 hours
Speeds	3
Humidistat	Yes
Auto Shut-off	Yes
