Installation (cont.)
STEP SEVEN

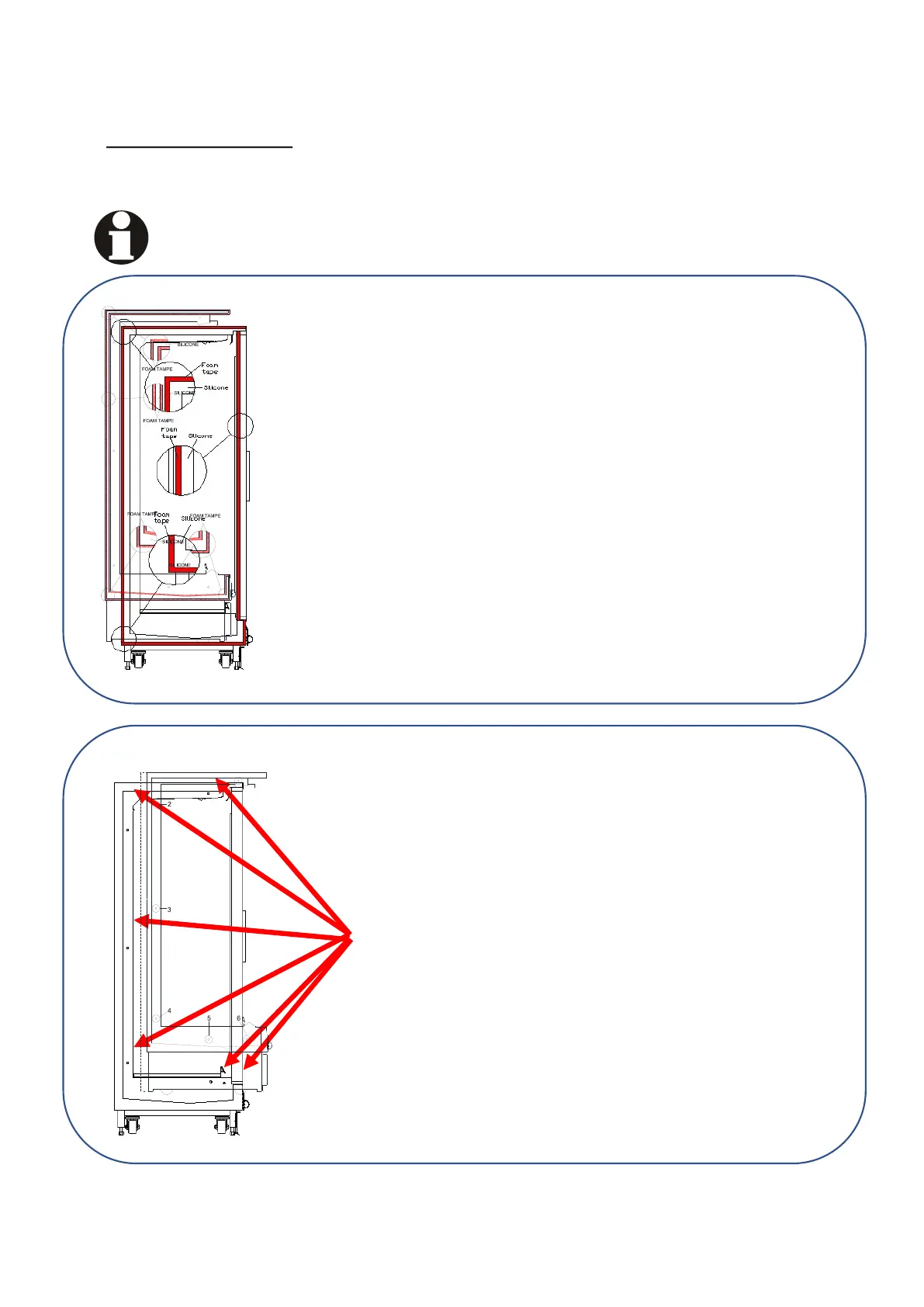

Case Preparation for Sealing Joints.
STEP EIGHT
Case to case fastening with bolts
(supplied within case)
Case to Case Line-up and Joining
The sealing of cases is imperative in the protection against leakage. Tubes
of mastic, silicone and foam tape are provided as part of the installation
kit. It is highly recommended to seal a case prior to installing another case
alongside.
Attach the foam rubber to the ends of the carcass then apply an even
amount of mastic to either side of the foam rubber. The rubber foam is
required for sanitation purposes, while the mastic is required for
refrigeration efficiency. Apply the mastic around the end perimeter.
As a final precaution, seal all internal joints with silicone. This provides
added sealing against leakage.
Be sure that beads of sealant and foam tape have been
applied correctly before commencing this operation. Move
the required case tightly against the line-up case. Insert all
necessary joining bolts (as indicated in the illustration below)
and finger tighten. Proceed with shimming/adjusting feet.
After adjustment and alignment have been levelled, proceed
to tighten the joining bolts equally until cases are firmly
sealed together.
