Installation (Cont.)
Refrigeration & Electrical
Pure Cold Impact 6 Installation,
Operation & Maintenance Manual

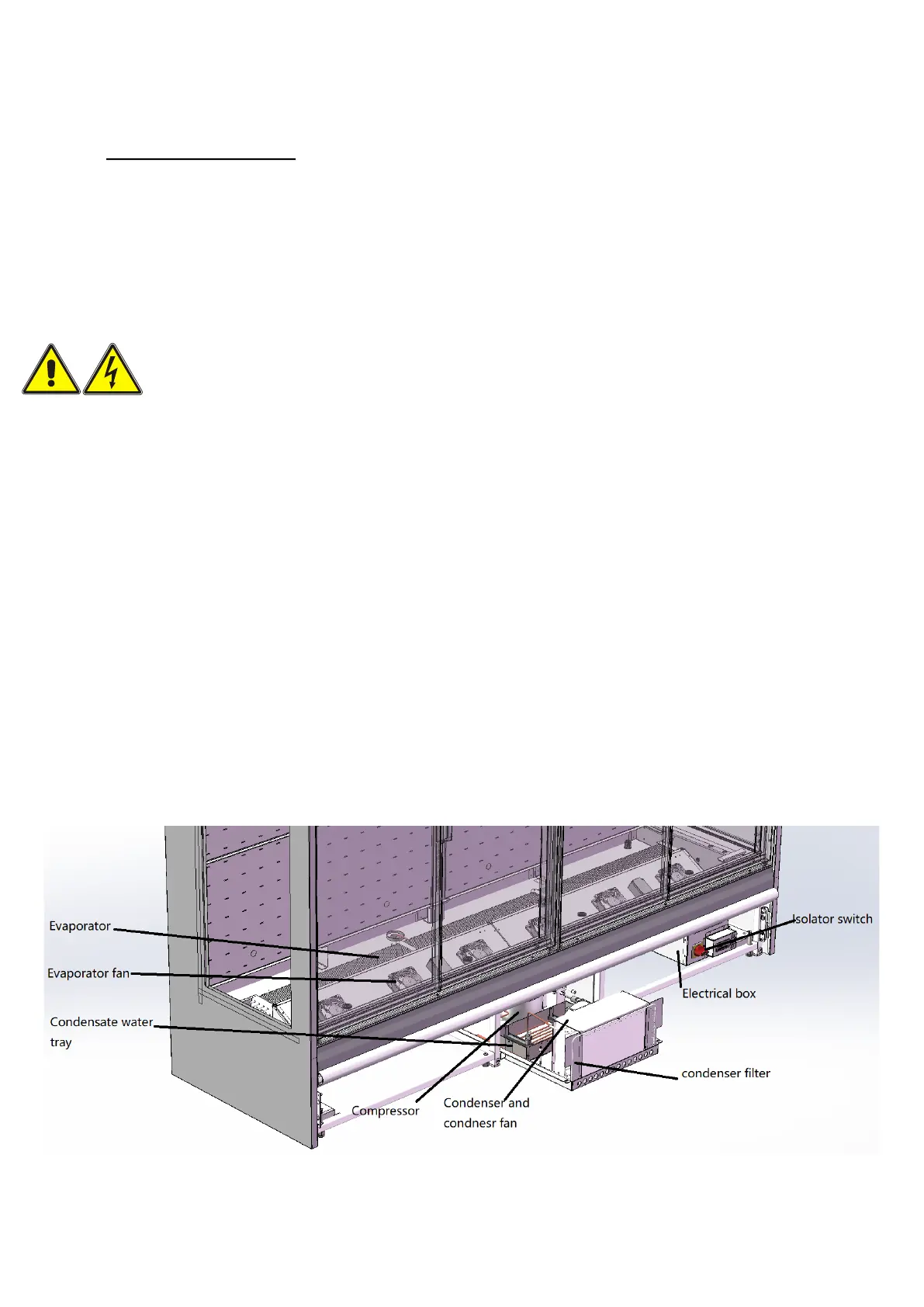

Access to Fans, Evaporator and Expansion Valves
Always electrically isolate case before carrying out any work that may effect or expose
electrical components or moving parts such as fan blades.
•For access to:
•Evaporator fans,
oLift out bottom decks ,well risers and air on grills
oIf removing fan baffle assembly, lift off and place in case ensuring no strain is placed
on connecting cables.
•Evaporator, remove the top cover on evaporator.
•Condenser Fans
oRemove front panel by lifting from bottom and pulling towards you
oRelease Screw Fixing on left and right of refrigeration tray
oSlide forward refrigeration tray
When working inside the electrical box the power supply must be isolated as there are live wires
feeding into the box.
Remove completely front panel
The electrical tray is located on the right hand side of the cabinet as you face it
Isolate the power supply via the isolation switch located on the electric box.
Warning Capacitors are used in the product so there may be a residual charge
Unscrew 4 screws and slide out tray
When working with the electric box ensure no strain is placed on connecting cables.
