-10-

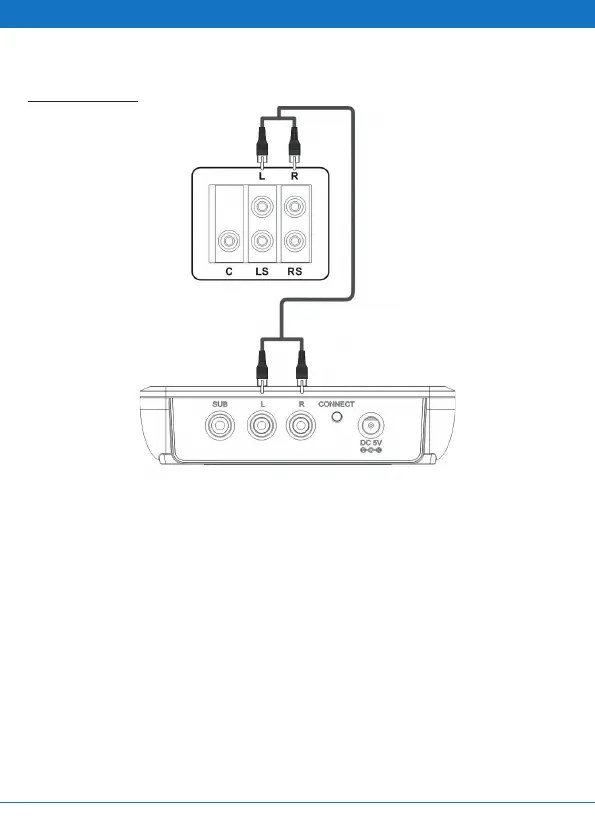

With RCA L/R Cable:
Step1: Take out the CSW620 TX.
Step2: Take an RCA L/R cable (white and red). Please follow the colour code and connect it to the
RCA L/R socket of the CSW620 TX and the other end to the RCA L/R socket of your
5.1 audio system.
Step3: Take out the AC/DC Power Supply. Plug the DC end to the DC socket of the CSW620 TX and
the AC end to your 90~240V AC outlet.
CSW620 TX - Back panel
