PureLink MAX2 Series - 12 G-SDI Input Card MAX2-SIS100

MAX2 4K60 Cross Platform Matrix Router
24

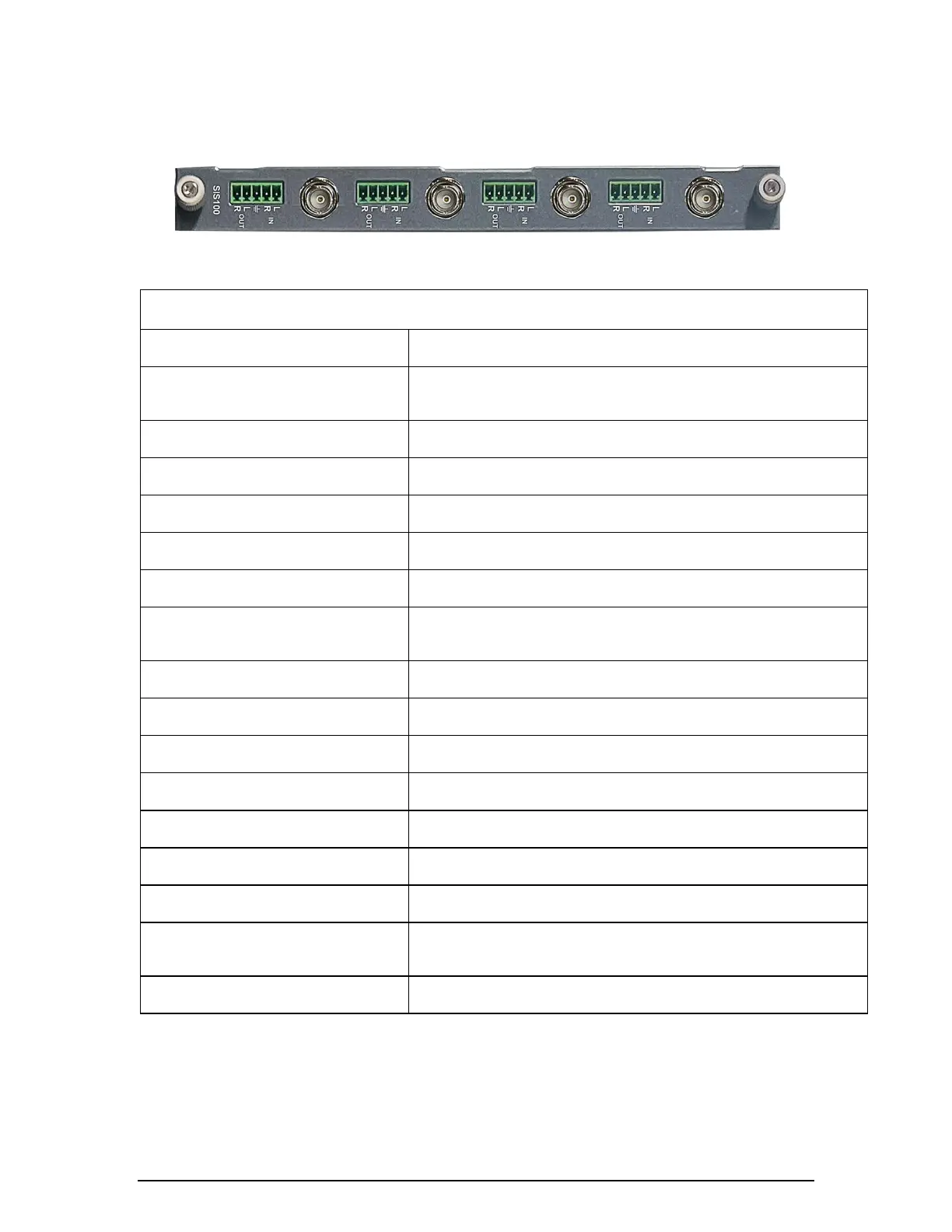

12G-SDI Input Card MAX2-SIS100
Number of Port
4 12G-SDI ports, 4 audio In/out ports
Connector Type
Female BNC connector,
Female phoenix stereo jack
Audio Extraction
Via phoenix stereo Audio out ports
Audio Insertion
Via phoenix stereo Audio in ports
Nominal Level
0.8 Vp-p ±10 %
Impedance
75 ohm
Return Loss
< -15 dB @ 5 MHz to 1.5 GHz
Equalization
Input Cable Equalization Distance
Automatic or manual
SDI: 150m / HD-SDI: 100m / 3G-HD-SDI: 50m
DC Offset
± 0.5 mV with Input at 0 offset
Re-clocking
Automatic
Jitter
<0.3 UI
Rise and Fall Times(20%-80)
135psec≤ Rise time / fall time @2970Mbps
Maximum Data Rate
2.97 Gbps
Auto Data Rate Lock
Yes
Data Types
8 bits or 10 bits
Operation Standard
SMPTE 292M, SMPTE 259M, SMPTE 424M,
ITU-RBT.601, ITU-RBT.1120
Single Card Weight
1.5 lbs (0.68 kg)
