PureLink MAX2 Series User Manual

MAX2 4K60 Cross Platform Matrix Router
25

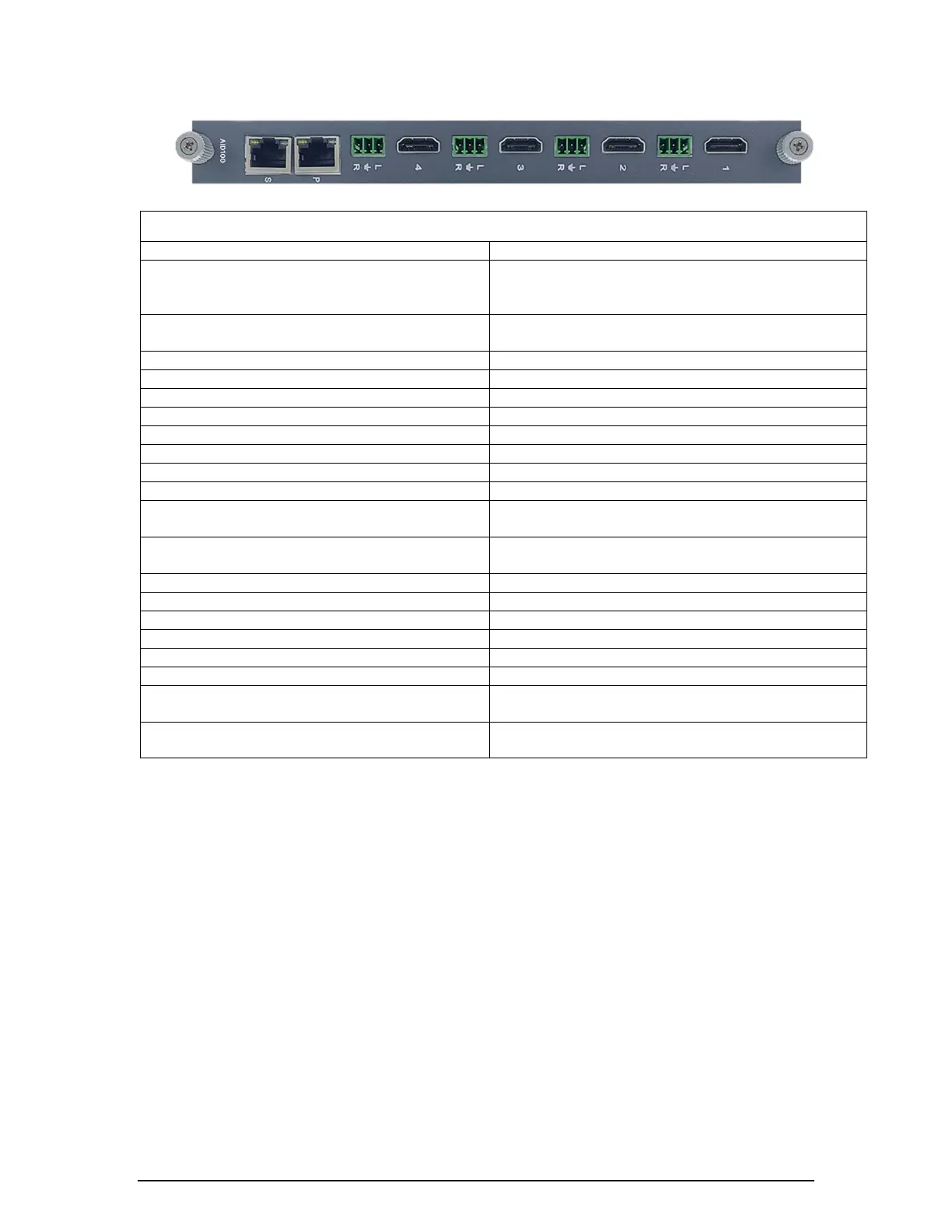

Dante Audio Input Card MAX2-AID100
Number of Port
4 HDMI ports, 4 stereo audio, 2 dante ports
Connector Type
Female HDMI connector,
Female RJ45
Female 3 pin phoenix connector
Signal Type
RGB digital Video (DVI and HDMI standards) or
YCbCr digital component Video (HDMI)
Digital Audio
Up to 8ch LPCM
Audio Insertion
Via phoenix stereo Audio in ports
Maximum Data Rate
18 Gbps per color (R,G,B)
Maximum Pixel Clock
300 MHz
Standard
HDMI 2.0b
Switching Speed
Max 200ns
Output Re-clocking
Automatic
Output Peripheral Device Power
600 mA per Output
Input Equalization
Automatic, Max 30m 1920 x1200 @50/60Hz
or 1080p; 8 bit color, Ultra HD 4K
Resolution
Up to Ultra HD 4K
4096z2160 4:4:4 @60Hz
HDCP Compatible
HDCP version 2.2
Support Hot Plug Detection
Yes
HDMI Digital Audio Formats
LPCM up 8ch
IP Audio transmitter Type
Dante/ASE67, Software Selectable
IP Output Channel
HDMI Audio 32 Channel + Analog 8 channel
IP Audio format
Uncompressed, 24bit, 48khz
IP Audio Latency
Selectable, 0.25ms, 0.5ms, 1.0ms,
2.0msm5.0ms
Single Board Weight
0.5 lbs (0.23 kg)
