12

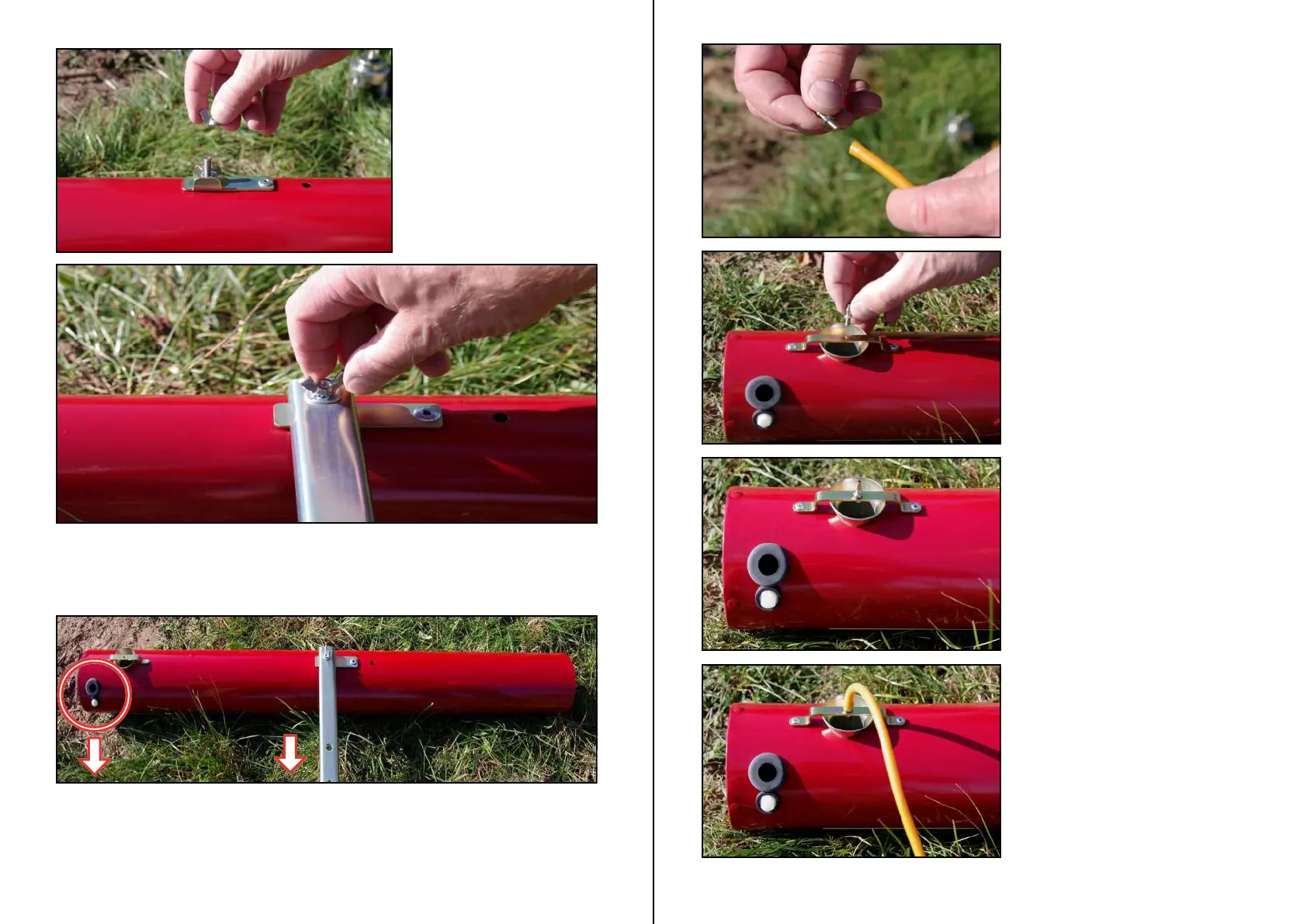

Once this is done the cross bar will be attached to the sound tube
and tightened with the wing nut. Make sure that the cross bar is
Remove the wing nut,
toothed washer and the
washer from the thread on
the sound tube (106040).
Make sure that the opening from the sound tube for the spark plug
shows in the same direction like the cross bar (see picture)
13
Remove the propane nozzle which
is plugged into the gas hose
(Gh-2) which runs away from
the electronic unit.
The propane nozzle will screwed
into the nozzle-bracket from the
sound tube.
Now the gas hose is pushed onto
the gas nozzle. Make sure that it is
the gas hose (Gh-2) which goes
away from the electronic unit.
