16

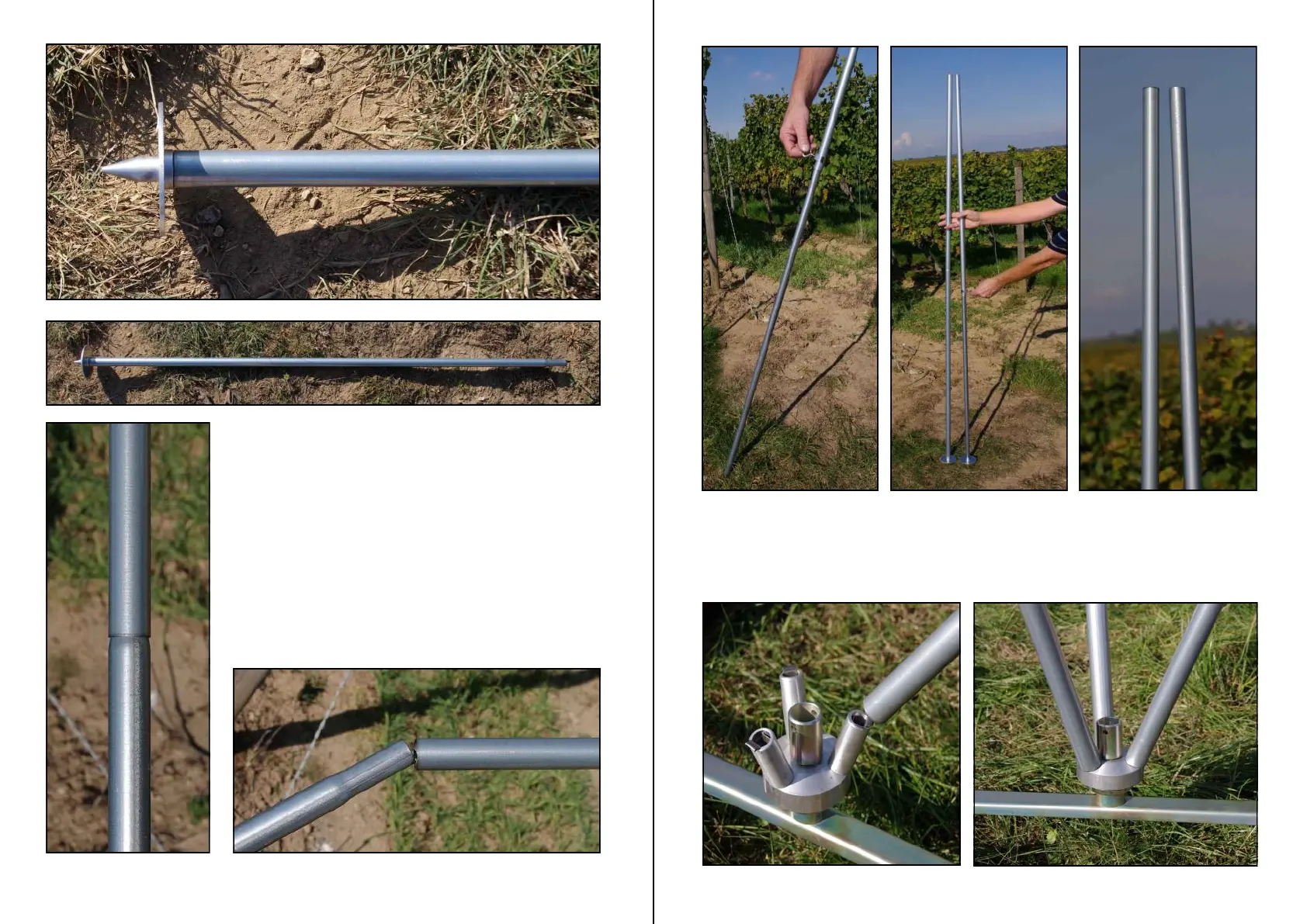

Insert the big foot plates (102273) into the
long poles (102025). Make sure to use the long
poles. This will prevent that rainwater can run
into the poles.
Now the short pole (102023) will be fitted to
the long pole.
17
Take the adjustable pole (102026 & 102028) and put the small foot
plate (102275) on. Now hold the previously assembled poles (long + short)
next to the adjustable pole. Use the wing screw to adjust the length so
that the adjustable pole has the same length like the other poles.
After this place all three poles on the bearing block.
