PVI TH2432 - Installation Instructions

5

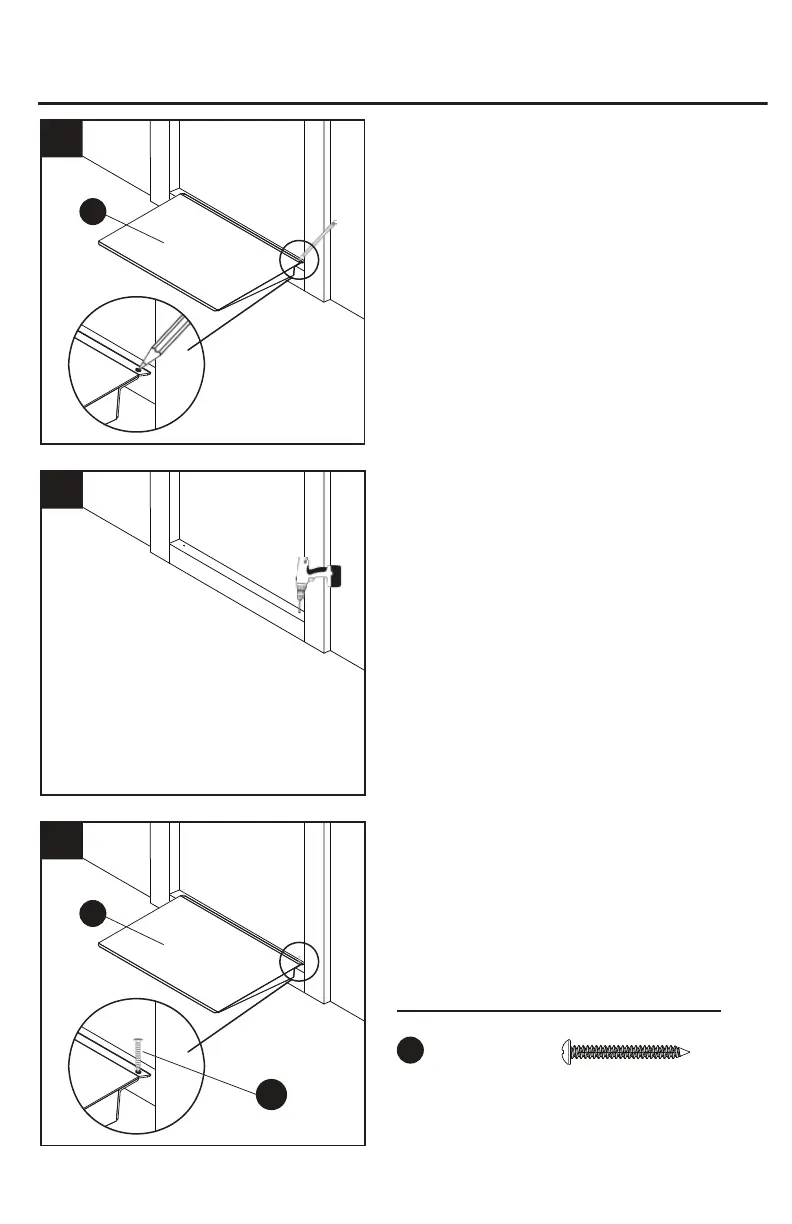

INSTALLATION INSTRUCTIONS
1
1. Carefully place threshold ramp (A) with top end
(end with holes) on the step or landing area.
Make sure hook is pressed firmly against step.
Locate both holes at end of the threshold ramp
(A). Mark the pin locations using a pen/pencil.
Hardware Used
2.
Remove the threshold ramp (A) and then, using
a drill and 11/64 bit, drill a hole approximately 2
inches deep.
3. Replace the threshold ramp (A) and insert the
Phillips sheet metal screws (AA) into the holes
to secure it in place.
AA
x 2
A
2
A
3
AA
Phillips Sheet
Metal Screw
6
INSTALLATION INSTRUCTIONS
4. Locate both holes at end of the ramp. Mark the
pin locations using a pen/pencil.
Hardware Used
5.
Remove the ramp and then, using a drill
and 5/16 bit, drill a hole approximately 2 inches
deep.
6. Now place the ramp back to the desired
location and drop clevis pins (AA) into
the holes to secure the ramp in that location.
4
5
6
B
AA
x 2
Clevis Pin
A
B
A
AA
4
5
INSTALLATION INSTRUCTIONS
1
1. Carefully place threshold ramp (A) with top end
(end with holes) on the step or landing area.
Make sure hook is pressed firmly against step.
Locate both holes at end of the threshold ramp
(A). Mark the pin locations using a pen/pencil.
Hardware Used
2.
Remove the threshold ramp (A) and then, using
a drill and 11/64 bit, drill a hole approximately 2
inches deep.
3. Replace the threshold ramp (A) and insert the
Phillips sheet metal screws (AA) into the holes
to secure it in place.
AA
x 2
A
2
A
3
AA
Phillips Sheet
Metal Screw
Carefully place threshold ramp (A)
with top end (end with holes) on
the step or landing area. Make sure
hook is pressed rmly against step.
Locate both holes at end of the
threshold ramp (A). Mark the pin
locaons using a pen/pencil.
Remove the threshold ramp (A) and
then, using a drill and 11/64 bit,
drill a hole approximately 2 inches
deep.
Replace the threshold ramp (A)
and insert the Phillips sheet metal
screws (AA) into the holes to secure
it in place.
1.
2.
3.
