15. TREBLE: Adjusts the master treble
16. BASS: Adjusts the master bass
17. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to
increase the MIC volume .
18. USB/SD: Card input
19. MIC INPUT JACKS 1 & 2 KARAOKE MIC: Connect to these jacks.
20. HEADPHONE JACK: Headphone connect to this jack.
21. INPUT SELECTOR: Turn this button to choose the favorable input
22. USB CHARGE SELECTOR
23. BT ANTENNA
24. REMOTE CONTROL WINDOW
25. AUX 1 Input

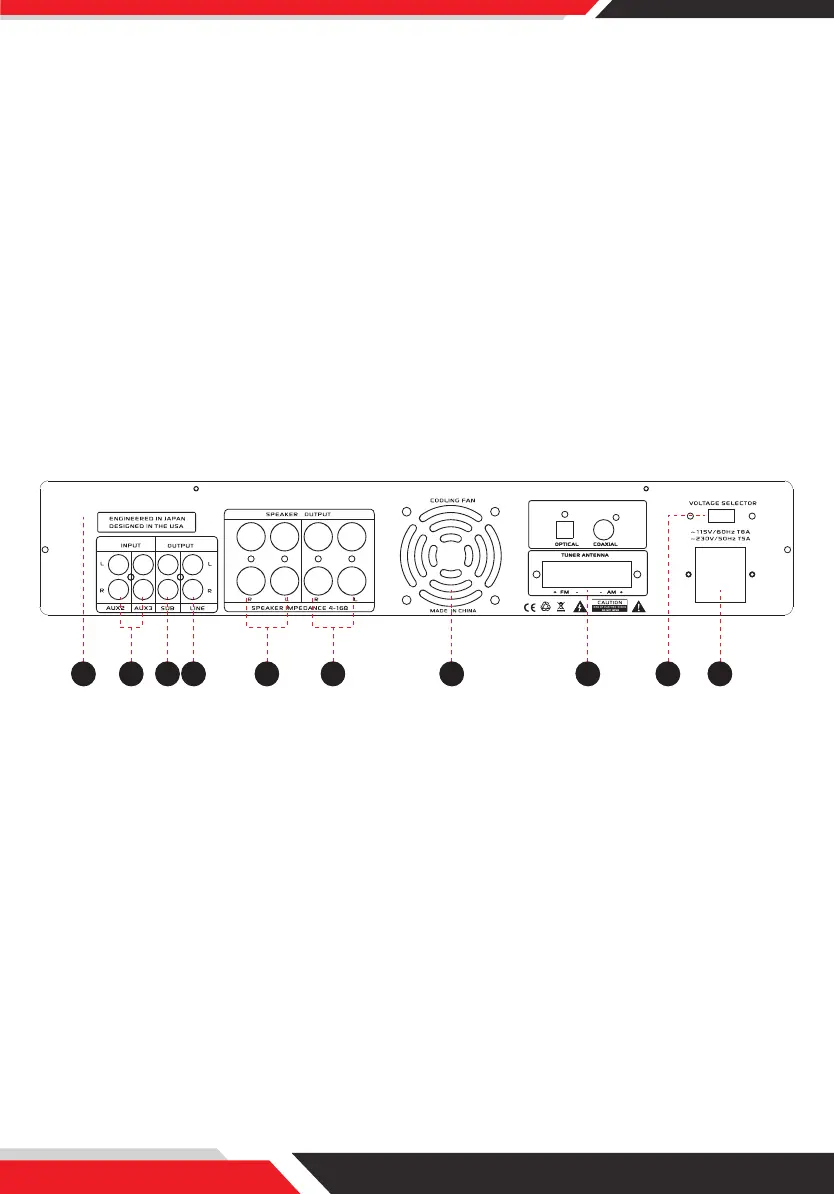

BACK PANEL
1. TUNER ANT: Connect for AM and FM antennas.
2. AUDIO INPUT JACKS:
Connect the audio output jacks of CDNCD/DVD, AUX to these jacks.
3. SUB-WOOFER OUTPUT JACKS 1 & 2: Connect IPOD/MP3 to this jack.
4. LINE OUTPUT JACKS: Connect the line input jacks to these jacks.
5. A SPEAKER OUTPUT TERMINALS: Connect your speaker system to these
terminals.
6. B SPEAKER OUTPUT TERMINALS:
Connect your the other speaker system(s) to these terminals.
7. COOLING FAN
8. 115V/230V SWITCH: According to power voltage, push this button to the
station of the 115V or 230V.
9. POWER CORD: Connect to AC 115V/60Hz & 230V/50Hz outlet.
10. WIRELESS MIC ANTENNA
