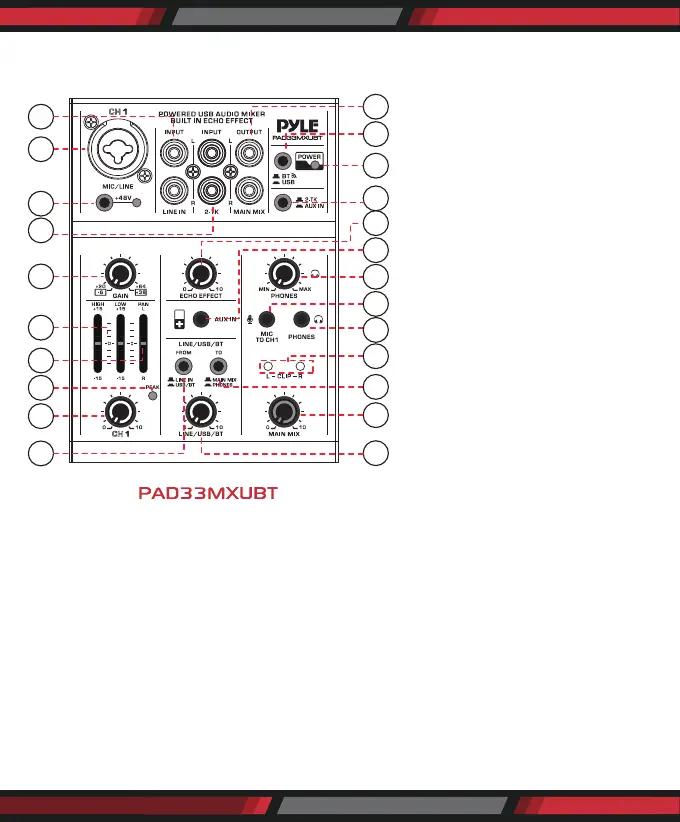

CONTROLS AND FUNCTIONS for PAD33MXUBT - PAD43MXUBT
4. [2-TK] Stereo RCA input jacks, connect the audio source with line signal level,
such as Recorder, MP3 player etc.
5. [MAIN MIX] Stereo RCA output jacks, connect the input of an amplier or a
recorder.
6. [POWER ON] LED, it will light up when the mixer’s power is on.
7. [BT/USB] Convert switch, when the switch is bounced up, it connects with
Wireless BT. Press it down to connect with USB.
8. This is an input select switch, when the switch is bounce up, the input signal is
from 2-TK. Press it down, the input signal is from AUX IN.
1. [MIC/LINE] Input jack, used to
connect the mono signal such
as XLR microphone or 1/4”
line input device.
2. [+48V PHANTOM POWER]
Button/LED, when the button
is turned on, the LED light is
on, provide DC +48V phantom
power to XLR plug on MIC
mono input. Please turn on
this button when using the
condenser microphone which
is powered by a phantom
power.
3. [LINE IN] Stereo RCA input
jacks, connect the audio source
with line signal level, such as
CD player, tape deck etc.
