Pyle PAMP1000 User Manual

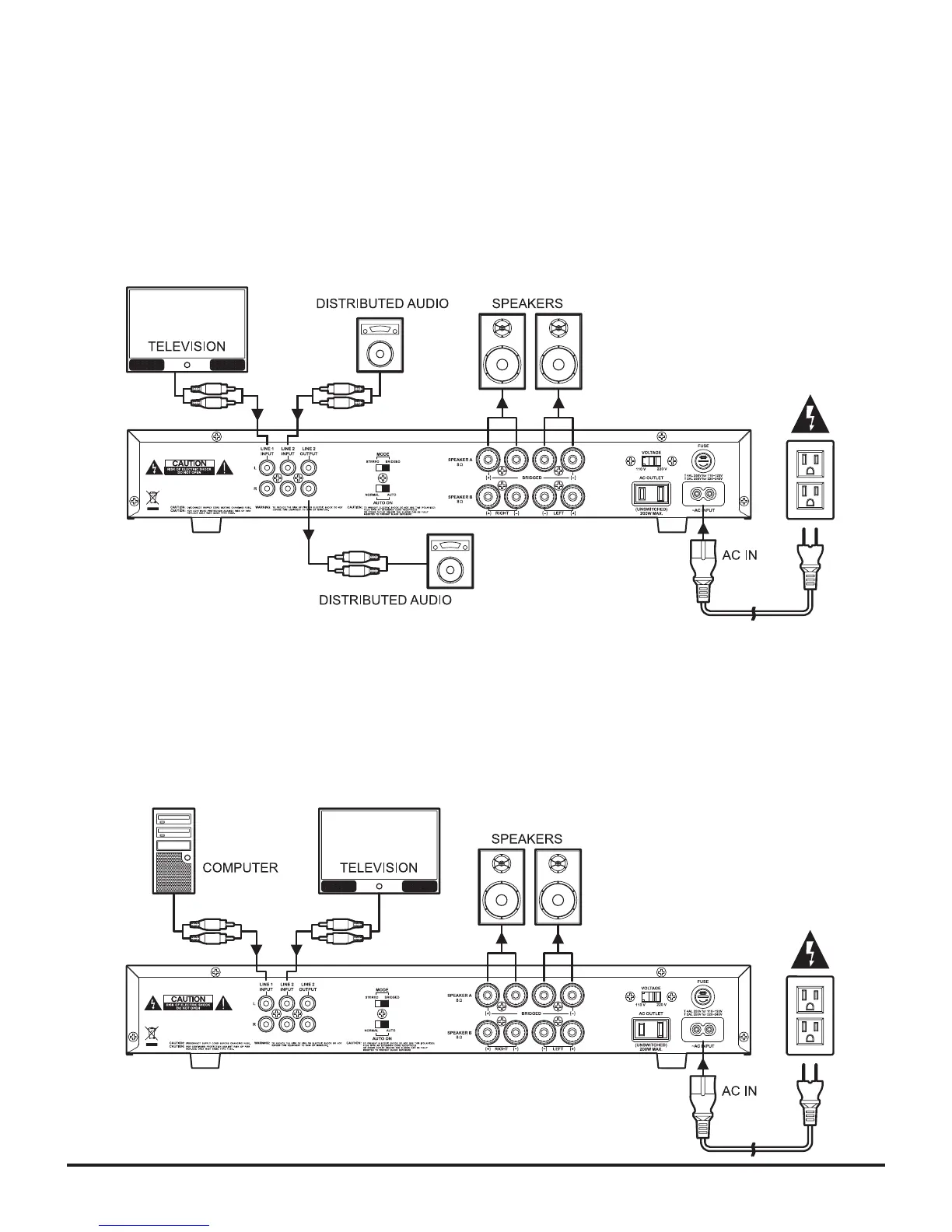

CONNECTION DIAGRAM-A:
CONNECTION DIAGRAM-B:
In this application the TV audio signal acts as "Priority" source at Line 1 input and a
distributed audio signal from the other audio system acts as "Primary" source at Line
2 input. Whenever the TV is activated, its signal overrides the distributed signal of
Line 2, only the TV audio will be heard via the amp, but the distributed audio of Line
2 input will still be present at Line 2 Output and sent to additional zone. Once TV
is turned off, the amp will switch to the distributed audio automatically as an audio
source, if the distributing audio is still active.
In this application a computer's sound card acts as "Priority" source at Line 1 input
and the TV audio signal acts as "Primary" local source at Line 2 input. Whenever the
computer is activated, its signal overrides the TV signal of Line 2, only the computer
audio will be heard via the amp. Once the computer is turned off, the amp will switch
to the TV automatically as an audio source, if the TV is still active.

Pyle PAMP1000 Specifications

Power

input impedance	20 k-Ohms
continuous output power stereo mode 8 Ohms	60 Watts x 2
continuous output power stereo mode 4 Ohms	70 Watts x 2
maximum power stereo mode 8 Ohms	65 Watts x 2
maximum power stereo mode 4 Ohms	80 Watts x 2
maximum power bridged mode 8 Ohms	130 Watts
maximum power bridged mode 4 Ohms	160 Watts
THD at rated output power	0.1%
power requirement	120V AC 60Hz/230V AC 50Hz
power fuse 110-120V	T 4AL 250V
power fuse 220-240V	T 2AL

Audio

frequency response	10 Hz to 50 kHz
signal to noise ratio A-weighted	100 dB
speaker impedance stereo	4-16 Ohms
speaker impedance bridged	8-16 Ohms

Weight and Dimensions

dimensions	16.53 x 2.36 x 8.26 inches (420 x 60 x 210 mm)
weight	9.08 lbs (4.12 kg)
