Assembly

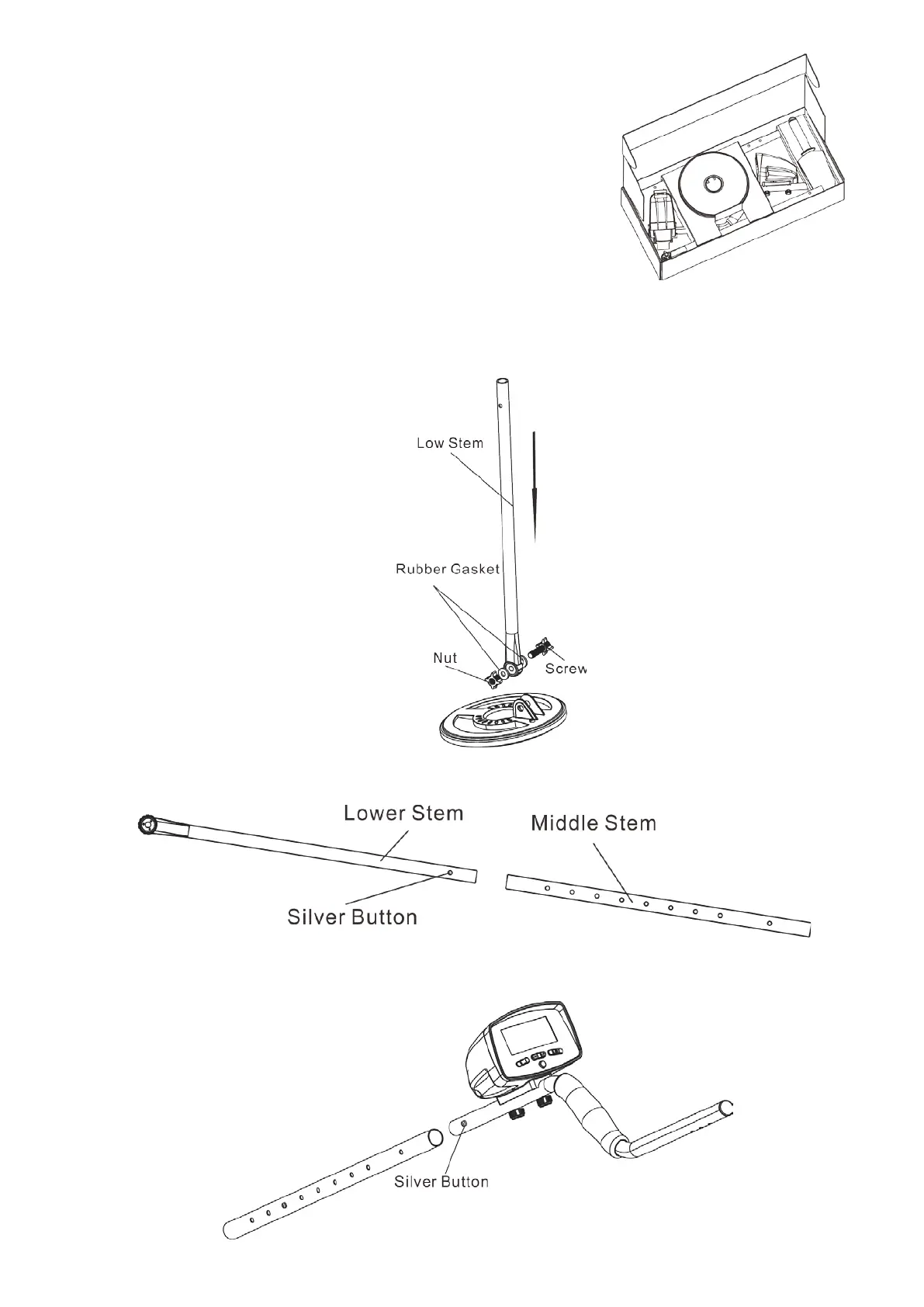

1. Open the packing box.
2. Loosen the locking knob on the lower stem, and loosen the bolt. Insert the lower stem to the search
coil, and tighten the connection. Don’t forget to insert the rubber gaskets on each side.
3. Press down the locking spring (silver button) on the lower stem, and insert into the middle stem.
4. Press down the silver button on the upper arm and insert it to the other side of the middle stem.
