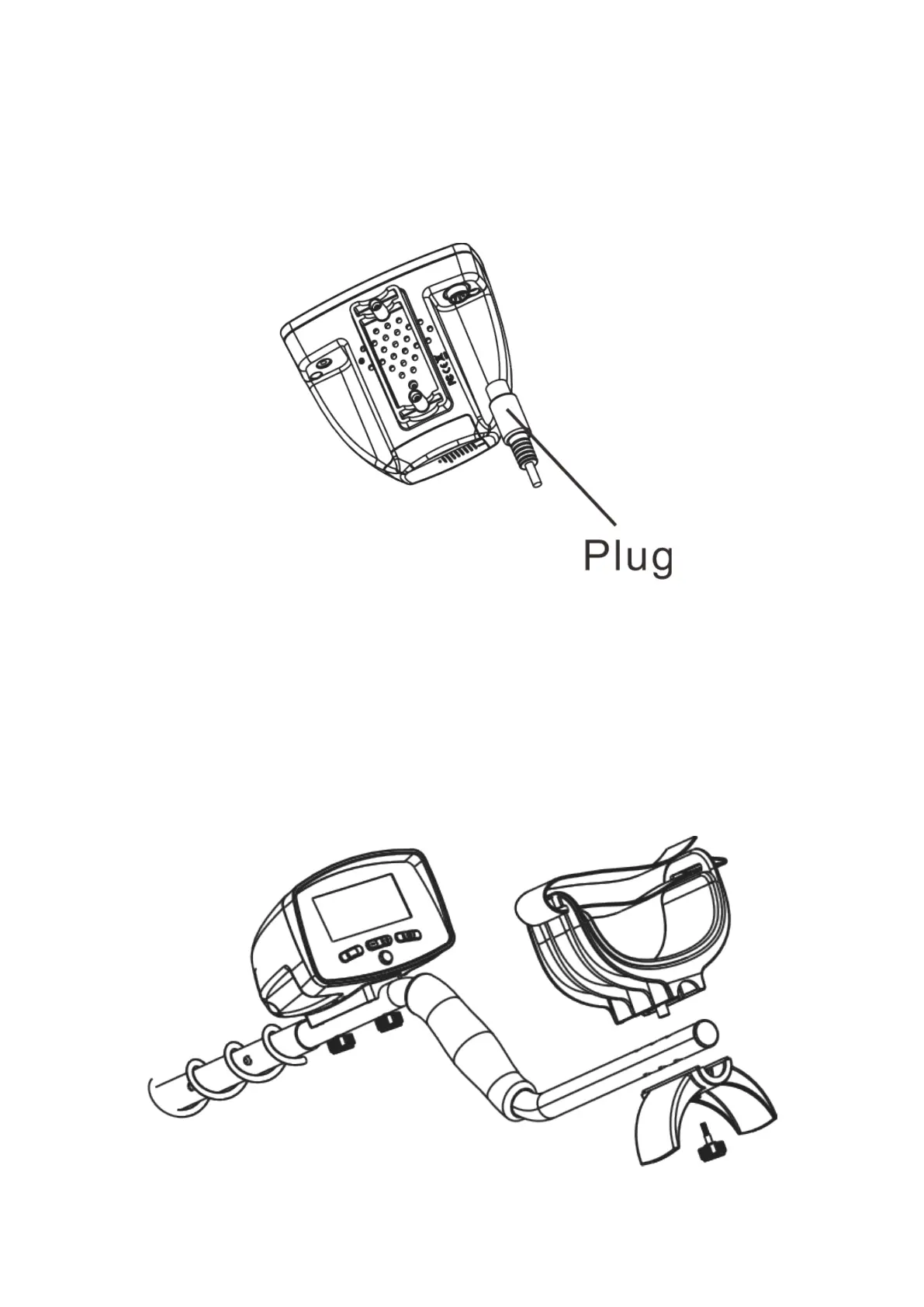

5. Coil the cable line of the search coil onto the tube pole arm, keep the cable moderate loose but
wrapped around enough, so that the cable line won’t sway or dangle in the way, then insert the cable plug
to the connector located on the lower right jack of the control box. Note: when disconnecting or
inserting the cable, make sure you connect / disconnect via holding onto the connector, not the cable itself.
Make sure when setting the length of the metal detector, to set accordingly at a comfortable and proper
height from the ground floor surface.
6. The arm support brace has three positions. When adjusting, tighten the triangular fastening screw
under the arm support bracket accordingly.
