Pyle PLAM2001D User Manual

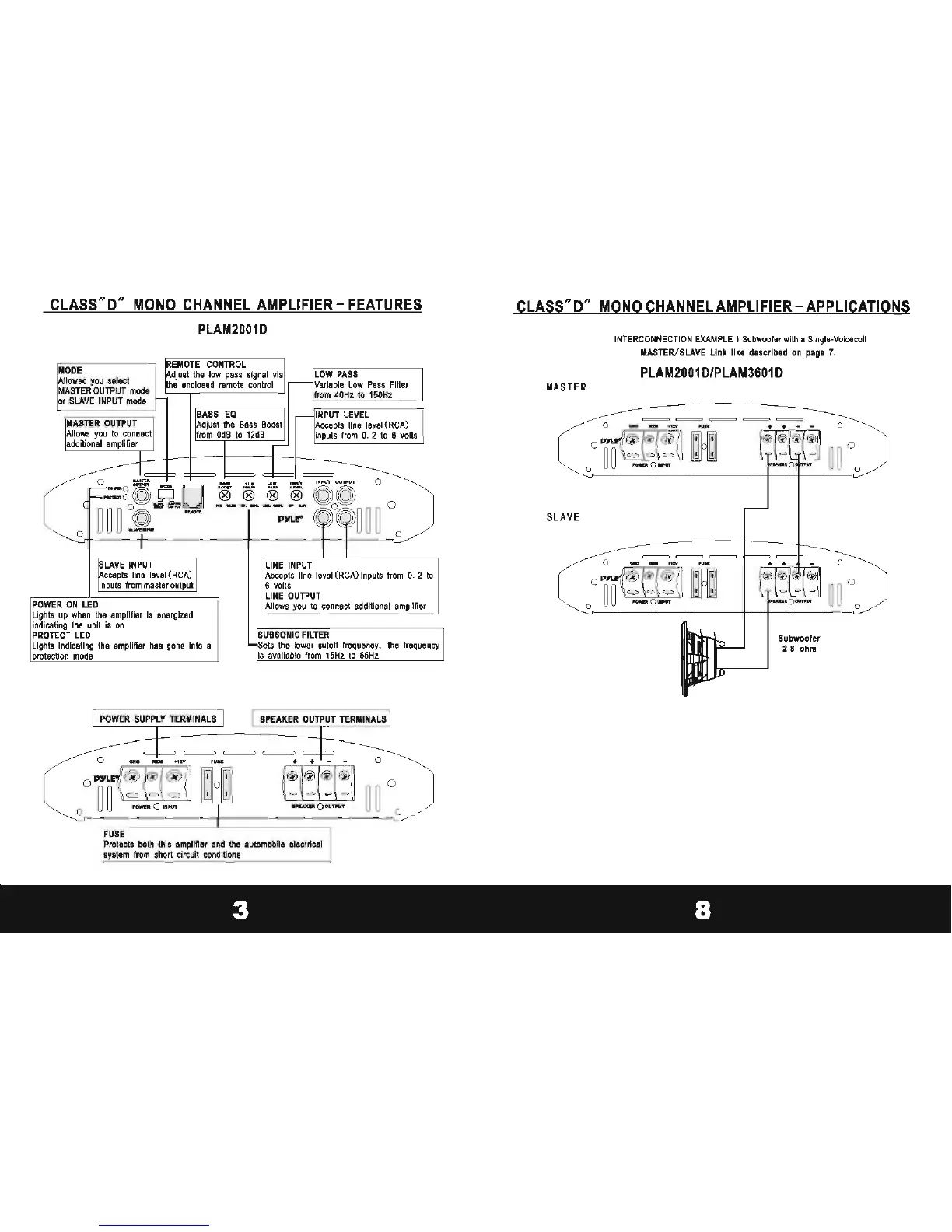

CLASS"D" MONO CHANNEL AMPLIFIER - FEATURES
PLAM2001D
MODE
REMOTE CONTROL
Adjust the low pass signal via LOW PASS
Allowed you select the enclosed remote control r-- Variable Low Pass Filter
MASTER OUTPUT mode I- from 40Hz to 150Hz
or SLAVE INPUT mode
BASS EQ _INPUT LEVEL
MASTER OUTPUT
Allows you to connect
additional amplifier
Adjust lhe Bass Boost
from OdB to 12dB
Accepts line level (RCA)
inputs from O. 2 to 6 volts
-
_ t-I~-r-- t- --- t-~ -- __
o lc;===p cJ= =~ _~ c _i==l,.LIT ~ OUT~UT 0
C ~~ gog ,~ ~ .~".~ .§)-;~~ ~08r n n 0
o U U u .5.i,~ u U U 0/
I
IS LAVE INPUT
r.,ccepts line level (RCA)
Inputs from master output
POWER ON LED
Lights up when the amplifier is energized
indicating the unit is on
PROTECT LED
Lights indicating the amplifier has gone into a
protection mode
LINE INPUT
Accepts line level (RCA) inputs from O. 2 to
6 volts
LINE OUTPUT
Allows you to connect additional amplifier
SUBSONIC FILTER
Sets the lower cutoff frequency, the frequency
is available from 15Hz to 55Hz
POWER SUPPLY TERMINALS SPEAKER OUTPUT TERMINALS
===
+ + _ _ 0
(~ ( ~(~ ! ~(I 0
IPEAKI!Il 0 DUTPUT ~ ~
FUSE
Protects both this amplifier and the automobile electrical
system from short circuit conditions
o
CLASS"D" MONO CHANNEL AMPLIFIER - APPLICATIONS
MASTER
SLAVE
INTERCONNECTION EXAMPLE 1 Subwoofer with a Single-Voicecoil
MASTER/SLAVE Link like described on page 7.
PLAM2001 D/PLAM3601 D
=====
o _... .,,... 'U,E
o ~r~ b( ; ( l 00
===
o 0-'" •• ,... 'U"
o ~r~ b( ;(l 00
Subwoofer
2-8 ohm
o
o

Pyle PLAM2001D Specifications

General

Amplifier class	D
Frequency range	15 - 150 Hz
Audio output channels	1.0 channels
Peak power per channel	2000 W
Signal-to-Noise Ratio (SNR)	90 dB
Total Harmonic Distortion (THD)	- %
Speakers connectivity type	-
Purpose	Car
Product color	Black, Blue
Connectivity technology	Wired
DC input voltage	12 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	3480 mm
Width	2974 mm
Height	694 mm
