Pyle PLAM2001D User Manual

CLASS"D" MONO CHANNEL AMPLIFIER - APPLICATIONS
INPUT CONNECTIONS
* This amplifier has RCA connections for low level inputs. Low level signal is carried
through
RCA cables . It Is preferred to use low level Inputs to the amplifier if the head
unit is equipped with the low level outputs.
SPEAKER OUTPUT CONNECTIONS
You do not need to make any adjustment for the Input connection of amplifier before
you connect the speaker output.
* Connect subwoofer wire to corresponding speaker output terminals of the amplifier.
* Be sure to have the positive wire from the speaker to the positive speaker terminal
of
the amplifier and the negative wire from the speaker must connect with the speaker
terminal of
the amplifier. Reversing any of these connections will result in the speaker
cones moving out of phase which causes bass cancellation.
LEVEL CONTROLS
Tum the VOLUME control on the amplifier to Min Initially.
Once the initial power sequence has been performed, set the CD / RADIO volume
control to roughly 80% of full. Insert a CD or tune to a radio station and slowly turn
up the amplifier VOLUME control until you hear some distortion, and then back it off
for
clean sound.

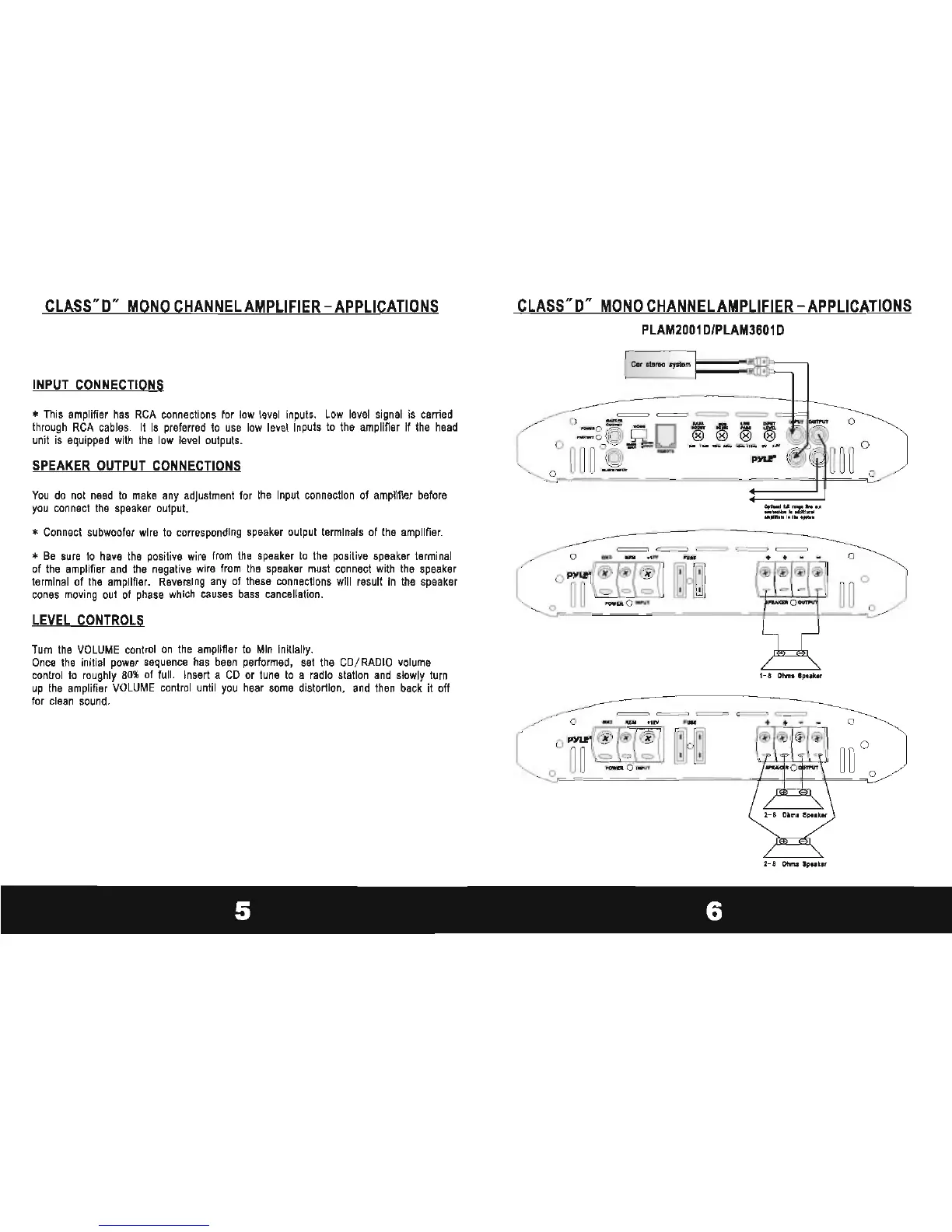

CLASS"D" MONO CHANNEL AMPLIFIER - APPLICATIONS
PLAM2001 D/PLAM3601 D
Ca r stereo syst&rn
= ==
o GilD REM IllY 'UI I!
o P~ ni~ ( ~ ( : (1 ~~
o ~ ~ _~ O "~
o,II ... IuIl ......... 111
__ Ion ..... dltl.nll
omplll ... In tho Ipla.
+ + - -
o
~ ~ 0
o
1- 8 Ohm,8plaktr

Pyle PLAM2001D Specifications

General

Amplifier class	D
Frequency range	15 - 150 Hz
Audio output channels	1.0 channels
Peak power per channel	2000 W
Signal-to-Noise Ratio (SNR)	90 dB
Total Harmonic Distortion (THD)	- %
Speakers connectivity type	-
Purpose	Car
Product color	Black, Blue
Connectivity technology	Wired
DC input voltage	12 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	3480 mm
Width	2974 mm
Height	694 mm
