Pyle PLCAPE30 User Manual

+
)(
--
( )
To Charge the capacitor:
1. Make your connections from the Capacitor positive and negative output terminals to the
amplifier(s) positive and negative terminals. Do not over-tighten the bolts on the Capacitor!
Caution: Stripped terminals are not covered under the capacitor’s warranty.
2. Connect the battery ground cable directly to the capacitor, then refer to the attached
drawing.
3. Place the supplied charging bulb or resistor between the positive terminal of the capacitor
and the battery’s positive terminal. Do this for 30 seconds or until the charging bulb goes
out. Caution: The charging bulb will get hot!
4. Immediately after the charging process, take out the charging bulb from the connecting
wire. And connect the positive cable of the battery directly to the positive terminal on the
capacitor.
5. Follow the attached wiring drawing to connect all wire and parts.

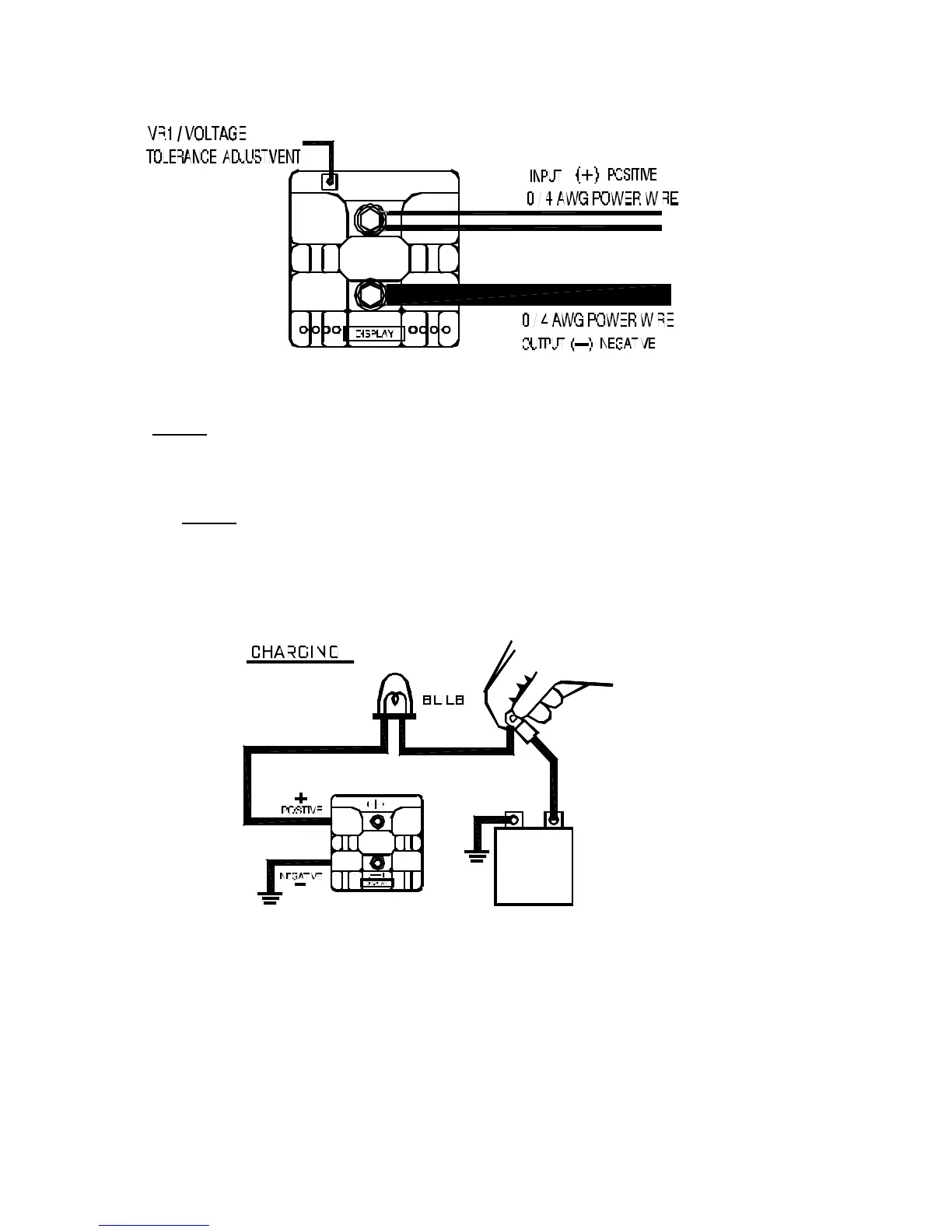

Below is an illustration showing correct wiring for the capacitor.
BA TTERY
--
(
+
)()
