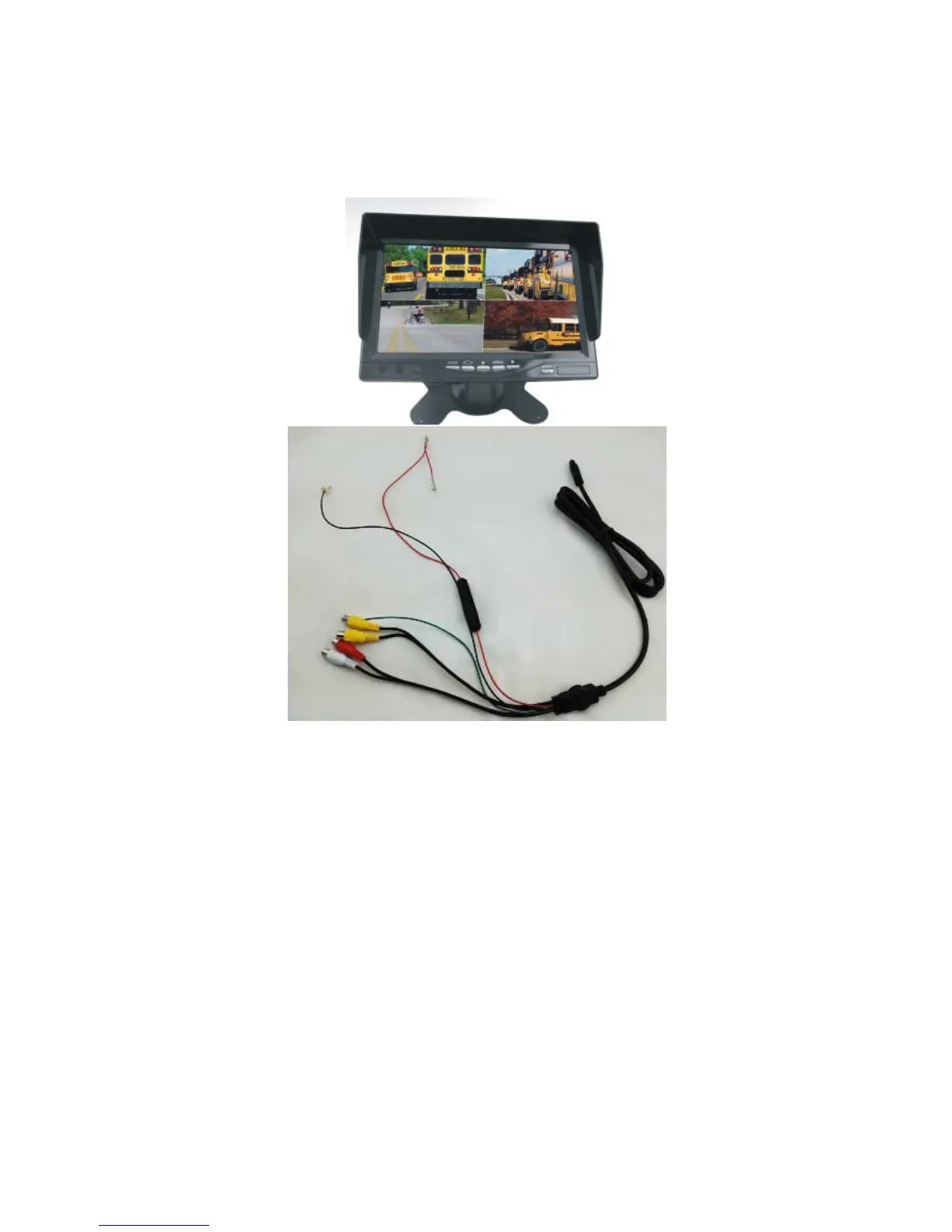

Monitor Wiring & Connection
Red and black wire is for 12V power
Green wire is Reverse trigger cable
The 2 yellow RCA jack and red and white RCA jack is the 4 ch video
input.
The Reverse trigger cable is for the Ch1, so please connect t
he reverse
backup camera to the Ch1, so when the truck in reverse status, the reverse
camera would be priority.
