Press open the AMP terminals on the control center, then insert your receiver/
amplier’s positive (+) wires into the positive (red) terminals, and negative (-)
wires in the nagative terminals. Then press the tabs to close them.
Notes:
• If your receiver/amplier has more than one set of speaker terminal (A and B),
connect only one or the other to the control center.
• For the best results, we recommend 14-gauge, two conductor speaker wire
(not supplied) for most connections. If you plan to located the speakers further
than 80 feet from the control center, use a heavier gauge of wire.
OPERATION
CAUTION:
• To avoid damaging your receiver/amplier, set its volume to the lowest setting
before changing the control center’s settings.
• To turn on a pair of speakers connected to the control center, simply press in the
desired button. For example, to turn on the set of speakers connected to SPK A,
press A.
• To turn off a pair of speakers, press the button again so it is in the “out” position.
Note:
if no speakers are connected to a set of terminals, do not press in the corresponding
control button.

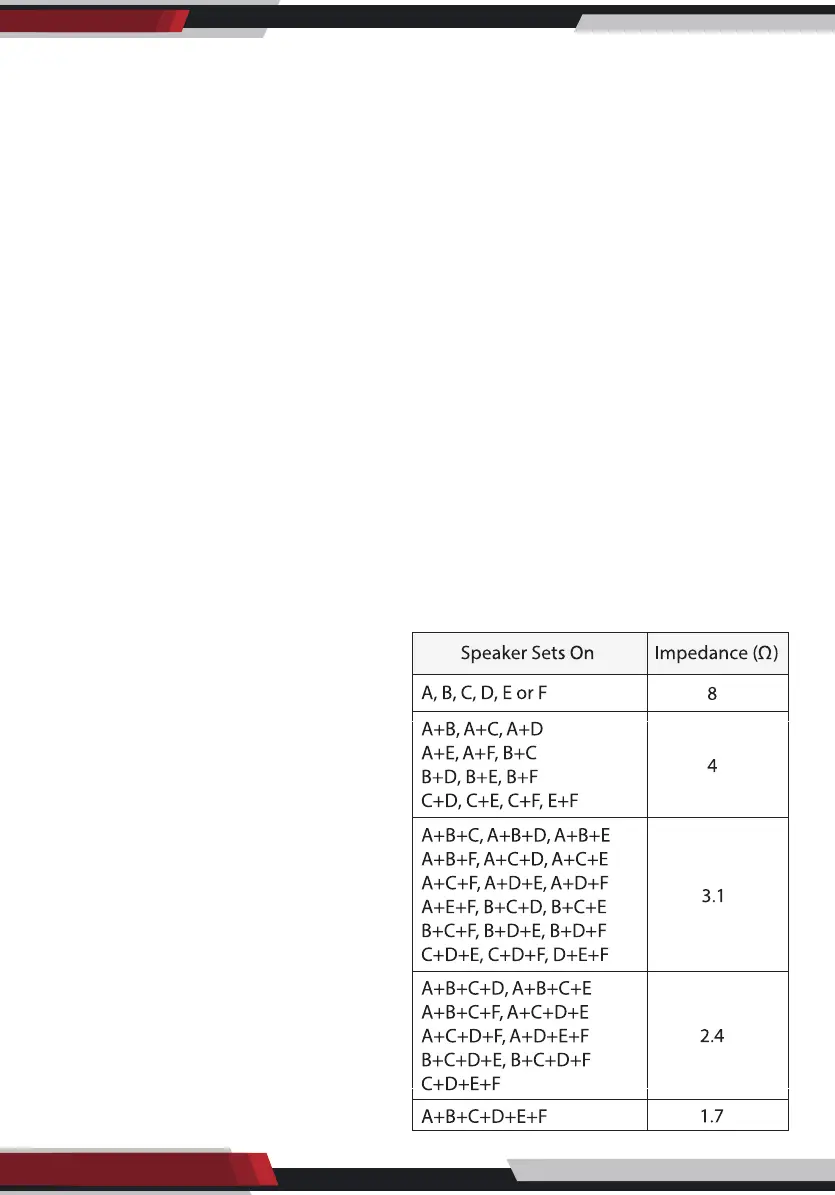

IMPEDANCE CHART
Impedance is a measurement of the
load placed on your receiver/
amplier by the speakers. The load
placed on your receiver/amplier
from thte control center will vary
depending on how many pairs of
speakers you turn on at one time,
and on which speakers you turn on.
The chart below shows the
impedance for all possible
combinations of 8-ohm speakers.

Pyle PSS6 Specifications

General

Type	AV repeater
Audio system	stereo
Product color	Black
LED indicators	No
Maximum resolution	- pixels
Compatible products	AS
Audio (L/R) out	6
RJ-45 input ports	0
External power adapter	Yes

Weight and Dimensions

Weight	115 g
Dimensions (WxDxH)	250 x 150 x 50 mm
