Note:
If each of the four speakers is 8 Ohms, the total speaker impedance of the combined
series/parallel connection described above is also 8 Ohms. Similarly, the total
speaker impedance is 4 Ohms or 16 Ohms if the speakers are 4 Ohms or 16 Ohms,
respectively.
4. Connect the speakers' (-) terminals to the amplier's COMMON terminal.
5. Connect the speakers' (+) terminals to the amplier's 4-Ohm, 8-Ohm, or 16-Ohm
terminal, depending on the TOTAL IMPEDANCE of the FOUR SPEAKERS.

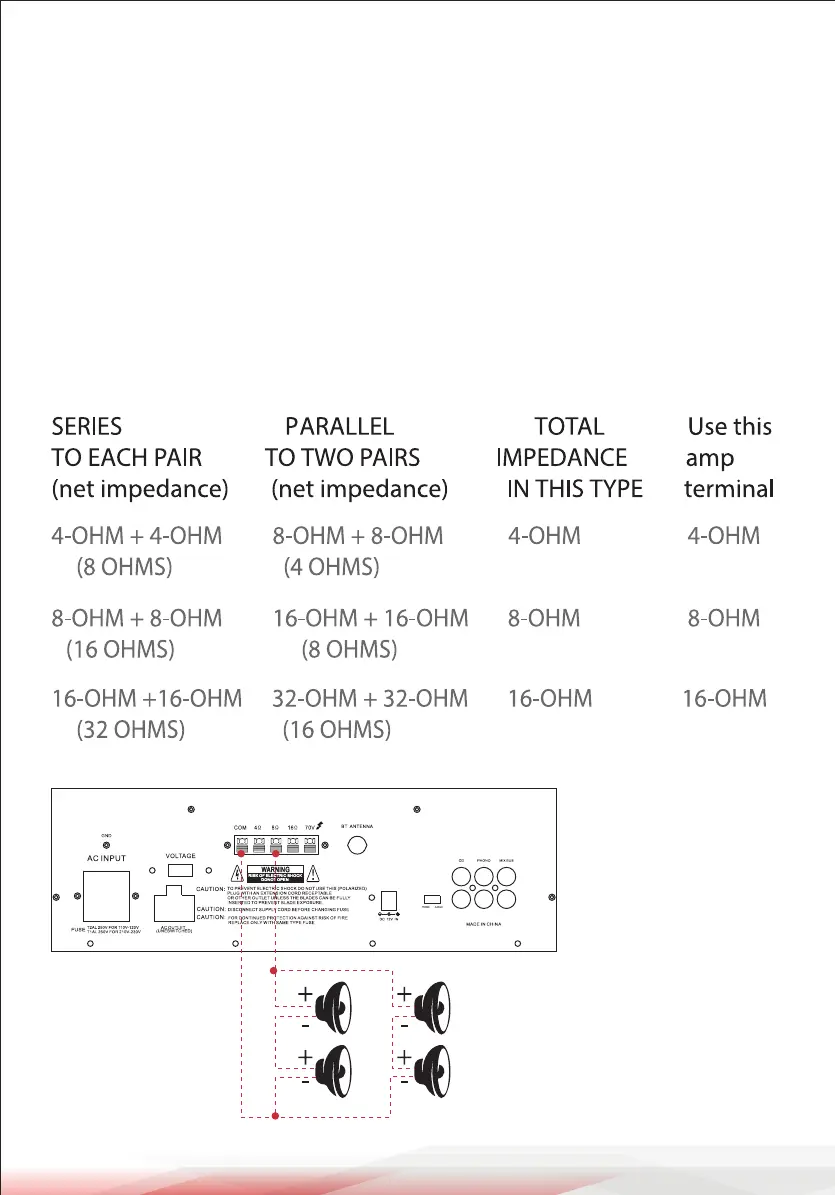

See the chart below for some samples system suggestions:
This example shows four 8 Ohm
Speakers, the total impedance is
8 ohms.
