System 2: Two (or more) speakers in series
1. Connect the LEFT SPEAKER (-) to the amplier COMMON terminal.
2. Connect the LEFT SPEAKER (+) to the RIGHT SPEAKER (-).
3. Connect the RIGHT SPEAKER (+) to the amplier's 4-Ohm, 8-Ohm, or 16-Ohm
terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each
speaker has an impedance of 8 Ohms, the total speaker impedance in this series
conguration is 16 Ohms.
NOTE: ADDITIONAL SPEAKERS MAY BE INCLUDED IN SERIES, BUT IT IS NECESSARY
TO CALCULATE TOTAL IMPEDANCE, AND CONNECT THE SPEAKER CIRCUIT TO A
TERMINAL OF APPROPRIATE IMPEDANCE. FOR EXAMPLE, IF THREE SPEAKERS OF
4-OHM ARE USED, TOAL IMPEDANCE IS 12 OHMS, YOU SHOULD CONNECT TO THE
16-OHM TERMINAL.
System 3: Two (or more) speakers in parallel
1. Connect the LEFT SPEAKER (-) to the RIGHT SPEAKER (-).
2. Connect BOTH the LEFT SPEAKER (-) and the RIGHT SPEAKER (-) to the amplier
COMMON terminal.
3. Connect the LEFT SPEAKER (+) to the RIGHT SPEAKER (+).
4. Connect BOTH the LEFT SPEAKER (+) and RIGHT SPEAKER (+) to the amplier
4-Ohm, 8-Ohm or 16- Ohm terminal, depending on the TOTAL IMPEDANCE of
the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker
impedance in this parellel conguration is 4 Ohms.
+
-

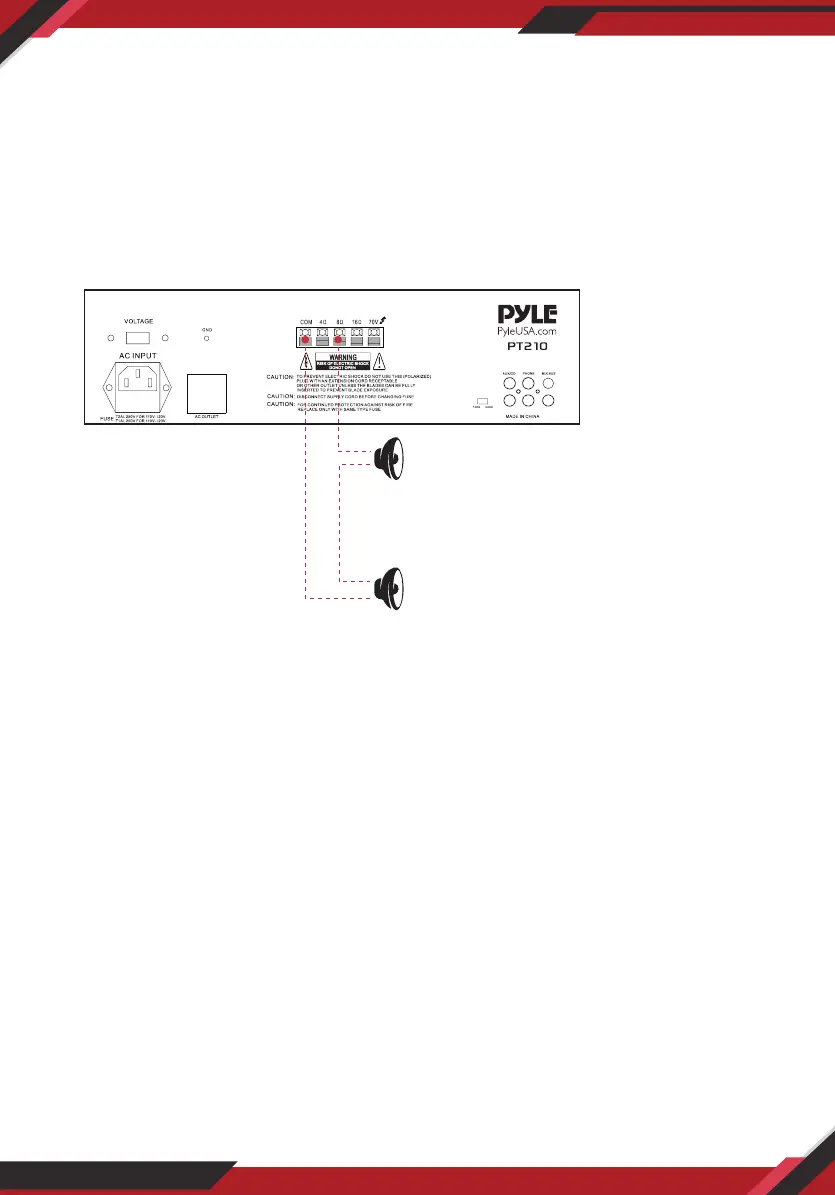

Right Speaker
+
-
Left Speaker
This example shows two
4 Ohm Speaker, the total
impedance is 8 Ohms.
