Pyle PT210 User Manual

www.PyleUSA.com
5

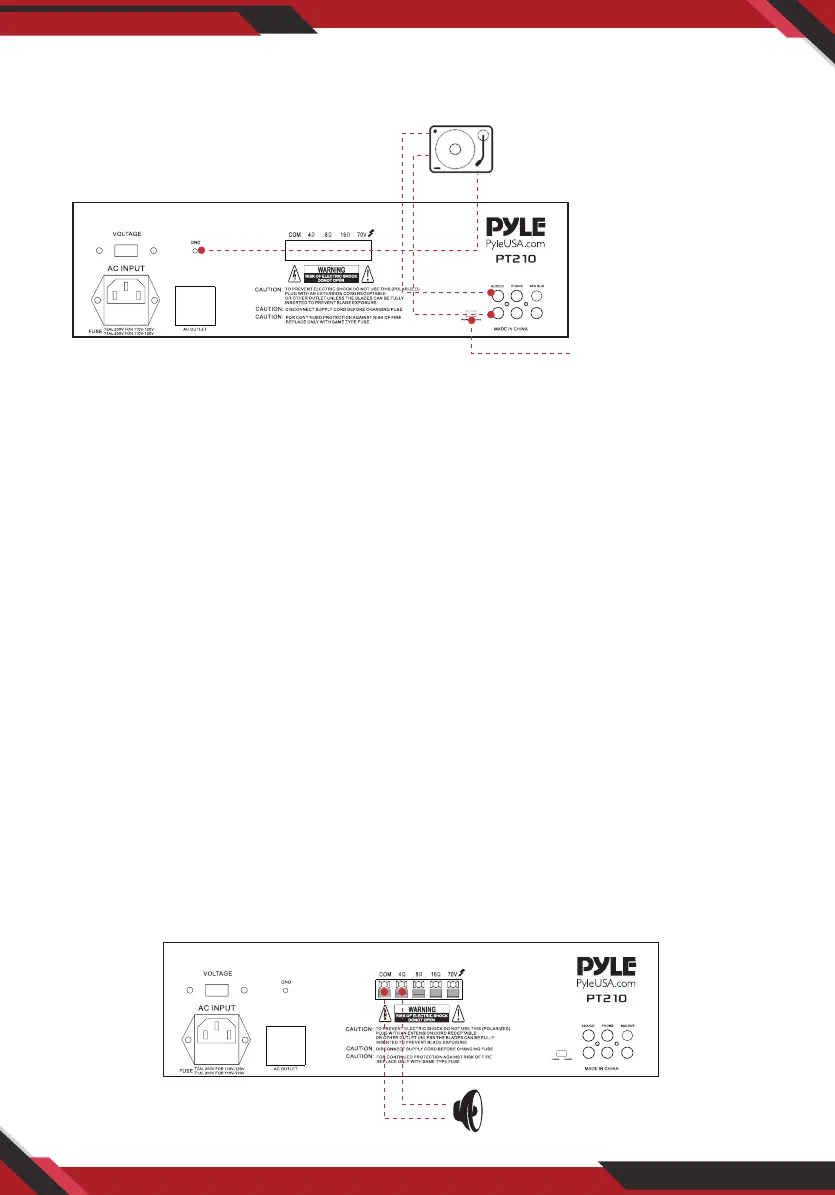

Connecting a turntable
In this Situation, set the PHONO and AUX/CD SELECTOR switch to the PHONO.
Speaker Connections
One or more speakers (4, 8, or 16-Ohm) speakers can be connected to the amplier
with or without transformers. However, before you connect any speaker to the
amplier, the total speaker impedance must be calculated in order to avoid
damage to the amplier. A total speaker impedance greater than 16 Ohms or less
than 4 Ohms can be cause this damage to occur.
To begin with, in order to ensure equal volume from each speaker, all connected
speakers should have the same impedance. A proper total impedance with the 4
to 16 Ohms range can be achieved by combining series and paralled speaker
connections. Please see the diagrams which follow the same impedance.
Finally, always use the shortest length of speaker wire possible of proper gauge.
Usually, 18-gauge wire is adequate for lengths under 25 feet, while 16-gauge is
used for greater lengths.
System 1: Single speaker system
1. Connect the speaker (-) terminal to the amplier COMMON terminal
2. Depending on the speaker being used, connect the speaker (+) terminal to the
amplier's 4-Ohm, 8- Ohm or 16-Ohm amplier terminal.
GND
Turntable
L
R
Set the switch to the
PHONO Position
+
-
This example shows
4 Ohm Speaker
