Pyle PT210 User Manual

www.PyleUSA.com
8

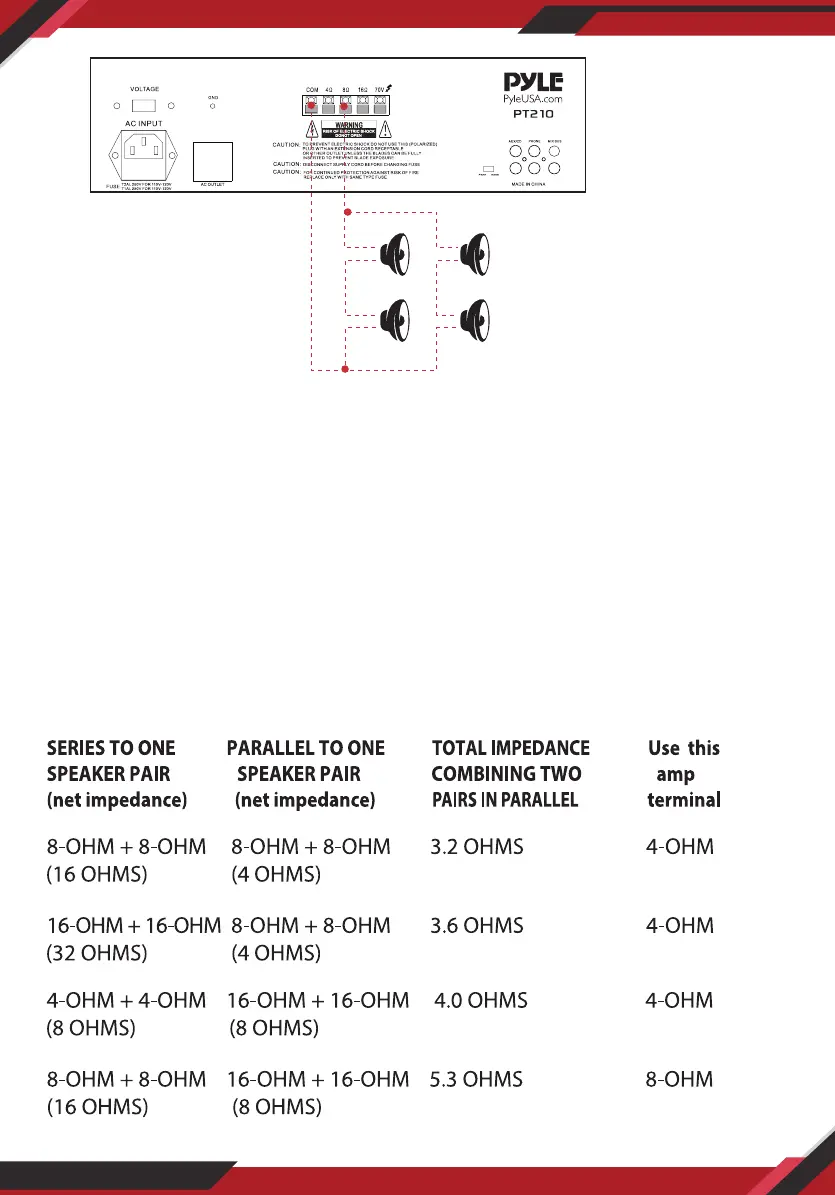

SERIES/PARALLEL VARIATIONS
Although the description above is for combining TWO SERIES PAIRS in a PARALLEL
hook up, you may also select to combine a SERIES PAIR and a PARALLEL PAIR in a
PARALLEL hook up. Simply be sure you have properly calculated the total impedance,
and connect the (+) speaker circuit wire to the proper amp terminal. For example,
if you use a SERIES PAIR of 8-Ohms speakers (the total impedance is 16 ohms) and
a PARALLEL PAIR of 8-Ohms speakers (the total impedance is 4 ohms) in a PARALLEL
hook up, the TOTAL IMPEDANCE of this system is 3.2 OHMS, so you should connect
the (+) speaker circuit wire to the 4-OHM terminal.
See the chart below for some samples system suggestions:
COMBINATION OF ONE SERIES PAIR AND ONE PARALLEL PAIR IN PARALLEL
+
-
+
-
This example shows four
8 Ohm Speaker, the total
impedance is 8 Ohms.
+
-
+
-
