(1) POWER SWITCH
Press to switch the power unit ON or OFF.
(6) AM/FM SELECTOR
(11) SUB.OUT VOLUME CONTROL
(10) FUNCTION DISPLAYED FLUORESCENT
WINDOW
(13) MASTER VOLUME CONTROL
Adjusts the volume level. Turn the knob.
clockwise to increase the volume.
Adjusts the blue lights and blue rings.
(14) ECHO CONTROL
Turn the knob to adjust the MIC echo
level.
(15) MIC TREBLE
Adjusts the treble of MIC.
(16) MIC BASS
Adjusts the bass of MIC.
(17) MIC VOLUME
Adjusts the volume level. Turn the knob
clockwise to increase the MIC volume.
(18) MIC INPUT JACKS 1&2
KARAOKE MIC connect to these jacks.
(8) MENU CONTROL
This is used to increment and decrement
level for the selected function of Master
Volume , Bass , Treble, Balance Auto
station seek.
，
(2) TUNING-
Radio tuning button.Decrements the radio
frequency.
(3) PREV<
This knob is used to select the preview
station which has been kept in system.
This knob is used to select the next station
which has been kept in system.
(4) TUNING+
Radio tuning button. Increments the radio
frequency.
(5) NEXT>
(7) MUTE SELECTOR
On/Mute selector
(9) INPUT
This is used to select the input sources:
DVD/CD、TUNER、IPOD/MP3、AUX
(12) LED DIMMER
(19) HEADPHONE JACK
(20) IPOD/MP3 JACK
Headphone connect to this jack.
IPOD/MP3 connect to this jack.
1
2 3 4
10
11
12
17 16 15 14
13
5 6
7
8 9
181920
>
>
<
<
INPU T
IPOD /MP3
MUTE
HEAD PHONE S
AM/FM /Tuner Hybrid Amp lif ier w /70V Outp ut
LED DI MMER
SUB. OUT
MAST ER VOLU ME
OFF
MAX
(3) REC .LINE OUTPUT JACKS
(2) AUDIO INPUT JACKS
(1) TUNER ANT
Connect the audio output jacks of
DVD/CD、AUX to these jacks.
Connect for AM and FM antennas.
(7) 70V SPEAKER OUTPUT TERMINALS
(6) SPEAKER OUTPUT TERMINALS8 ohms
Connect your the 70V speaker system(s) to
these terminals.
Connect your speaker system to
these terminals.(8ohms)
Connect the RECORD input jacks to
these jacks.
(9) 110V/220V SWITCH
(8) COOLING FAN
According to power voltage ,push this button
to the station of the110V or 220V.
(4) PRE OUTPUT JACKS
Connect the professional input jacks
to these jacks.
(10)POWER CORD
Connect to AC 110V/60Hz&220V/50Hz outlet.
(5) SUB-WOOFER OUTPUT JACKS 1&2
3 4
1
5
6
7
2
4
9
8
10
3
AUX
AUX
AUD IO INPU T
AUD IO OUTP UT
CD/D VD
CD/D VD
CAU TION: TO R EDUCE T HE RISK O F ELECT RIC SHO CK, DO NO T
REM OVE COV ER OR BAC K. OPEN ING THI S UNIT WI LL VOID
WARR ANTY. NO US ER SHOU LD SERV ICE ANY PAR TS INSI DE.
REF ER SERV ICIN G TO A QUAL IFIED S ERVIC E PERS ONNEL .
！
RIS K OF ELEC TRIC SH OCK
DO NO T OPEN
WAR NING
110V ~ 60Hz
220 V ~50Hz
FUS E
~110 V T5A H
~22 0V T3AH
COM
ENGINE ERE D IN JA PAN
DESIGN ED IN THE USA
MIXING AM PLIF IER O UTPU T
8oh ms COM 70V
VOLTA GE SEL ECTO R
COOLIN G FAN

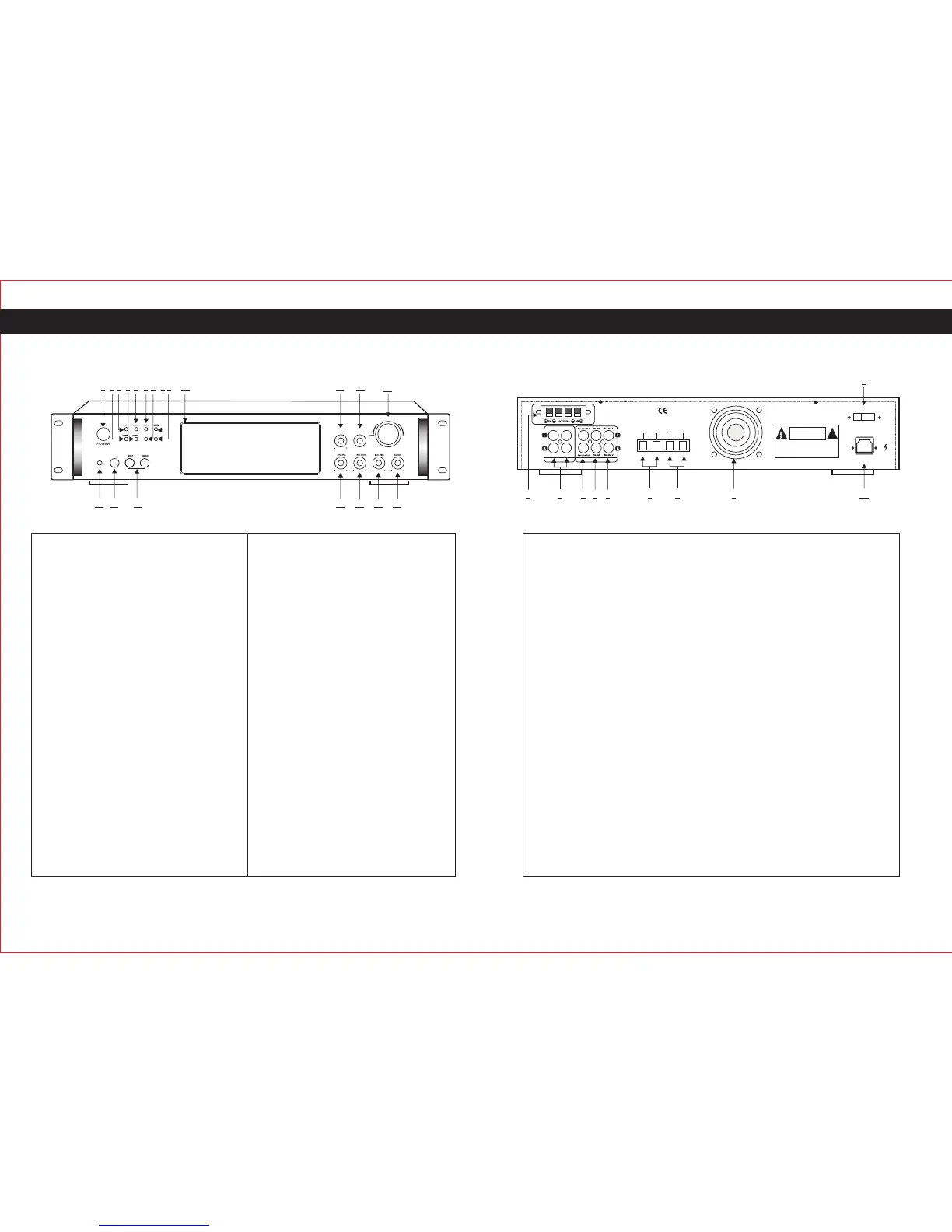

Front panel Rear panel
