Pyle PT8050CH User Manual

www.PyleUSA.com
3
www.PyleUSA.com
4
Front Panel & Back Panel
1. Separate MIC 1 and MIC2 Volume Control
2. Separate MIC 1 and MIC2 Tone Control
3. Microphone Voice Priority Level Control
4. Separate AUX 1, AUX2, and AUX3 Input Level Control
5. Separate AUX 1, AUX2, and AUX3 Tone Control
6. AUX/MP3 (USB & SD) Input Level Control
7. AUX/MP3 (USB & SD) Input Tone Control
8. BT/USB/SD/AUX Function Control USB/SD Ports
AUX IN: 3.5mm AUX Input
MODE: BT/USB/SD/AUX/FM Switch
: Button Doubles as Previous Song
: Button Doubles as Play/Pause
: Button Doubles as Next Song
VOL+/VOL- : Button for Volume + and Volume -
9. BT Antenna
10. Power ON/OFF Switch
11. Power On/O LED
12. Separate Channel 1-8 or 1-12 Channel Output Volume Control
13. Separate Channel 1-8 or 1-12 Channel Output LED Signal
The Indicator Lights when the Output is working.
14. MIC 1 INPUT JACK & MIC1 Priority Function On/O Button
Allows you to connect up to 6.35 type microphone, and can be used as the
normal dynamic MIC input.
15. Power Input
16. Power Selector (110V/60Hz or 230V/50Hz)
17. Speaker Stereo Output Binding Posts
18. (8) Separate RCA Audio Inputs with Separate Level Control
(8) Separate RCA Audio Output with Separate Level Control
19. Separate MIC1 & MIC2 TRS Inputs
20. Separate Stereo AUX 1, AUX2, & AUX 3 RCA Inputs
21. Line Stereo RCA Outputs

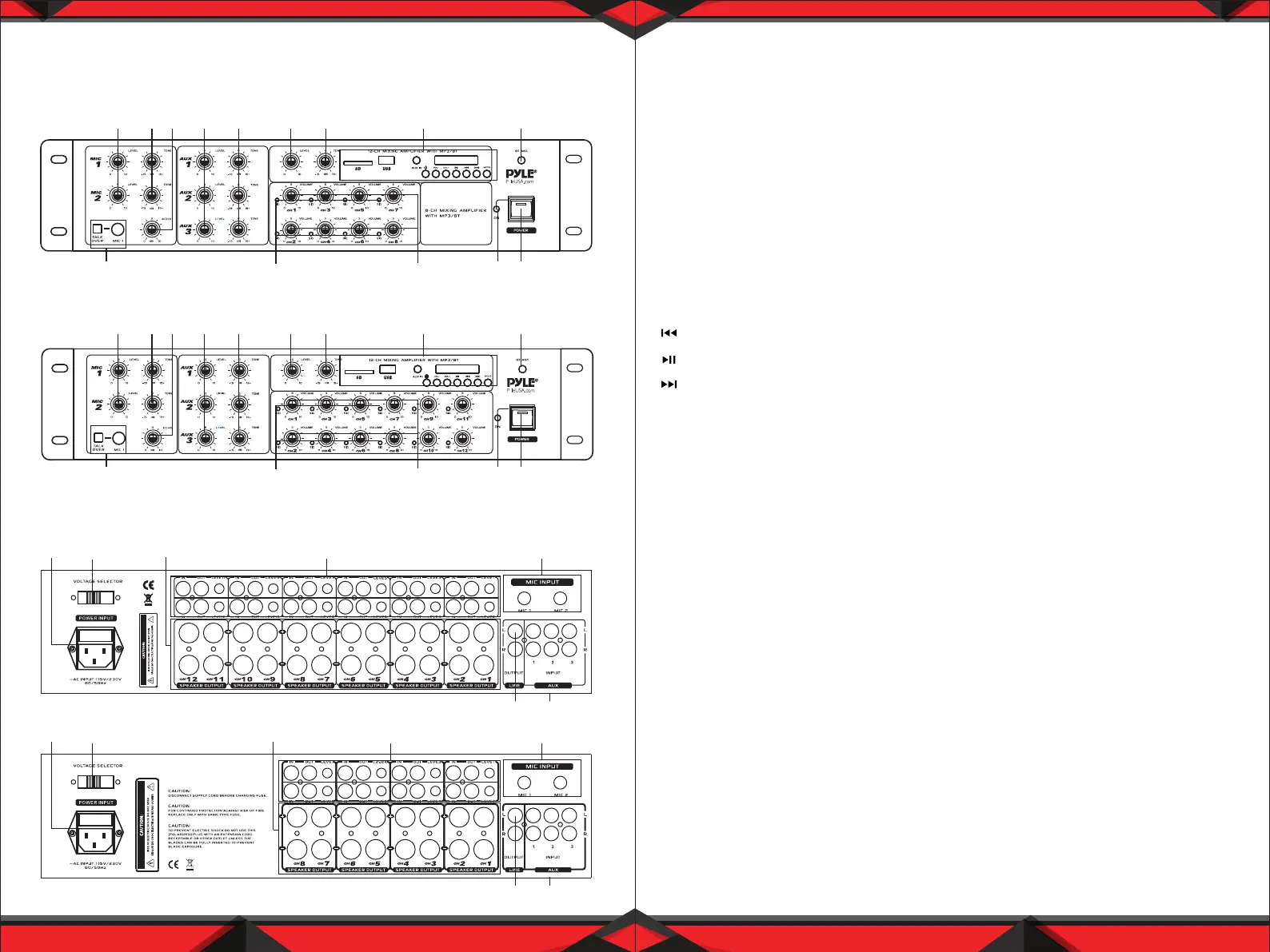

Features and Controls:
FRONT PANEL
PT8050CH
PT12050CH
BACK PANEL
10111213
PT 8 0 50CH
1 2 3 4
5
6 7 8
14
9
10111213
1 2 3 4
5
6 7 8
14
9
PT 1 2 050C H
15 16 17 18 19
21
20
15 16 17 18 19
21
20

Pyle PT8050CH Specifications

General

Brand	Pyle
Model	PT8050CH
Category	Amplifier
Language	English
