Pyle PTA4 User Manual

www.PyleUSA.com
4
www.PyleUSA.com
5
Your new PTA4 Stereo Power Amplier
gives you the power and versatility you need in a professional sound system.
Its wide frequency response make it suitable for amplifying music or vocal
program material. The front located 3.5mm jack allows you to connect the input
of various of MP3 devices conveniently and the MIC PAGER/MIXING function
oers the exibility of using it at paging or musical events. It can be used for
meeting halls, house, restaurant, school, stores, live bands, or oce.

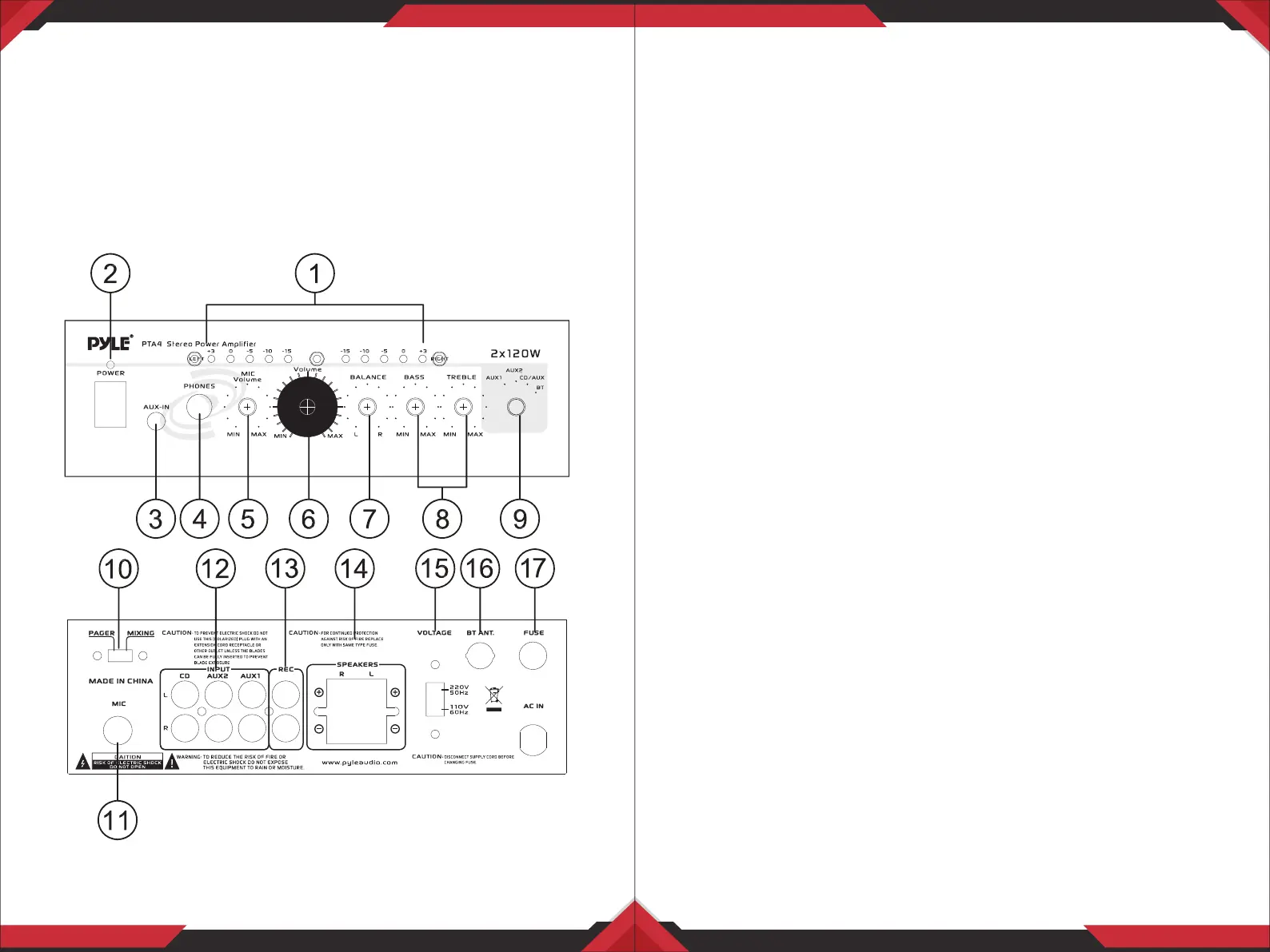

FEATURES AND CONTROLS
1. Blue LED Output Level Display
2. Power On/O and LED Indicator: Main power switch, the indicator lights
when the amplier is turned on.
3. CD/MP3 3.5mm AUX Input Jack (FRONT): Lets you easily connect the
computerized MP3 Device (player) sources,such as PC (CD ROM), Laptop,
Walkman, iPod, and Cell Phone.
4. 1/4" PHONE Jack: Accepts headphones with 1/4" plug.
5. MIC Volume Control: Lets you adjust the volume of connected MIC to the
proper setting.
6. MASTER Volume Control: Lets you control the overall volume level.
It doesn't aect the volume of MIC.
7. BALANCE Control: Lets you adjust the sound balance between the left and
right of amplier outputs.
8. BASS and TREBLE Controls: Allows you to boost or attenuate bass and treble
for the desired sound.
9. AUX1/AUX2/CD/AUX/BT: Lets you select the desired input music source.
10. Switchable MIC PAGER and MIXING Modes: Set to PAGER, the signal from
AUX 1/AUX 2/CD will be attenuated BY -12dB and the signal from MIC will
override to page (Auto Talkover), it is good for paging system. Set to MIXING,
the signals from AUX 1/AUX 2/CD and MIC will be existed at the same time, it
acts like playing at KARAOKE event.
11. 1/4" MIC Input Jack: Lets you connect a microphone with a 1/4" plug.
12. AUX 1/AUX 2/CD RCA Inputs: Lets you connect most high level audio
sources such as CD player, tape deck, tuner, camcorder, or VCR.
13. REC RCA Output: Lets you connect the amplier to a tape deck for recording.
14. Push Type Speaker Terminal: Lets you easily connect speaker wires directly
to the amplier. The speaker impedance can be ranged from 4 to 8 Ohms for
the general stereo output. The total speaker impedance must be at least 4-Ohm
per channel at stereo mode.
15. 110/220 Voltage Selector: This amplier has selectable input voltage from
110V/60Hz (the standard in USA and CANADA) to 220V/50Hz (for EUROPEAN
operation). Please make sure the switch is in the proper position before
operating, otherwise, the severe damage will be incurred and not covered by
the warranty.
16. Wireless BT Antenna
17. Replaceable Power Fuse: The amplier uses a fuse for protection against
surges and short circuit. If the amplier suddenly turns o and will not turn
on, check the fuse and if necessary replace it with a 1.5-amp, 250-volt,
fast-acting, 5x20mm fuse (not supplied).
