2）Power Terminal Output

Connect to inverter,

P-Combiner-HV-3, 6 AWG cable for maximum 50A current

P-Combiner-HV-6, 4AWG cable for maximum 100 A current

3）Grounding Point

For grounding cable, ensure after connection, the grounding resistance smaller

than 0.1Ω

4）Door Lock

Using the lock provided together with box.

*Must lock correctly after installation.

5）Disconnect Switch

Switch ON/OFF of mains circuit.

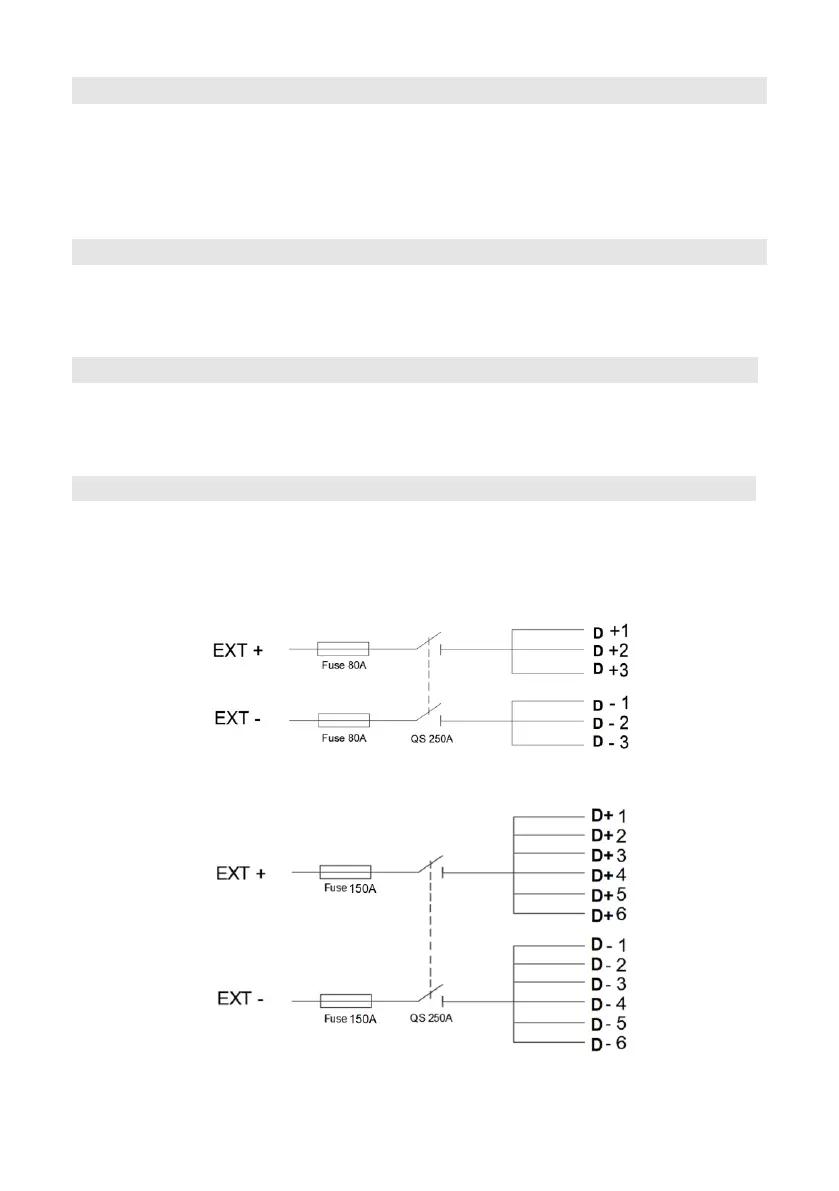

2.2 Electrical Diagram

P-Combiner-HV-3

P-Combiner-HV-6
