Pyramid PB1644X - Pyramid Electrical Connections; PB844 4-Channel Electrical Connections; Pyramid Mono Input Connections; PB744 2-Channel Mono Input

10
PB844
4ch amp PB844

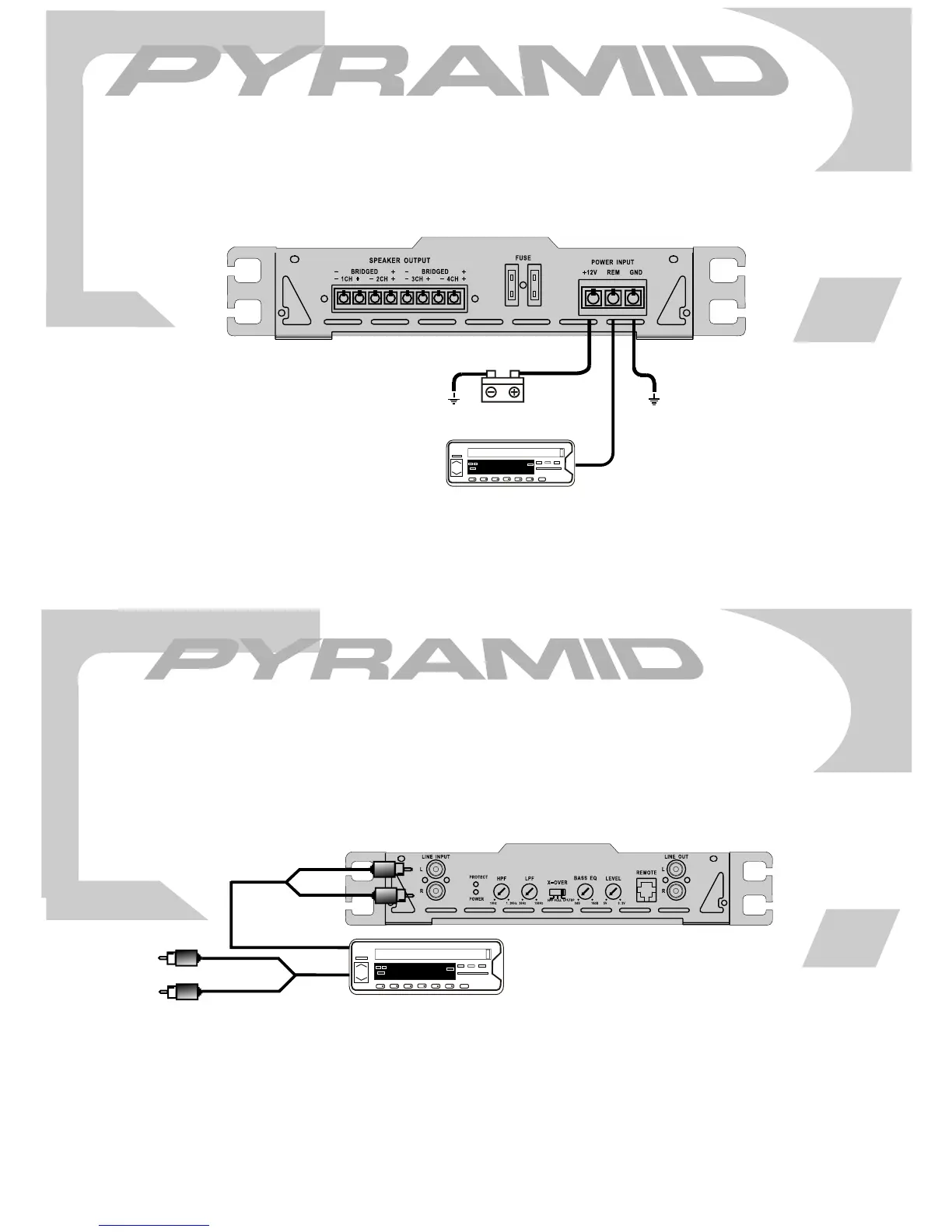

electrical connections
+12V battery
to remote turn-on +12V
head unit
96.8
2ch amp PB744
13
PB744
using low level inputs
mono input connections
PLEASE NOTE! If using high level inputs,
do not use the low level RCA inputs at the
same time!
head unit
Y Adaptors
To a sencond amplifier
96.8
