Q Acoustics Q3090C User Manual

9
Connecting Passive Loudspeakers
Stereo Connections
Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT
channel of the amplier. Connect the BLACK (–) terminal of the loudspeaker to the matching BLACK,
Negative (–) terminal of the amplier. Repeat this procedure for the LEFT channel.
In the case of the 3050 you may use any convenient Positive(+) or Negative (–) terminal. Refer to the
illustration below.
Bi-Wiring
Directly connecting the treble and bass networks of a loudspeaker to an amplier improves both
bass performance and dynamic range.
To bi-wire: Prepare two twin cables for each loudspeaker. Unscrew all the loudspeaker terminals
and remove both links. Now connect the treble terminals and the bass terminals to the amplier
following the procedure described in Standard Wiring. Refer to the illustration below.
When your speakers are connected: Switch on the system and play some music at moderate level.
Fine tune the speaker placement to suit.

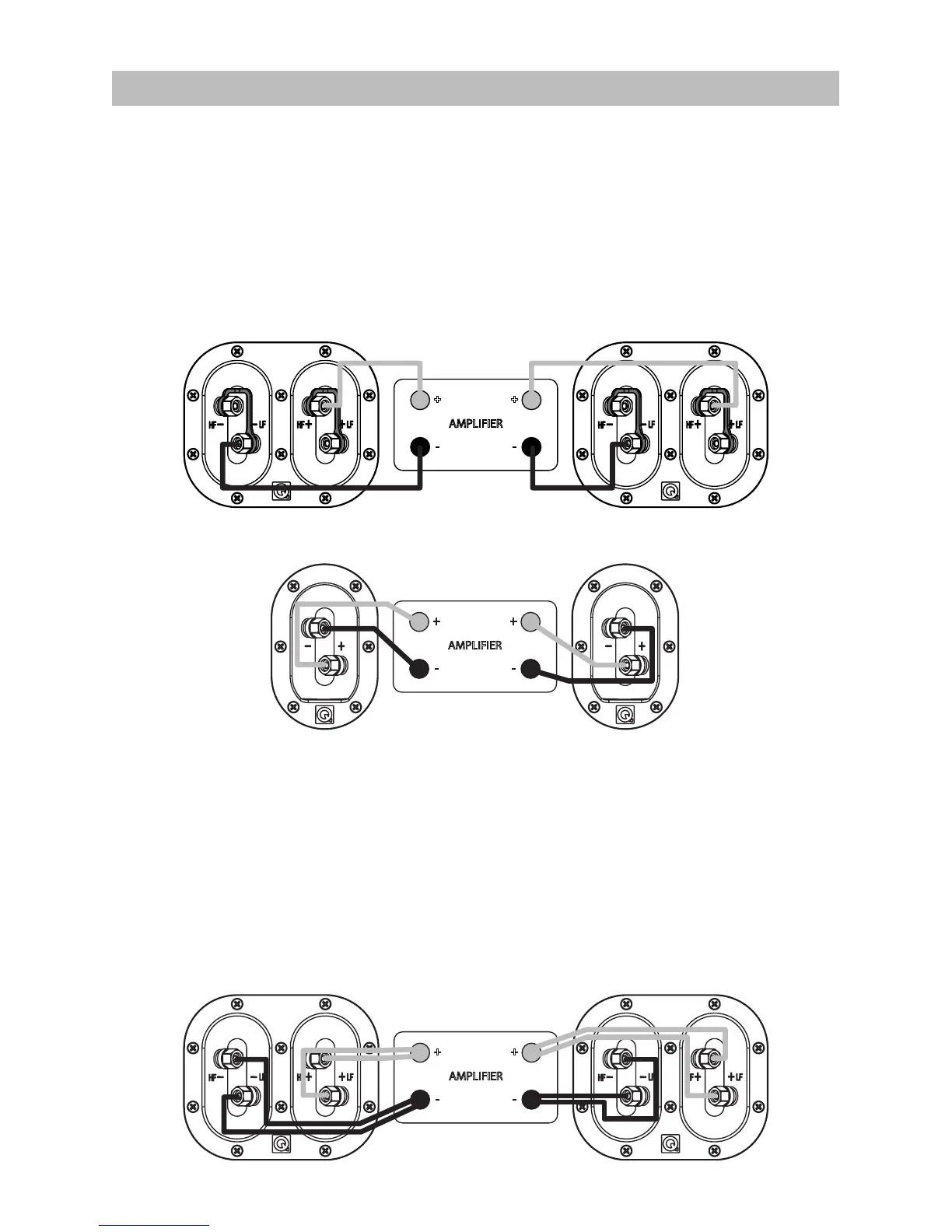

RIGHT SPEAKER
Standard Wiring: 3050
LEFT SPEAKER
AMPLIFIER
+
-
+
-
RIGHT SPEAKER
Bi-Wiring: 3050
LEFT SPEAKER
AMPLIFIER
+
-
+
-
RIGHT SPEAKER
Standard Wiring: 3010, 3020 & 3090C
LEFT SPEAKER
AMPLIFIER
+
-
+
-
