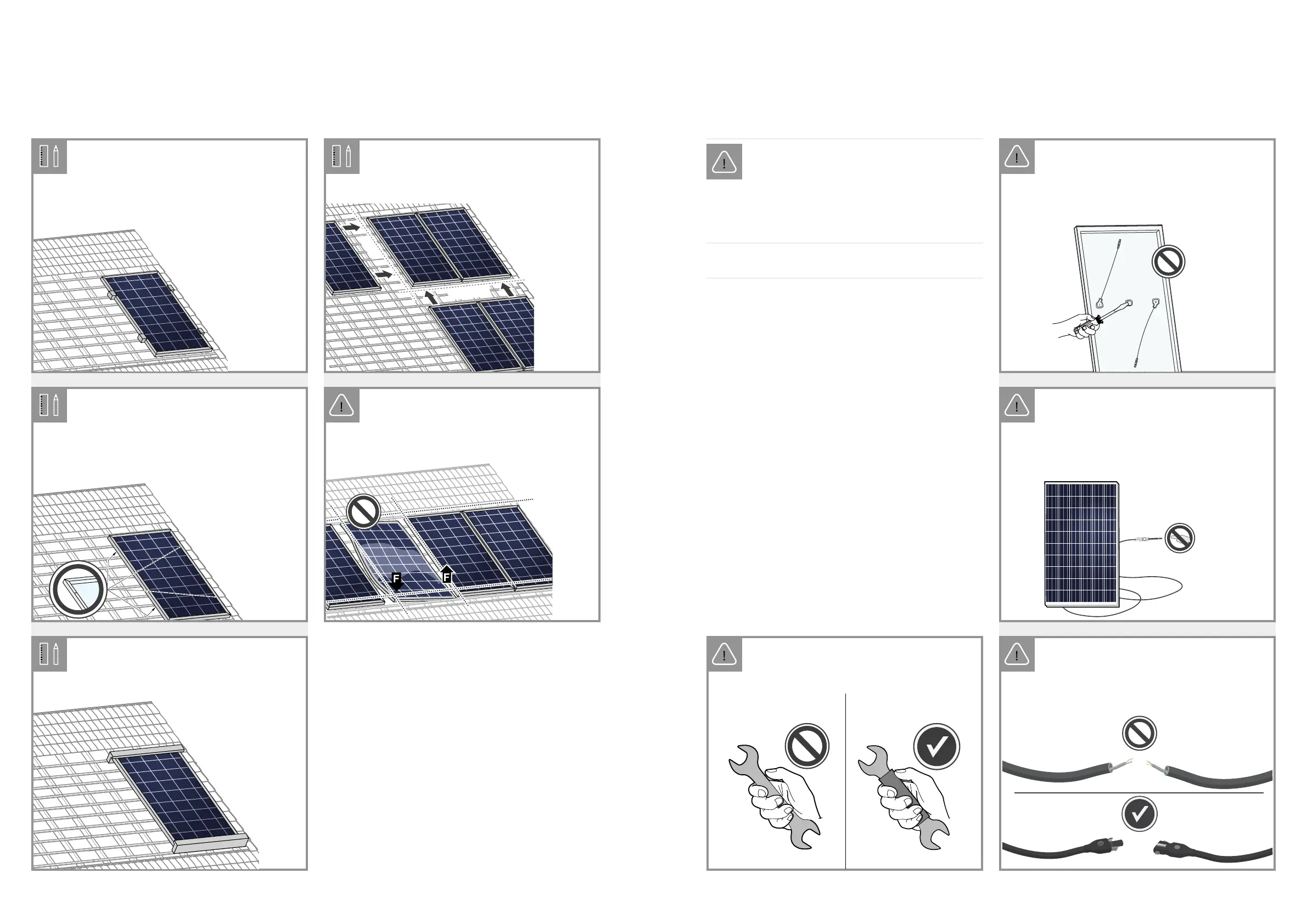

14 15INSTALLATION AND OPERATION MANUAL SOLAR MODULES Q.PEAK DUO-G10.X – Q CELLS INSTALLATION AND OPERATION MANUAL SOLAR MODULES Q.PEAK DUO-G10.X – Q CELLS 1514
Option 1:
Ä Fasten the module with 4 clamps in the
specified clamping range,
see Fig. 2, p. 7.
Ä Tighten clamps according to
manufacturer’s instructions.
Ä Maintain an interval of at least 10 mm between
two modules along the short side and 5 mm
along the long side.
10 mm
5 mm
EU
Note! Module damage may occur!
Ä Do not subject modules to mechanical tension.
Max. torsion 10 mm/m.
Option 2:
Ä Install the module at the 4 mounting points,
see Fig. 2, p. 7.
Ä Tighten screws according to
manufacturer’s instructions.
3 INSTALLATION
3.3 MODULE INSTALLATION
DANGER!
Risk of fatal injury due to electric shock!
When disconnecting an electric circuit carrying direct current,
electric arcs can occur that may result in life-threatening injuries.
Ä Do NOT unplug the cable when under load.
Ä Do NOT connect any exposed cable ends.
Ä Electrical work may only be performed by qualified and
skilled personnel (see page 3).
A solar module generates electrical current and voltage even
at a low intensity of illumination. Sparks and electric arcs may
result from the separation of a closed circuit. These can result
in life-threatening injuries. The danger increases when several
modules are connected in series.
Ä Please be aware of that the entire open circuit voltage is
active even at low levels of solar irradiation.
Ä Please follow the valid national regulations and safety guidelines
for the installation of electrical devices and systems.
Ä Please make sure to take all necessary safety precautions.
With module or phase voltages of more than 120 V, the safety
extra-low voltage range is exceeded.
Ä Carry out work on the inverter and the wiring with extreme
caution.
Ä Ensure that the modules are disconnected at the inverter
prior to separation.
Ä Be sure to observe the time intervals specified by the inverter
manufacturer after switching off the inverter.
Ä Make sure that the plugs can not be connected unintentionally.
Ä Before working on the contacts, check them for safety extra-low
voltage.
Danger! Risk of fatal injury due to electric
shock!
Ä Never open the junction box.
Ä Do not remove bypass diodes.
Danger! Risk of fatal injury due to electric
shock!
Ä Never touch live contacts with bare hands.
Ä Cover connectors by suitable protective caps
until installation.
Danger! Risk of fatal injury due to electric
shock!
Ä Insulate any exposed cable ends.
Ä Only connect cables with plugs.
Danger! Risk of fatal injury due to electric
shock!
Ä Only use dry, insulated tools for electrical
work.
4 ELECTRICAL CONNECTION
4.1 SAFETY
Option 3:
Ä Install the module using mounting profiles,
see Fig. 2, p. 7.
