Surface Mount Under a Table, on a Wall, or Behind a Display
When surface-mounting an SPA-Qf amplifier, use two (2) joining plates, six (6) flat head screws, and four (4) screws for attaching the
unit to the surface (not supplied).
NOTE: Orientation of the SPA-Qf unit does not impact thermal performance. However, to prevent thermal limiting of the
amplifier, you must adhere to the operating parameters stated in the "Environmental" on page 3. This is especially
important when mounting the amplifier behind a display.
CAUTION: When installing the amplifier under a table, consider where individuals will be seated. Continuous skin
contact with the amplifier must be avoided.
Flat Head
Screws
Optional – Adjusting Front Panel Alignment

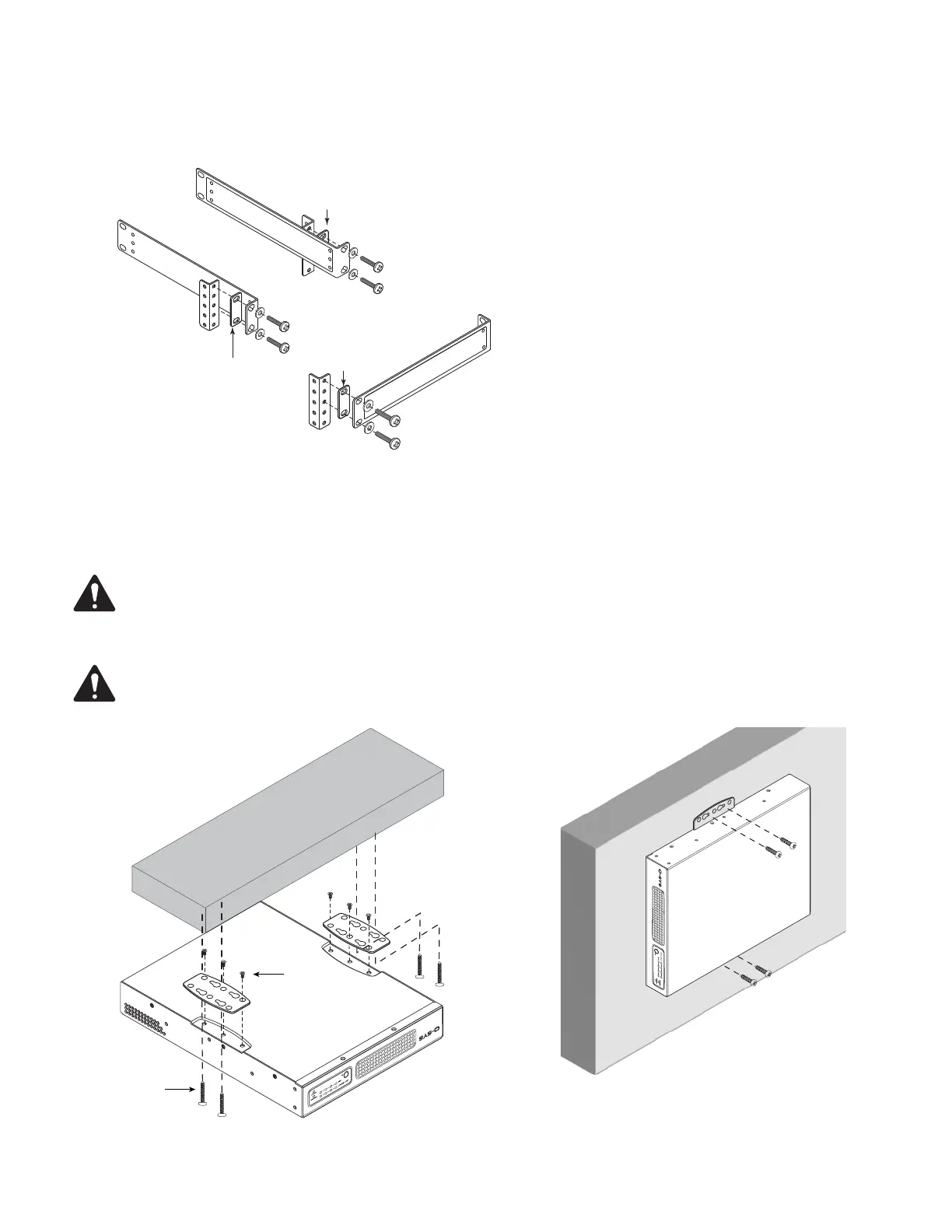

To achieve proper front panel alignment with other rack equipment, use the two (2) supplied rack ear spacers. (Rack and rack-mounting
screws and washers are pictured but not supplied.)
Spacer
Spacer
Spacer
Note: When mounting the amplifier in a vertical orientation,
the front and rear panels should be perpendicular to the
floor, as shown. This helps prevent dust buildup.
To Next Page
