Rack Installation
Ventilation Requirements
There must be at least 6 inches of open space measured from back of amplifier.
NOTE: To maintain safe operating temperatures, Q-SYS SPA-Qf
Series amplifiers contain advanced protection circuitry that reduces
output power to lower the operating temperature when needed.
Insufficient ventilation may result in the amplifier reducing output
power during normal operation (indicated by the Limiter/Protect
LEDs illuminating red). To reduce the possibility of thermal limiting,
and to allow for proper heat dissipation, keep the space directly to
the rear of these amplifiers free of obstacles.

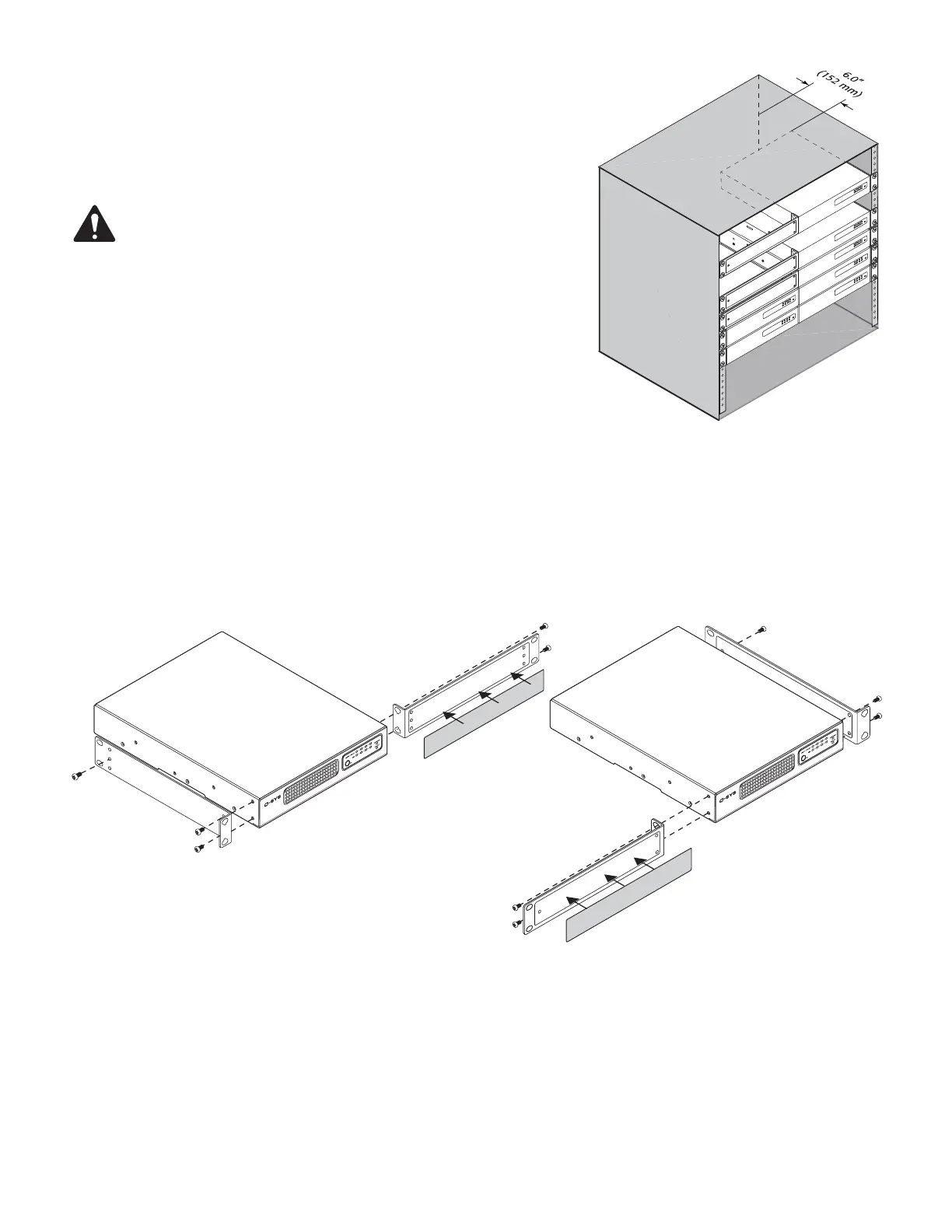

One Amplifier in 19-inch Rack (Left or Right Mount)
Install one amplifier on either the left or right side of a standard 19-inch rack using two (2) rack ears, one (1) rack ear cover label, and
five (5) Phillips pan head screws.
Front Panel
Top Side
Top Side
Front Panel
To Next Page
