11

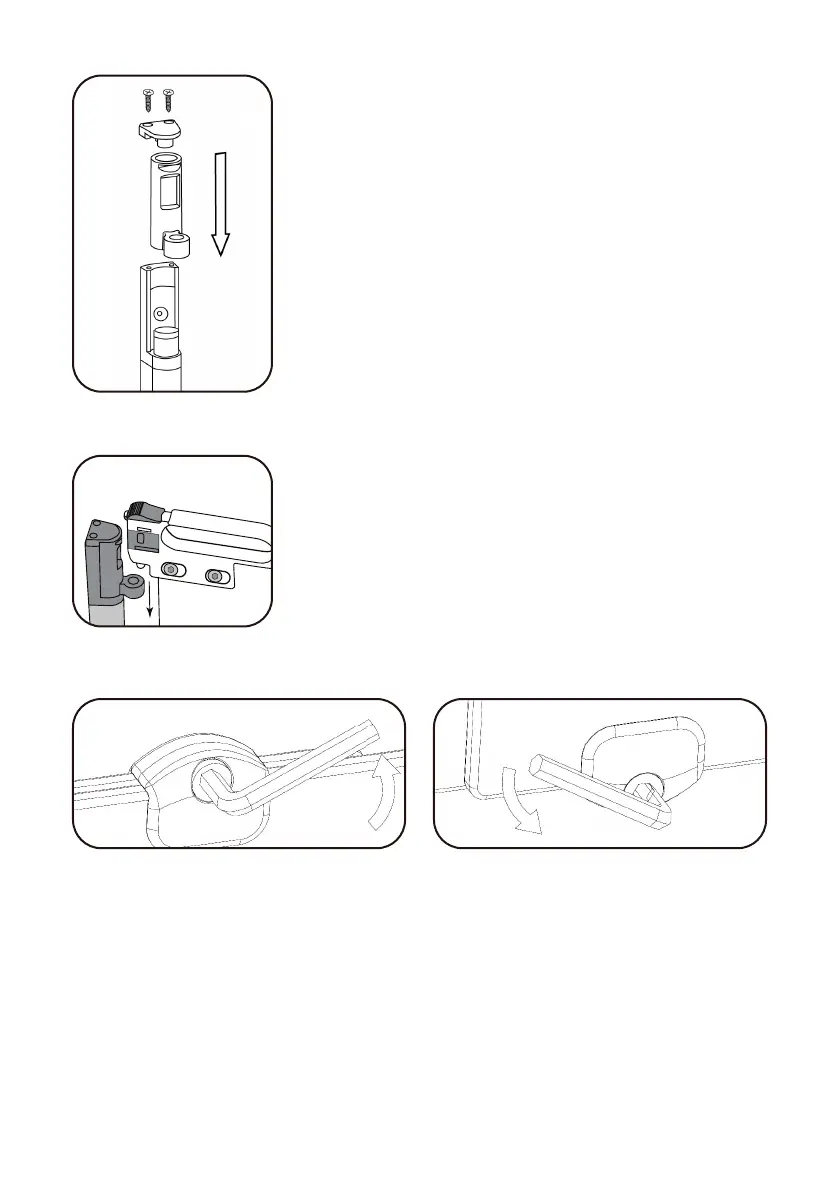

Step 6
If the gate is mounted at any angle
within 180 degrees, make sure to
reinstall the Main Lock, so it points
directly toward the Hinge rail.
Install the Top Cover and insert the
screws to hold it in place.
Step 7
Gently hang the gate on the hinges.
Step 8
Using both Allen Wrenches, slightly loosen the four
clamps that hold the two gate panels together.
Spread the gate panels apart until the handle side
reaches the lock on the Locking Rail. Lift gate up and
guide it into the locked position (lining up both top and
bottom locks) by pushing down on the handle when
correctly lined up.
Note: The SecureTrack® screws are fixed and do not need
to be loosened up or moved.
