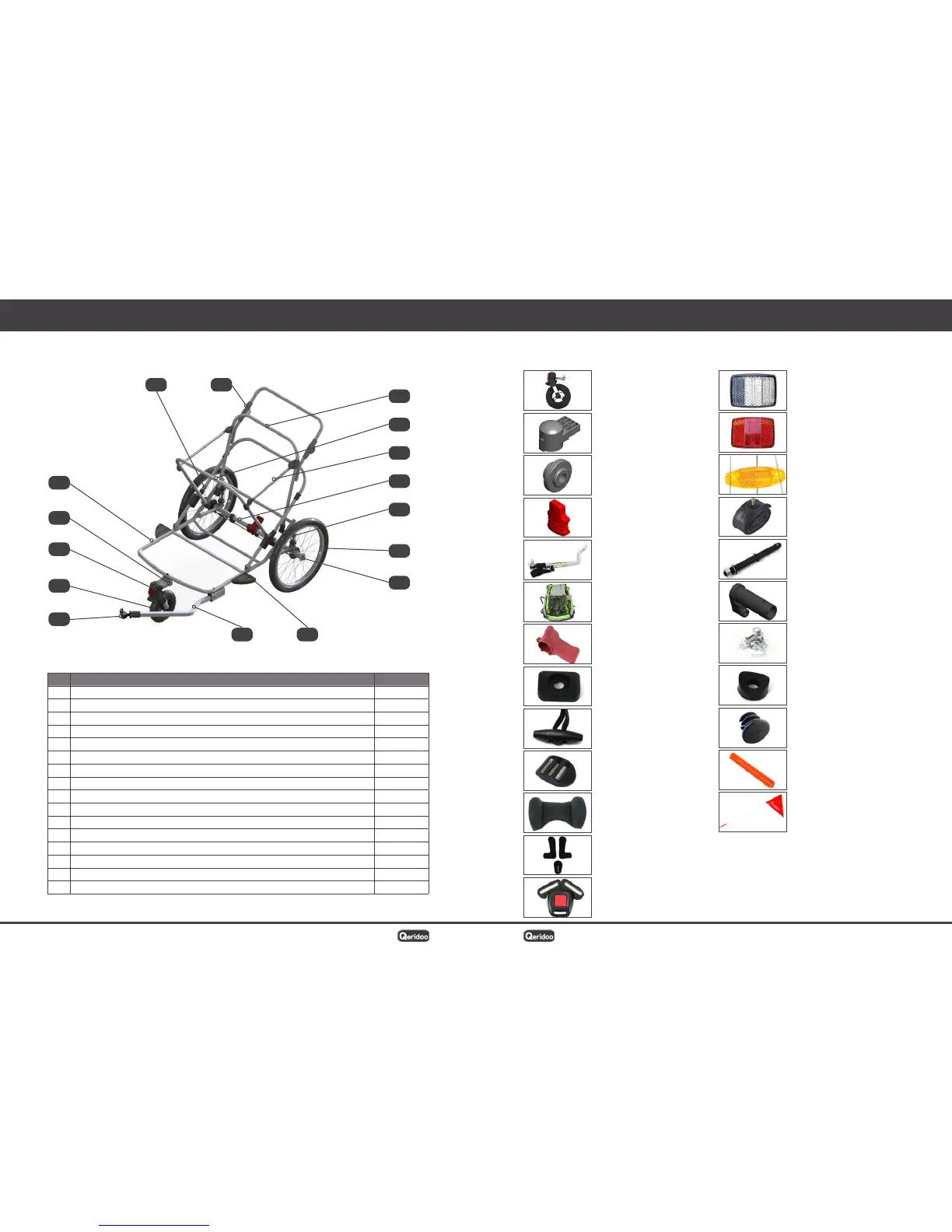

34 – 02|2017 – Subject to change. Speedkid2 Speedkid2 Subject to change. – 02|2017 – 35
AppendixAppendix
Frame components
Pos. Article Article no.
1 FX folding system rod TR-Q27
2 Push handle HD-Q2
3 Roof support, rear DTH-Q2
4 Roof support, front DTV-Q2
5 2 stabiliser rods with tube clamps SIG-58
6 Rear axle (incl. parking brake) ACHR-Q2
7 Suspension (3.2 mm spring element) FED-LUF-5
8 20" wheel R147-17
9 Rubber cap DECK-88
10 Wheel guard (wheel deflector) RADA-Q2
11 Tow bar HB17-20
12 Coupler (complete) 56897-KLL
13 8.5" air wheel (for buggy wheel) BG-589L
14 Wheel suspension (for buggy wheel) BGH-Q2
15 Quick-release clamp (for buggy wheel) SCNE-Q2
16 Main frame (lower part) HPT-Q2
Other spare parts
Spare parts
(valid from 2017)
8.5" buggy wheel, complete
(with wheel suspension and
quick-release clamp)
Art. no.: BG-555K
Connecting piece
(buggy wheel)
Art. no.: BG-UN-5
Disk for quick-release clamp
(buggy wheel)
Art. no.: BPP-UN-7
Mode switch
(buggy wheel)
Art. no.: BGRK-UN
Complete tow bar
(incl. coupler)
Art. no.: HB17-20
Cover incl. harness system
(blue, green, red)
Art. no.: BEZUG-Q2-17
Parking brake pedal
Art. no.: FPB-Q2
Screw washer for fitting the
cover
Art. no.: HAL-589
Toggle fastener with strap
Art. no.: KÖRD-55
Harness buckle
Art. no.: GRT-899
Head rest
Art. no.: KOP-Q8
Harness pad set
Art. no.: BGH-Q254
Harness catch
Art. no.: GUR-69
Light reflector, white
Art. no.: LRF-Weiss
Light reflector, red
Art. no.: LRF-ROT
Light reflector, yellow
(for wheel spokes)
Art. no.: LRF-Gelb
20" hose
Art. no.: 789SCH
Push-in axle / hub axle
Art. no.: ZT6HTU
Plastic cylinder for mounting
the wheel and parking brake
rod
Art. no.: BGH-30
Screw set
(1 set with all the required
assembly screws)
Art. no.: SCHR-Q2
Spacer
Art. no.: DIST-555
Tube cap
Art. no.: RDLL-Q8
Pennant holder, centre piece
Art. no.: WIM-H-UN
Pennant, complete
(incl. extension rod and centre
piece)
Art. no.: 121256
