Enter two-way self-locking + two-way interlocking mode;
7. Press the learning button on the module 7 times. After the remote control learns,
Enter two-way interlock + two-way interlock mode;
Explanation of the purpose of this LED output signal:
When any button of the remote control is pressed, the receiving end decodes and decodes
correctly, the LED will output a high-level signal 1. When the remote control button is
released, the LED output will become 0.
That is: it will be output only when the reception is valid and decoded correctly.

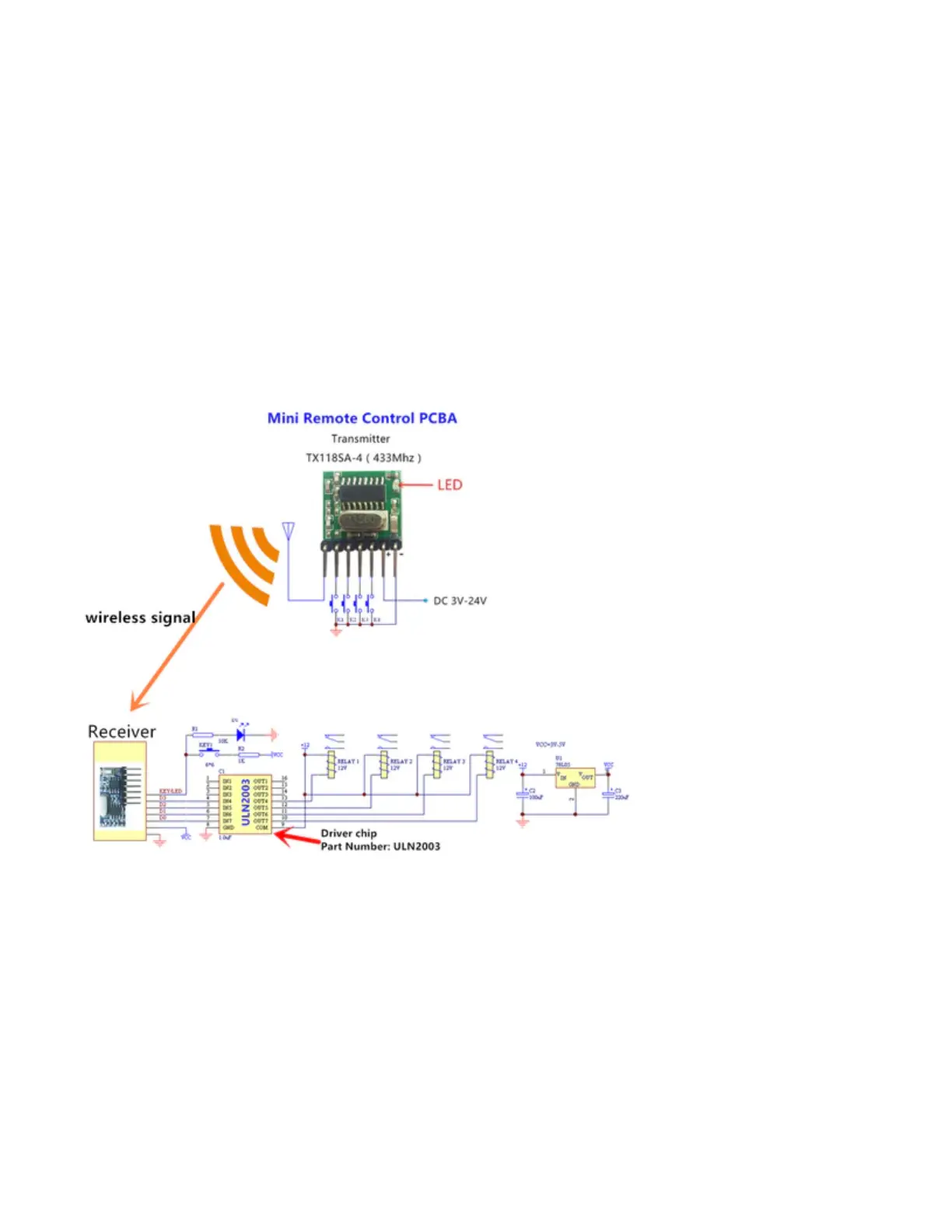

Wiring schematic diagram of RX480E and TX118SA
