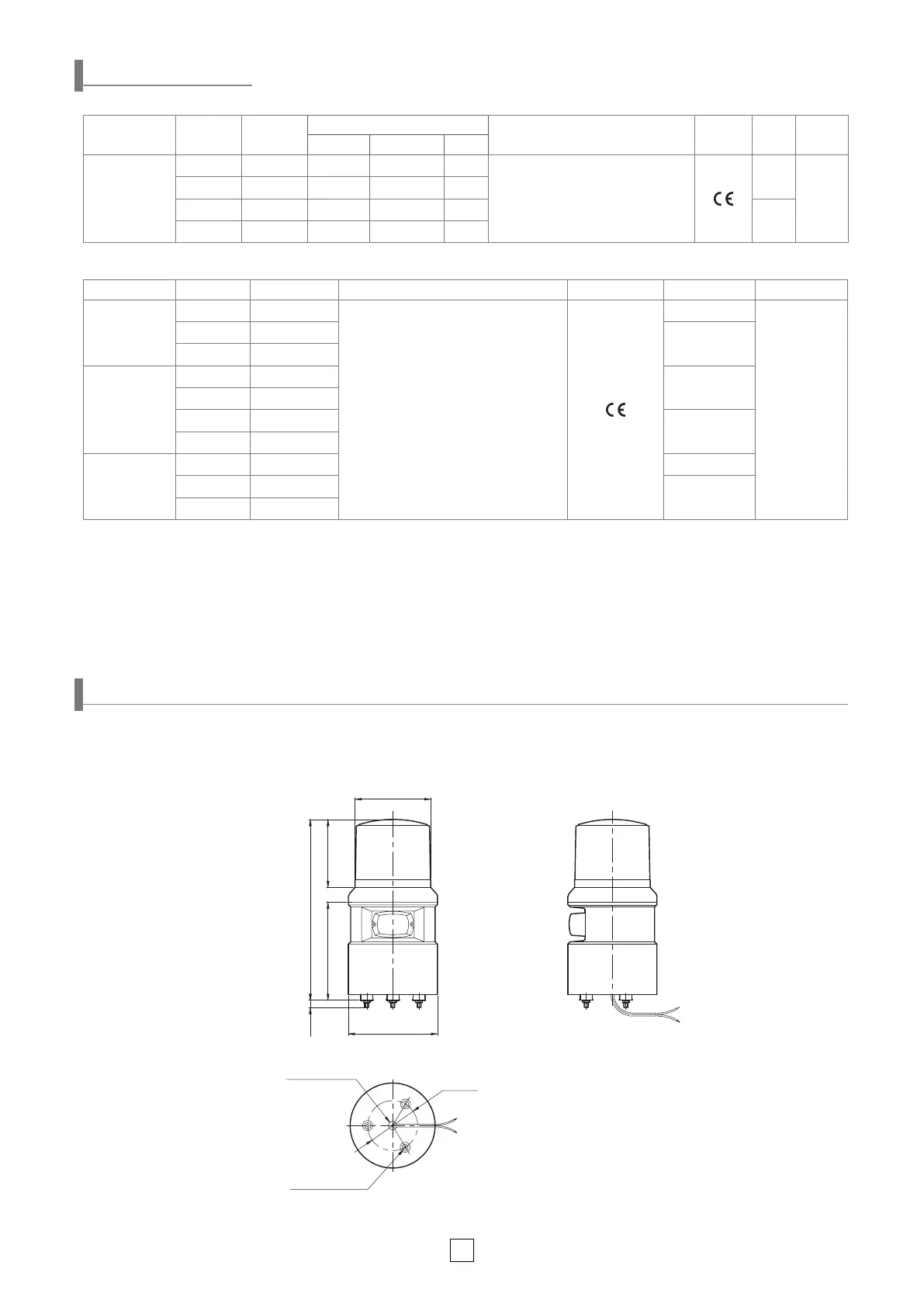

Qlight S100D Series - Specifications; Dimensions

2
Ø119
94112
226
15
Ø10
CABLE ENTRY
Ø101
360°/3-M5 BOLT
PCD70
S100D/ S100DL/ S100DLR/ S100DS
• Protection rating :IP54
• Ambient operating temperature : -20°C to +50°C (S100D, S100DLR)
-30°C to +50°C (S100DL, S100DS)
Model number Voltage Current
Bulb specications
Sound pattern and volume Certicates Weight Color
Volts/Watts Conguration Part#
S100D
DC12V 1.266A 12V10W T16x35 15S 9
• WS- 5 Warning Sounds : 105dB
• WM- 5 Melodies : 105B
• WA- 5 Alarms : 103dB
• WV- 5 Customizable sounds : 95dB
0.96Kg
R-Red
A-Amber
G-Green
B-Blue
DC24V 0.766A 24V10W T16x35 15S 10
AC110V 0.187A 12V10W T16x35 15S 9
1.38Kg
AC220V 0.094A 12V10W T16x35 15S 9
Model number Voltage Current Sound pattern and volume Certicates Weight Color
S100DL
DC12V~24V Max. 0.410A
• WS- 5 Warning Sounds : Max. 105dB
• WM- 5 Melodies : Max.105B
• WA- 5 Alarms : Max.103dB
• WV- 5 Customizable sounds : Max.95dB
0.89Kg
R-Red
A-Amber
G-Green
B-Blue
AC110V 0.115A
1.27Kg
AC220V 0.060A
S100DLR
DC12V 0.483A
0.95Kg
DC24V 0.327A
AC110V 0.120A
1.16Kg
AC220V 0.060A
S100DS
DC12V~24V Max. 1.330A 0.76Kg
AC110V 0.230A
1.21Kg
AC220V 0.155A
※
CE compliant : DC24V
※
CE compliant : DC24V
Dimensions
(Units : mm)
Specications
