QNAP QSW-1208-8C User Manual

7

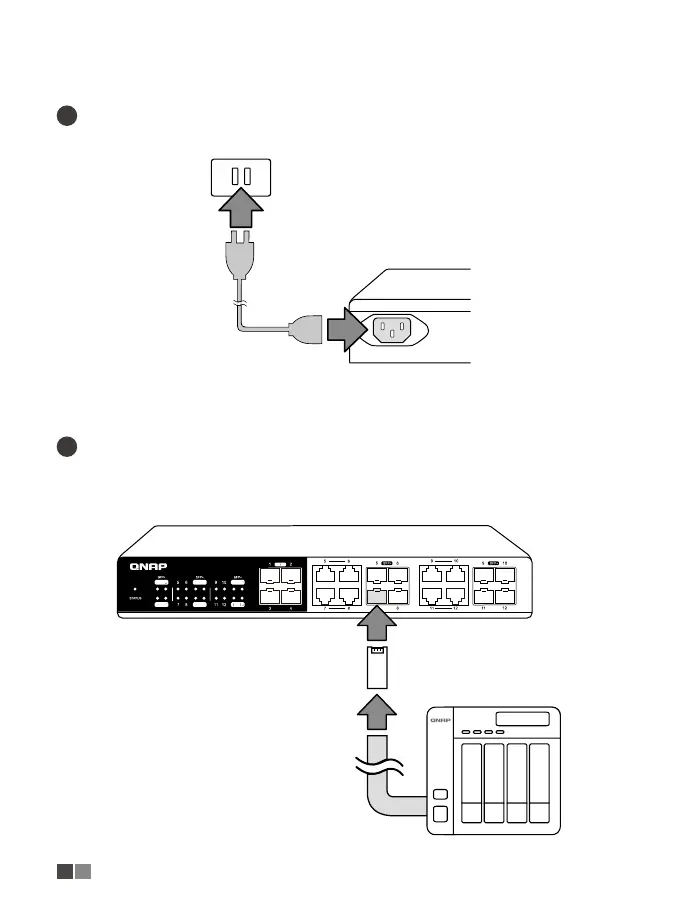

Connecting Power
Connecting SFP+
Connect the power cord to the power port of the QSwitch.
Connect the other end of the power cord to a power outlet.
Plug a compatible ber module into any SFP+ port of the QSwitch.
Connect an optical ber cable to the ber module. Then connect the other end of the cable to another
ber device.
3
4
1
2
1
2

QNAP QSW-1208-8C Specifications

General

Combo SFP ports quantity	8
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports type	No
Basic switching RJ-45 Ethernet ports quantity	0
Switching optical modules type	-
Fiber ethernet cabling technology	10GBASE-LRM, 1000BASE‑LX, 1000BASE‑SX
10G support	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX, 1000BASE-T
Certification	CE, FCC, VCCI, BSMI RCM, CCC
Product color	Black
LED indicators	Activity, Link, Power, Speed, Status
Number of fans	2 fan(s)
Electromagnetic compatibility	CLASS A, UL62368
Throughput	120 Gbit/s
Jumbo frames	9000
MAC address table	32000 entries
Power source	AC
Output current	2.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Noise level	18.7 dB
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Package weight	2200 g
Switch type	Unmanaged
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	233 mm
Width	285 mm
Height	43 mm
Weight	2150 g
