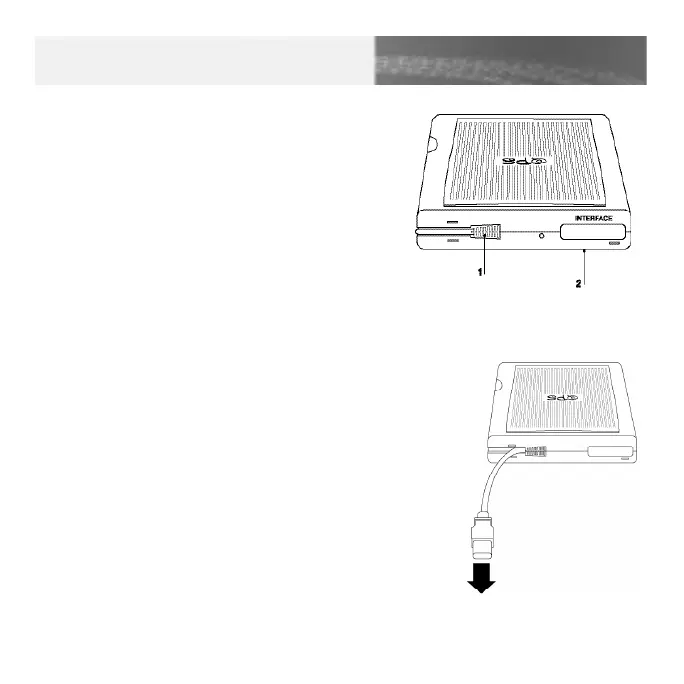

REAR VIEW
1.USB Interface cable
Connects the end of the cable to host computer’s
USB interface port.
2. Expansion Connector
This is for future use and is not to be used at
this time.
C O N N E CTING VIEW
Note: You can connect the SuperDisk drive while the
host computer power is on (Hot-Plug).When hot-plugging,
the host PC automatically recognizes the SuperDisk device
if the SuperDisk device driver is already installed into the PC.
The AC Adapter for this SuperDisk must be satisfied the
below requirements.
1.The AC adapter has been certified to conform to the
requirements of the relevant regulations.
2. The AC adapter output is supplied through SELV
(Safety Extra Low Voltage) circuit and Limited
Current circuit.
3. The AC adapter output voltage and current value
are the prescribed one.
5
PA RTS AND FUNCT I O N S
To USB or Connecting Port
Rear side of the drive unit
USB Interface Cable
