QRP Labs QMX Assembly Manual

2.8 Install BS170 PA transistors
Install the BS170 transistors in the positions shown, with their flat faces flush against the PCB.
Use the 12mm M3 bolt, washer and nut to firmly press the transistor faces against the PCB, as
shown.

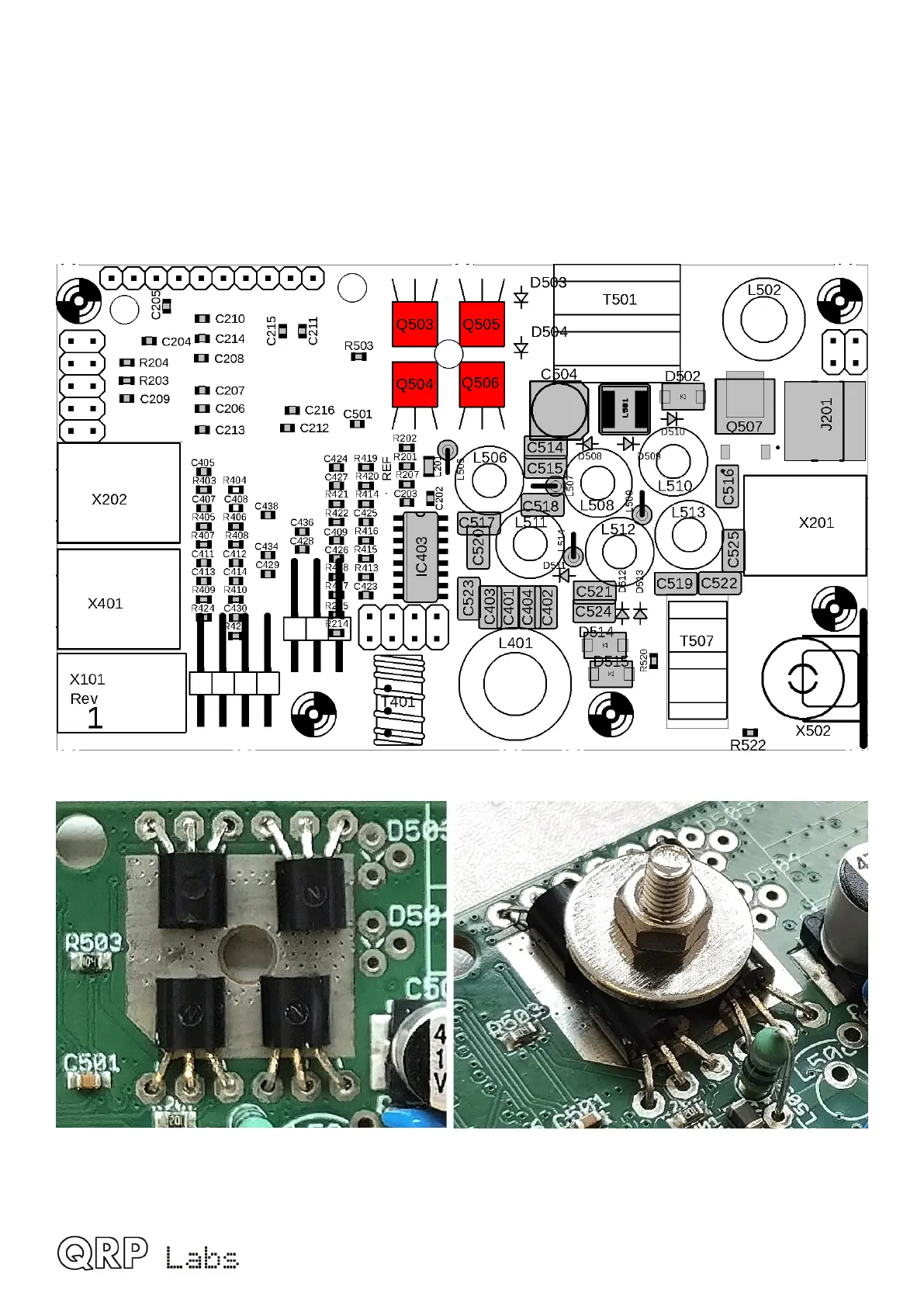

Refer to the diagram and photographs below.
QMX assembly Rev 1.00e 26
