设置变压器分接开关

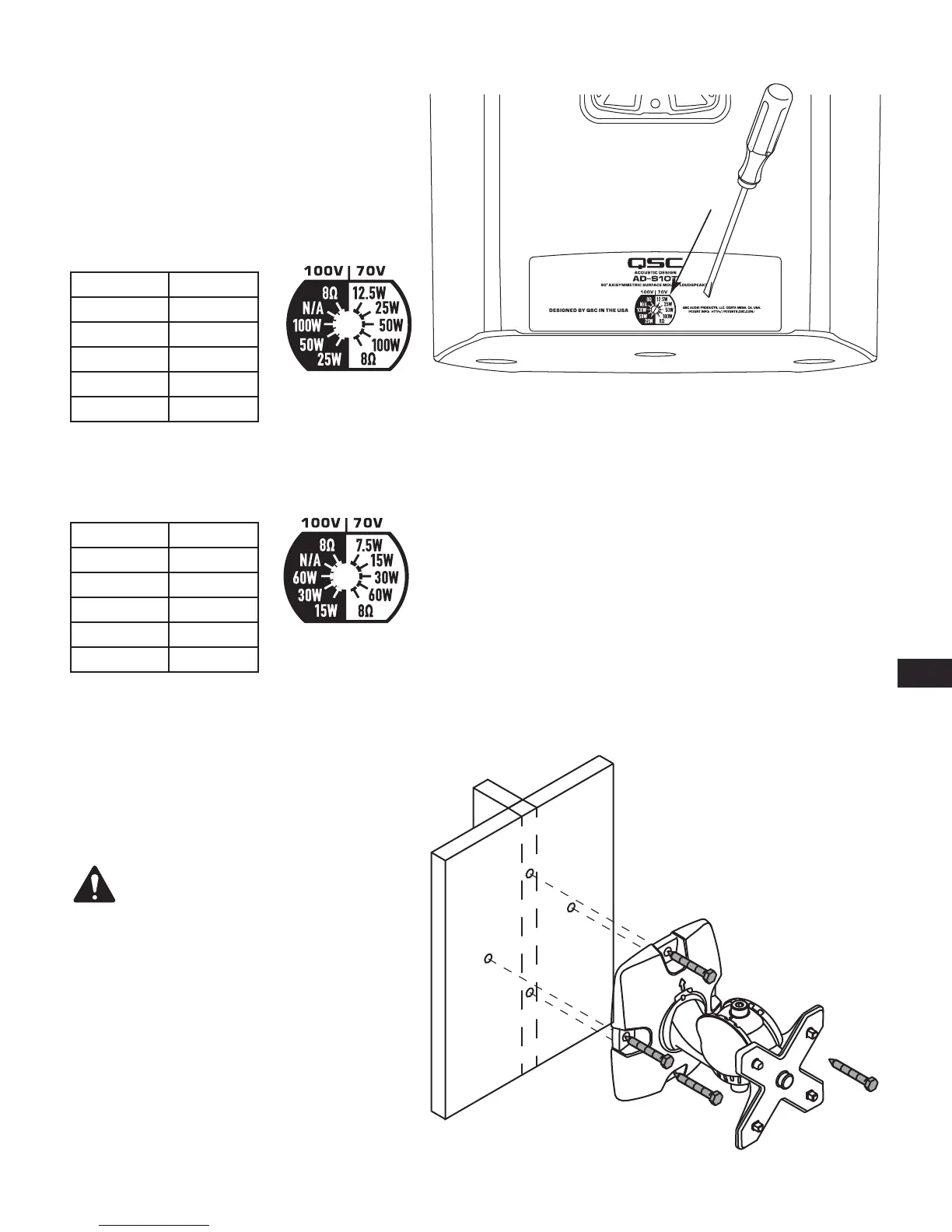

请参阅图1。

1.将4mm的平头螺丝刀插入变压器分接口，

从插槽处进刀。

2.顺时针满旋时，变压器为8Ω旁路。

AD-S10T

AD-S8T

安装扬声器

安装X-Mount™支架

请参阅图4。

警告！

按照地方建筑法规和条例安装

系统。雇用持有许可证的承包商或专业

工程师。QSCAudioProducts不对任

何支架或扬声器安装疏忽所造成的损坏

负责。

1.安装到可支撑扬声器重量的表面。

—图1—

4mm

100伏 70伏

8Ω 8Ω

不适用 100W

100W 50W

50W 25W

25W 12.5W

—表1—

—图2—

100伏 70伏

8Ω 8Ω

不适用 60W

60W 30W

30W 15W

15W 7.5W

—表2—

—图3—

—图4—
