QSC BASIS 914lz Hardware Manual

8

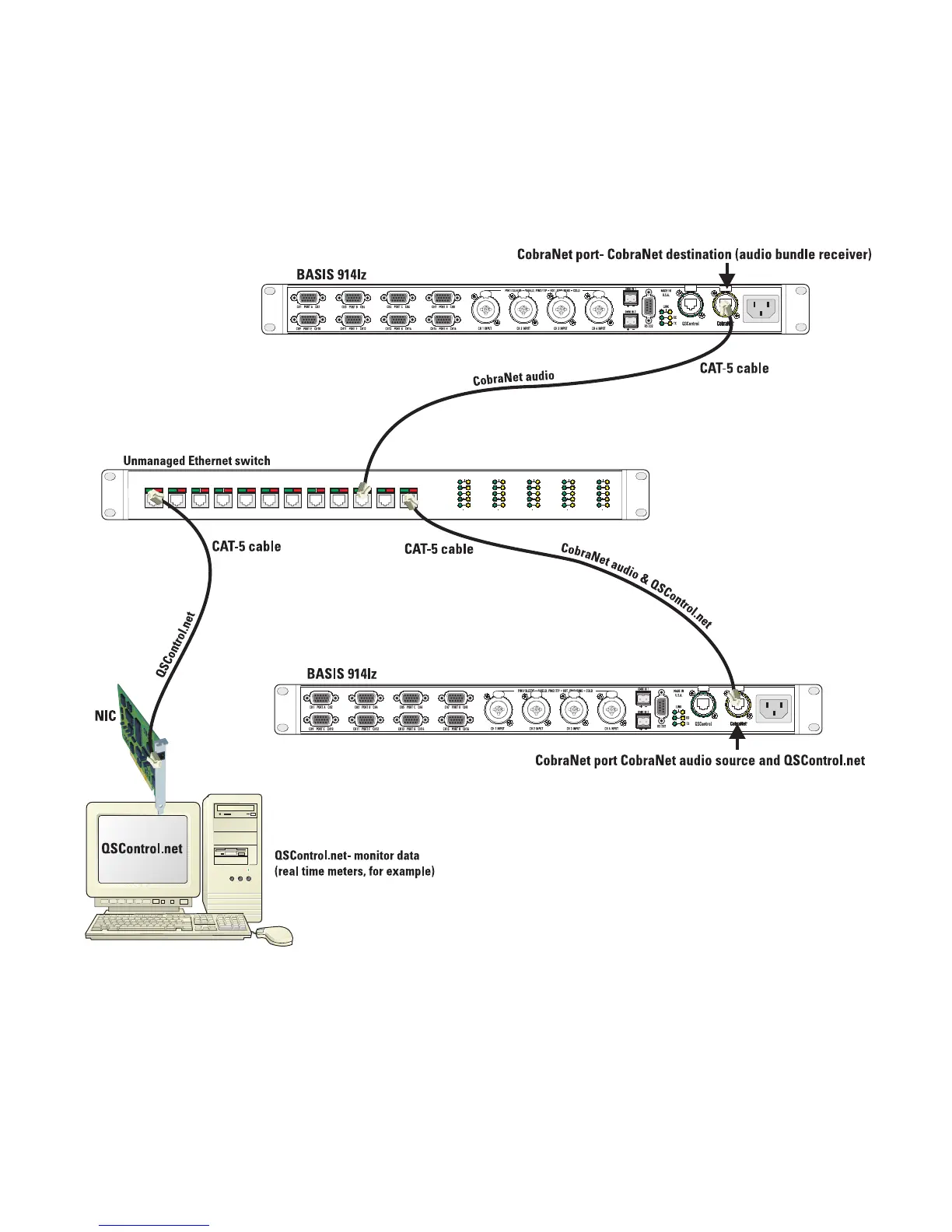

Example #3 - Single Wire Interface:
Here all QSControl.net and CobraNet traffic shares the same single CAT-5 cable between the BASIS 914lz and an unmanaged Ethernet
switch. The QSControl.net system manages traffic flow efficiently and reliably so that all audio and control data is delivered to its
appropriate destination anywhere on the network. Though the example shows only two BASIS 914lz units, as many devices may be
connected as there are available switch ports. All BASIS units will be able to communicate simultaneously with the computer. All will
have CobraNet audio. Switches can be connected to other switches to build larger networks; all of the normal networking principles
apply. (Note: there must be at least two CobraNet devices online for any data - audio or control - to come out of the CobraNet port.)

QSC BASIS 914lz Specifications

Performance

dynamic range unweighted	> 112 dB
dynamic range A weighted	> 115 dB
distortion	< 0.009% THD+N
crosstalk inter-channel maximum	> 75 dB
crosstalk inter-channel typical	> 90 dB
crosstalk intra-channel maximum	> 85 dB
crosstalk intra-channel typical	> 100 dB
frequency response maximum	+/- 0.5 dB
frequency response typical	+/- 0.2 dB
audio converters	24 bit, 48 kHz

Inputs/Outputs

program inputs	4 inputs
input impedance nominal balanced	10k ohms
input impedance nominal unbalanced	10k ohms
program outputs	16 outputs
maximum qualified length	328 ft (100 m) using QSC DP cable only

Control Inputs/Outputs

omni inputs	2 discrete inputs
normal operating range	0-5 V nominally
voltage tolerance	+/- 48 V
