QSC PLD4.5

9
TD-000351-00-E
EN

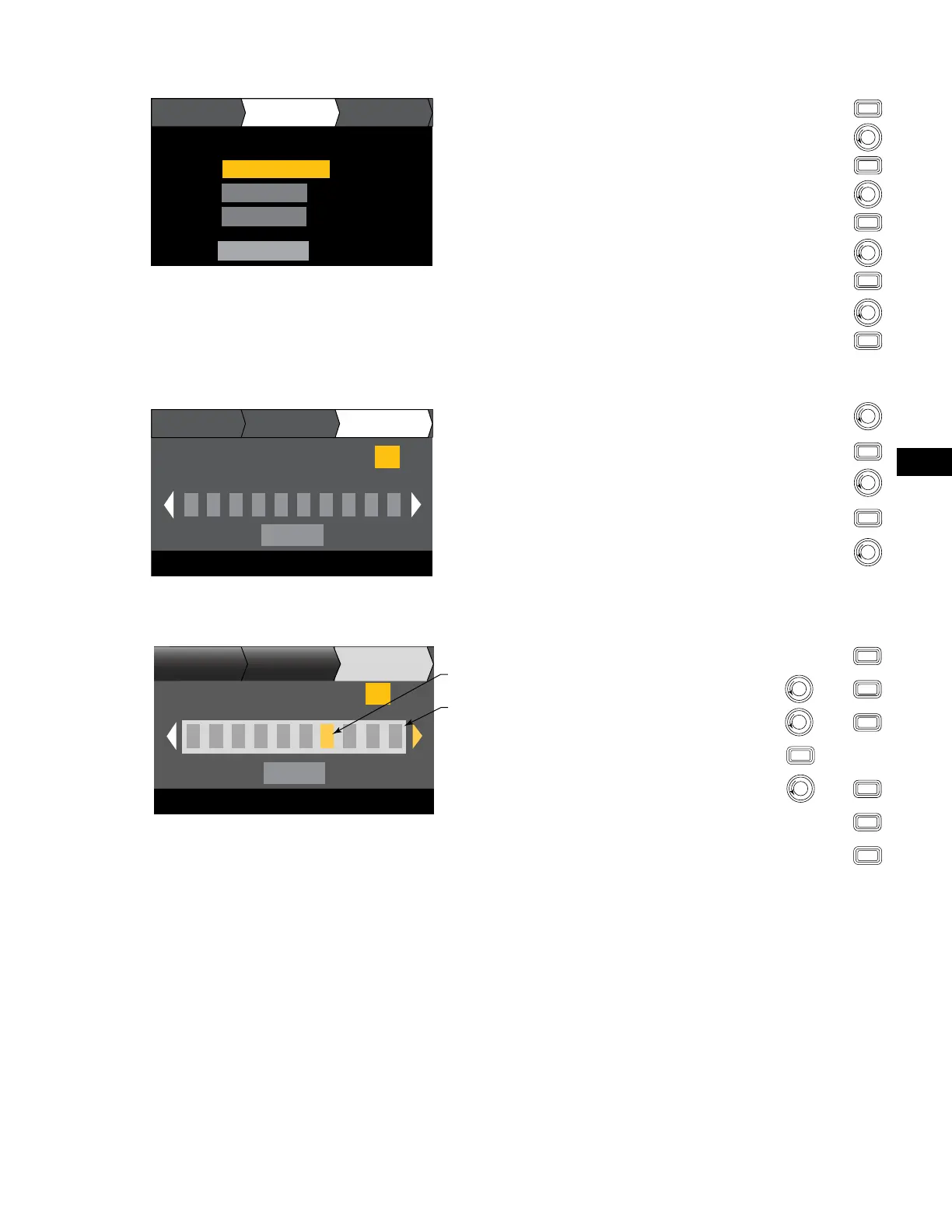

STEP 4 — Select Speaker Type for Channel
OUTPUTS SPEAKERS SAVE
Output:
A
ASSIGN
Full Range
Speaker:
Default
Band:
QSC AP-5152
Filter:
To edit speaker, press
Scroll to select a speaker model
To confirm, press
Scroll to select (Band, Filter)
To edit, press
Turn to adjust parameter
To confirm, press
Scroll to select ASSIGN
To assign the speaker to the output channel, press
Select the loudspeaker model
first; it will determine the band
and filter selections offered.
When you have finished
assigning loudspeakers, scroll
to the SAVE tab.
STEP 5 — Select User Preset Number
Edit preset number or press EXIT
User Preset Number:
21
SAVE
New Preset Name
C o n f i g - A
OUTPUTS SPEAKERS SAVE
Scroll to the SAVE screen
To edit User Preset Number, press
Turn to adjust parameter
To confirm, press
Scroll to the New Preset Name
ENTER
ENTER
STEP 6 — Assign New User Preset Name
Press ENTER to edit name
SAVE
M y S p k r
SAVE
SPEAKERSABOUT
New Preset Name
User Preset Number:
21
Character being edited
Indicates “Speaker
Profile Name”
is selected
Up to 21 characters
A - Z / a - z / 0 - 9 /
_ / - / space
To add speaker Preset Name, press
Scroll to desired letter position press
Turn to select desired character press
When finished with lettering, press twice
When finished, scroll to SAVE press
To RECALL preset, press
To not RECALL preset, press
ENTER
ENTER
ENTER
EXIT
ENTER
ENTER
EXIT
ENTER
ENTER
ENTER
ENTER
ENTER
