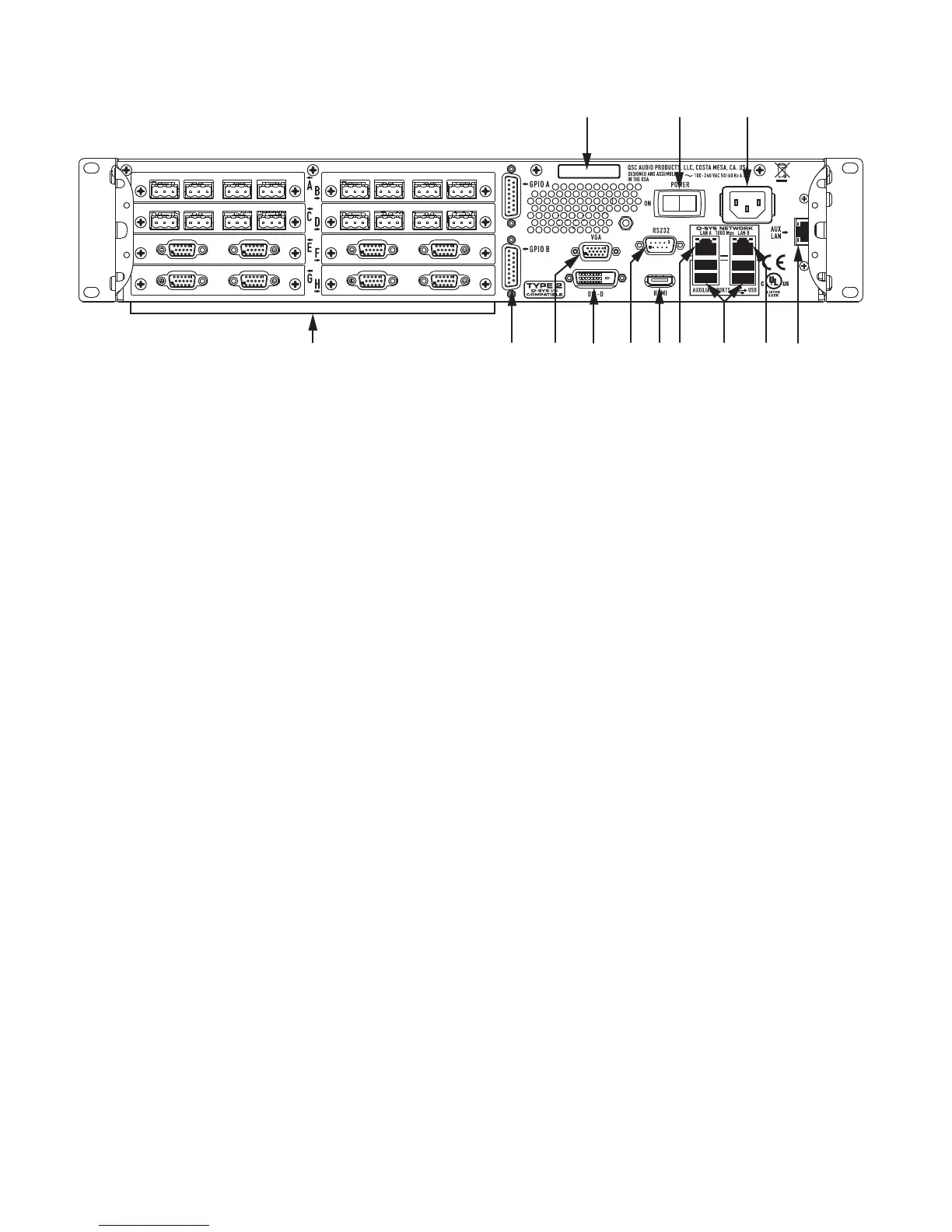

Rear Panel Core 500i
1. Eight Audio I/O Bays — accepts Q-Sys Type 2 audio I/O cards
2. GPIO A and GPIO B Female DA-15 connectors for Q-Sys control I/O
3. Video Out — HD-15 female connector For future use
4. Video Out — DVI female connector For future use
5. RS-232 — DE-9 male connector for serial communications
6. Video Out — HDMI For future use
7. Q-LAN Network Port, LAN A — 1000 Mbps only, primary connection to
Q-Sys gigabit network
8. Four Auxiliary Ports— USB host connectors
9. Q-LAN Network Port, LAN B — 1000 Mbps only, backup connection to
Q-Sys gigabit network
10. AUX LAN Network Port
11. AC Main Inlet — IEC male connector with cord retainer
12. Power Switch
13. Serial Number
— Figure 9 —
2
3
4
5
7
8
9
1
6
10
11
1213
