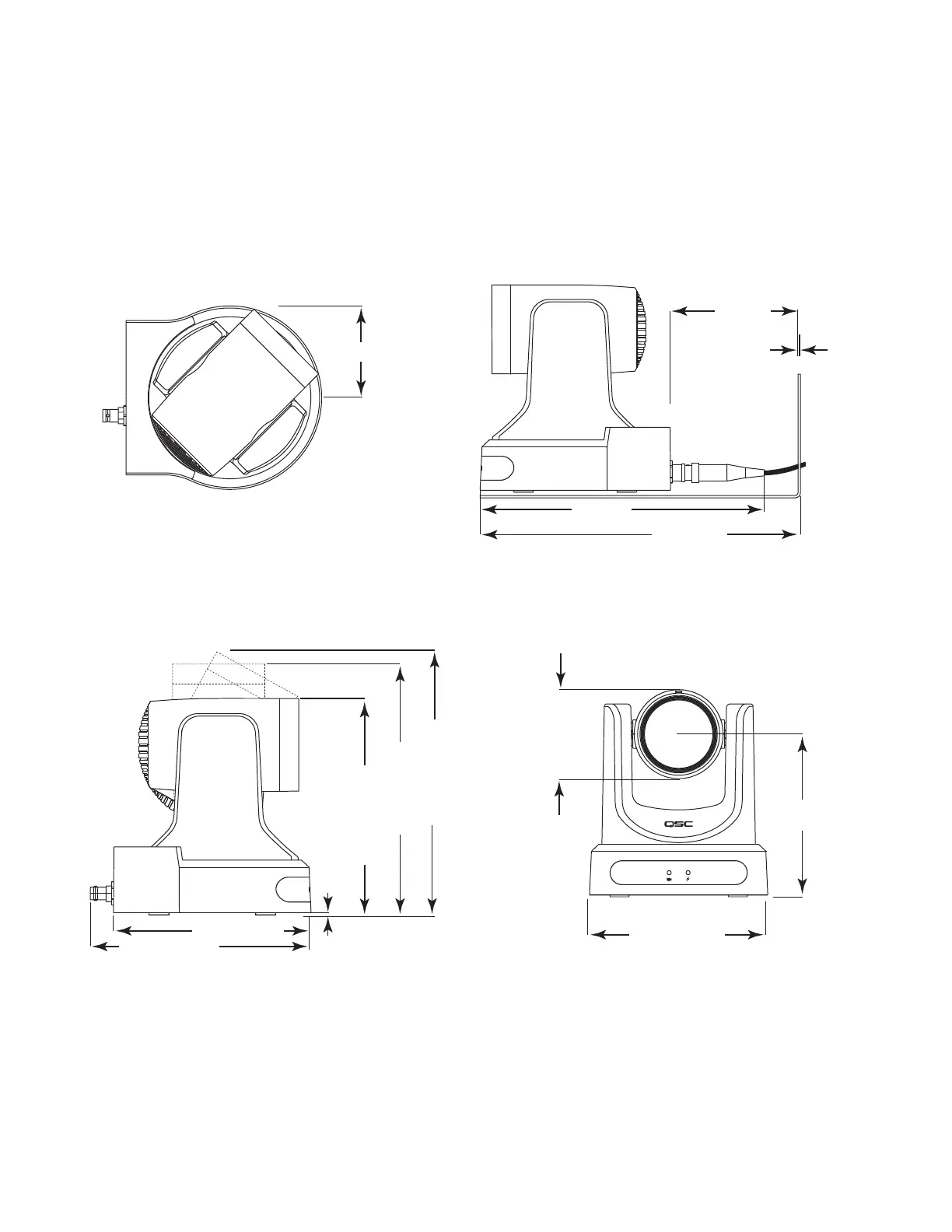

Dimension Drawings
NC-12x80 & NC-20x60 PTZ
3.25 mm
(0.13 in.)
220 mm
(8.7 in.)
244 mm
(9.6 in.)
90 mm
(3.5 in.)
151 mm (6.0 in.)
170 mm (6.7 in.)
2 mm
(0.08 in.)
142 mm (5.6 in.)
71 mm (2.8 in.)
129 mm (5.0 in.)
165 mm (6.5 in.)
191 mm (7.6 in.)
201 mm (7.95 in.)
PTZ With Lens Cap
72 mm (2.8 in.)
