QSC TouchMix-16 Self-Guided Tour

TouchMix Self-Guided Tour 9
You can also set the mixer to Simple or Advanced
Mode globally.

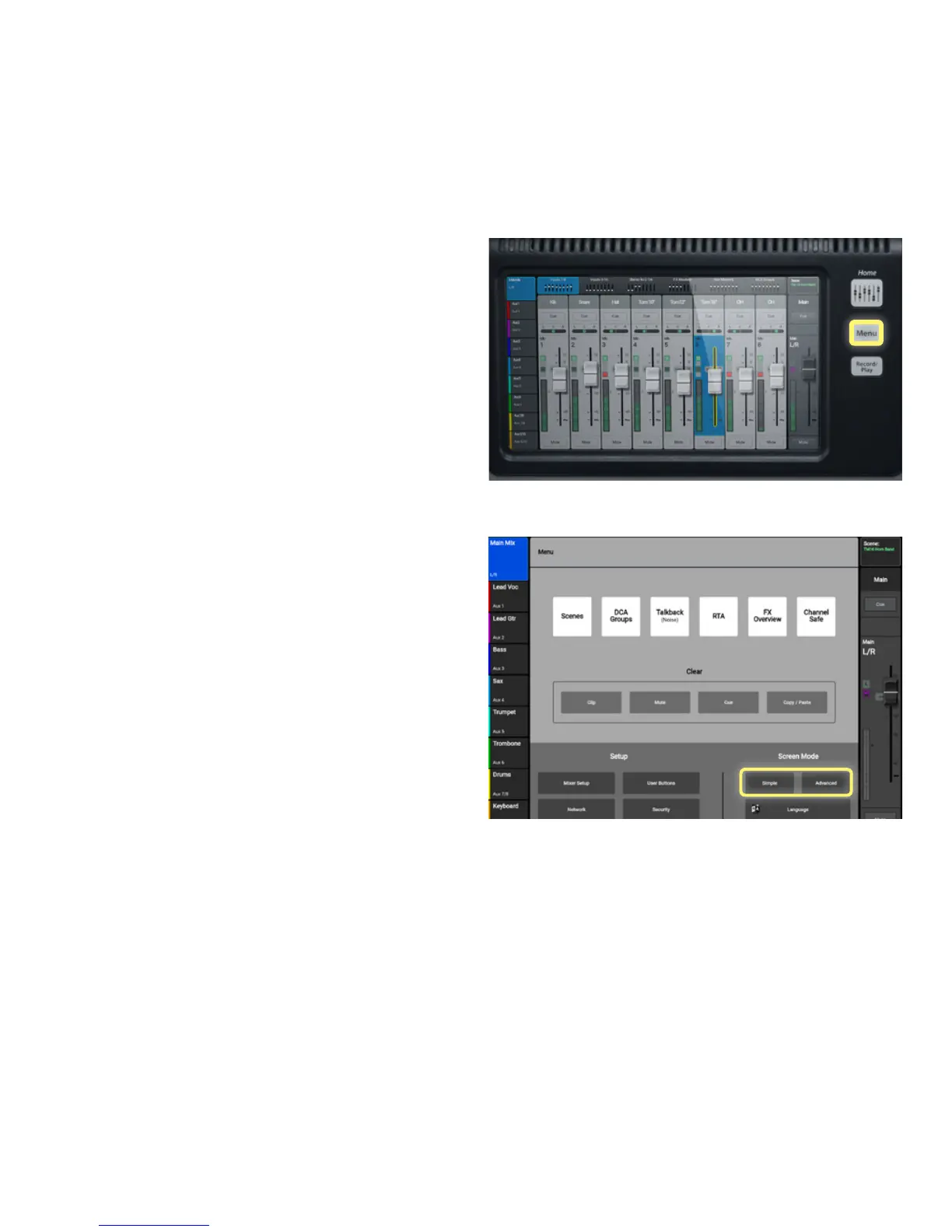

• Press “Menu” button (Image 2.4).
• “Simple” or “Advanced” (Image 2.5) in the
lower right-hand portion of the screen, next to
the Master Encoder (Image 1.9).
• Next, you will be asked: “Are you sure that
you want to set all screens to ‘Simple’ or
‘Advanced’ edit mode?”
• Select “Yes” on this screen.
A video overview of Simple and Advanced Modes
is also available for you to enjoy online at:
qsctraining.com/touchmix
2. ADVANCED & SIMPLE MODE (Cont’d)
Image 2.4
Image 2.5

QSC TouchMix-16 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
XLR out	8
DJ mixer	-
Audio input	4x XLR/TRS combo, 12x XLR, 2x TRS
Product color	Silver

Weight and Dimensions

Depth	291 mm
Width	360 mm
Height	58 mm
Weight	2980 g
