QSC TouchMix-16 Self-Guided Tour

TouchMix Self-Guided Tour 2
1. NAVIGATION
Let’s go through some basic controls
and navigation.
First you’ll need to know how to power Up/Down
the mixer:

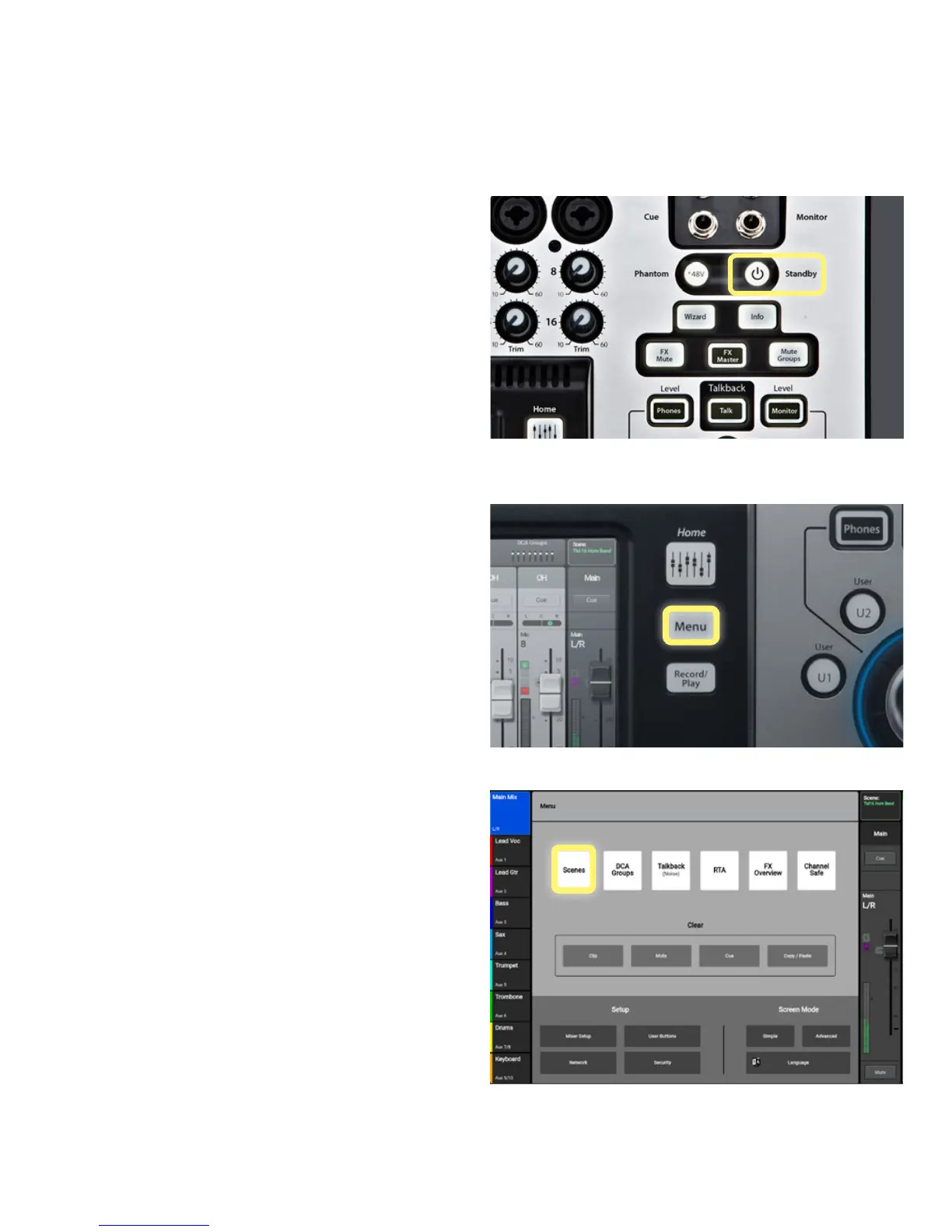

• Press the Power/Standby button on the
right-hand side of the mixer to power on the
mixer (Image 1.1).
• When the Power/Standby button is pressed to
power down, a dialogue box will appear on the
screen asking if you’d like to power down the
mixer.
ALWAYS power the mixer down before
unplugging the power.
Now let’s start our tour by resetting the mixer.
To Recall the Default Scene:
• Press the “Menu” (Image 1.2) button.
• Select “Scenes” from the main Menu Screen
(Image 1.3).
Image 1.2
Image 1.3
Image 1.1

QSC TouchMix-16 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
XLR out	8
DJ mixer	-
Audio input	4x XLR/TRS combo, 12x XLR, 2x TRS
Product color	Silver

Weight and Dimensions

Depth	291 mm
Width	360 mm
Height	58 mm
Weight	2980 g
